Physical Installation 1 - 14

Removing/Attaching the Digital Operator and Front Cover

Models CIMR-F7U20P4 thru 2018 and 40P4 thru 4018

For Models CIMR-F7U2018/4018 and smaller, remove the terminal cover and then use the following procedures to remove
the Digital Operator and front cover.

Removing the Digital Operator

Press on the side of the Digital Operator in the direction of arrow 1 to unlock, then lift the Digital Operator in the direction of
arrow 2 to remove it as shown in Fig 1.11.

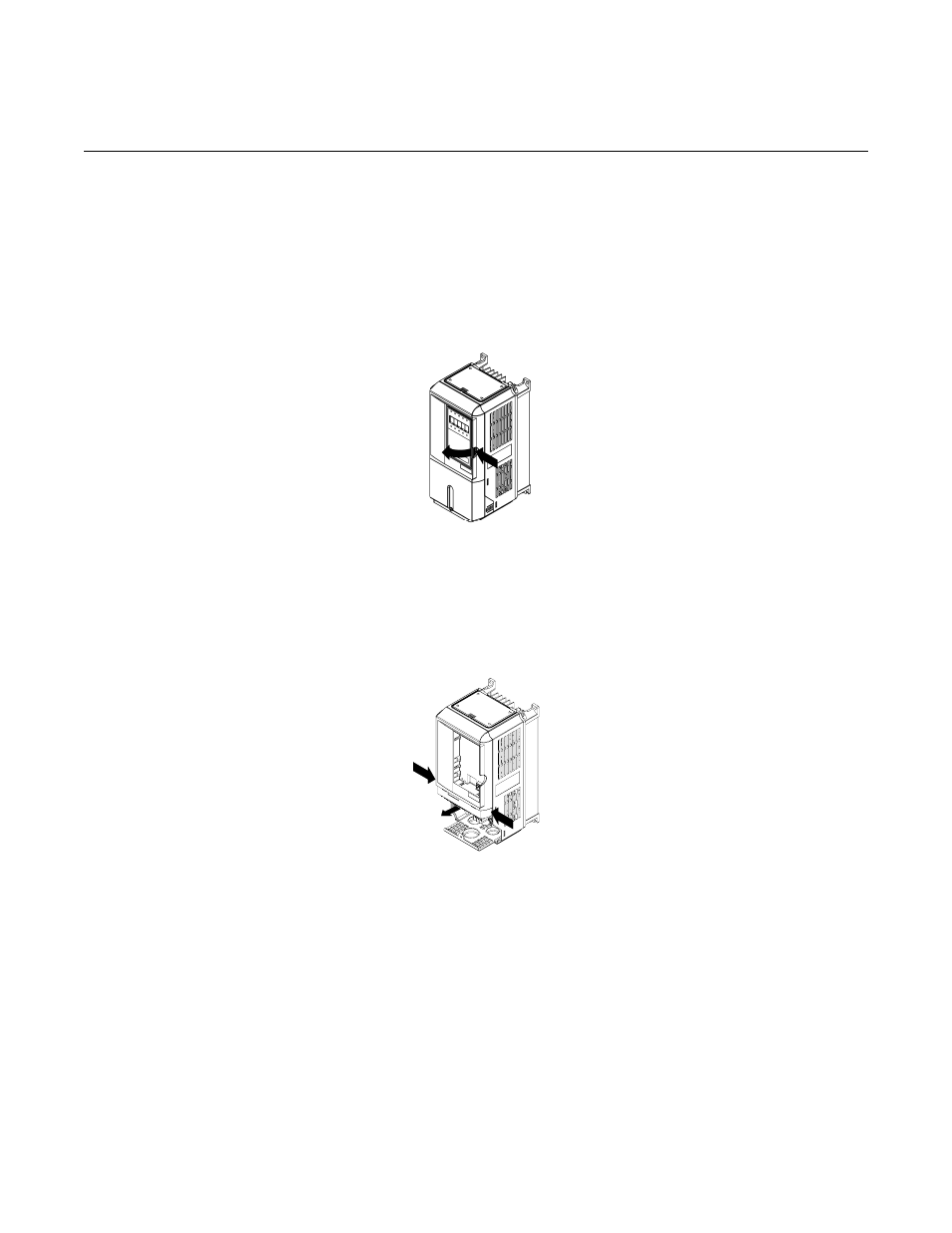

Fig 1.11 Removing the Digital Operator

Removing the Front Cover

Press the left and right sides of the front cover in the direction of arrows 1 and lift the bottom of cover in the direction of arrow
2 to remove it as shown in Fig 1.12.

Fig 1.12 Removing the Front Cover

Mounting the Front Cover

Mount the front cover to the Drive by performing the steps to remove the front cover in reverse order.

1. Do not mount the front cover with the Digital Operator attached as this may cause the Digital Operator to malfunction due

to improper mating with its connector.

2. Insert the tab of the upper part of the front cover into the groove of the Drive and press the lower part of the front cover onto

the Drive until it snaps into place.
