Laser power supply – laser beam on state, Laser power supply – laser beam on state -10 – Hypertherm HyIntensity Fiber Laser Rev.3 User Manual
Page 118
setup and OperatiOn
3-10
Hypertherm Fiber Laser
Instruction Manual – 807090 Revision 3

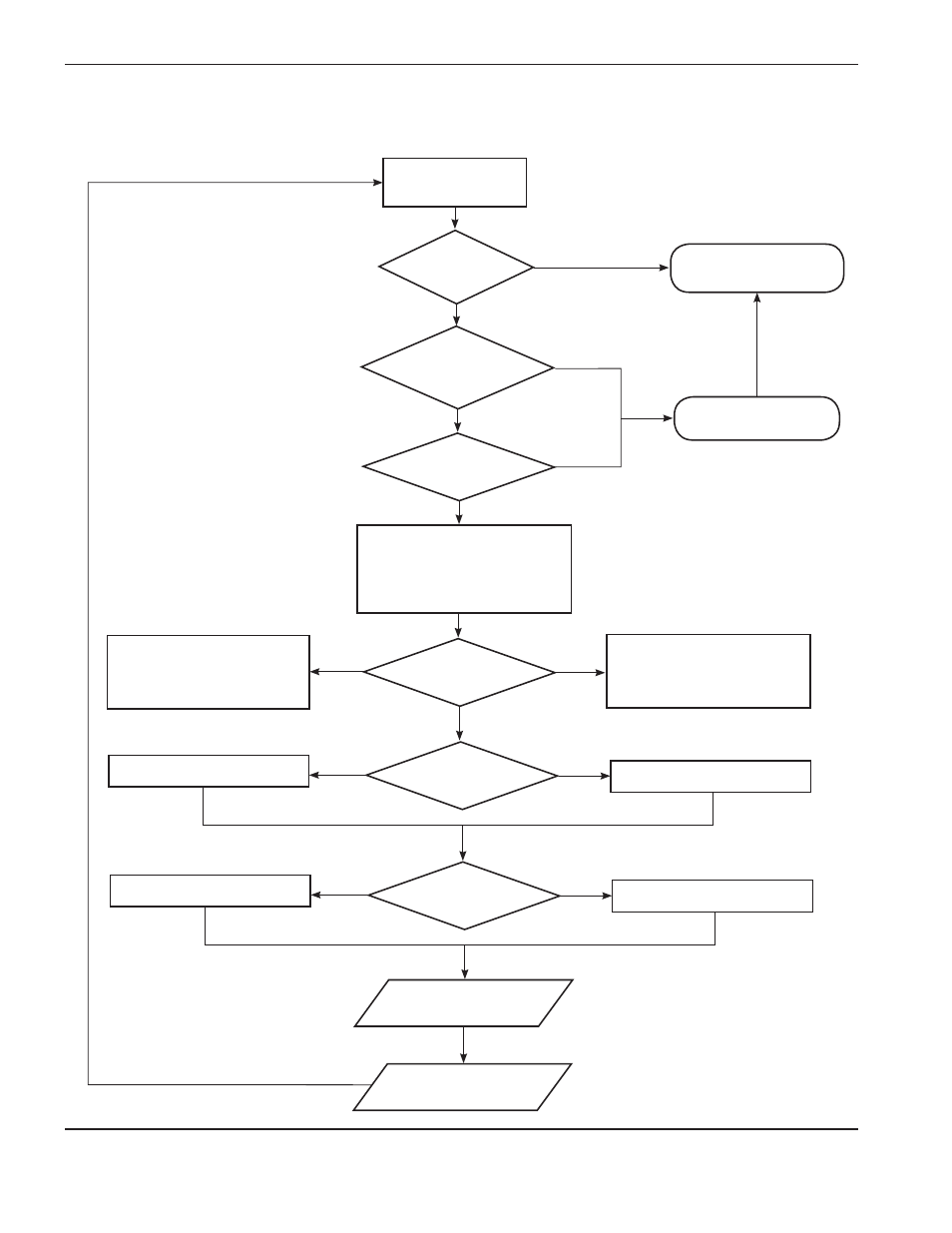

Laser power supply – laser beam ON state
Laser beam ON
Digital beam
input
Gas select logic
Update CHS
Off
Pulse laser
Output watts @ laser power
Duty cycle @ corner power
Exit to Laser beam
OFF state
Are the
hardware interlocks
OK?
No
No
Faulted state
Is the system
OK?
Read process parameters
Laser power
Corner power
Assist gas pressure
Corner
power enable
input
Output watts @ laser power
Side jet
enable input
Turn OFF side jet
Turn ON side jet
Pointing
laser enable input
On
Off
On
Turn OFF pointing laser
Turn ON pointing laser
Off
On
Yes
Yes
Off
