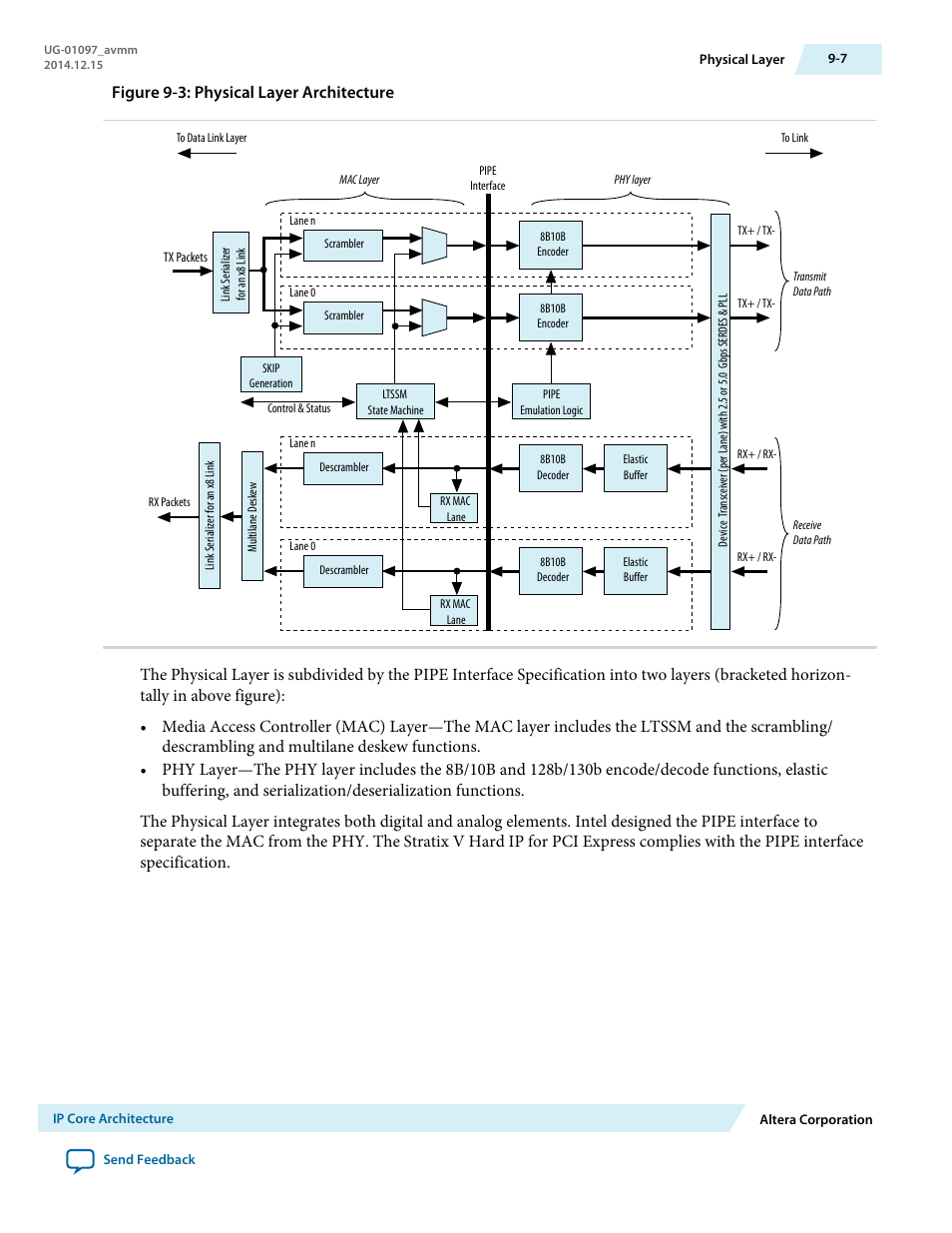

Figure 9-3: physical layer architecture – Altera Stratix V Avalon-MM Interface for PCIe Solutions User Manual
Page 131
