5-47
■
Alarm OR, special OFF setup, and delay time unit
Alarm OR, special OFF setup, and delay time unit accompanying with the
operation type can be set.
• When the internal event configuration 1 operation type is set at [0: No event], the
internal event configuration 3 (alarm OR, special OFF setup, and delay time unit)
is not displayed.
The following shows the relationship among alarm OR setting, alarm present/not
present, and internal event ON/OFF:
Chapter 5. DETAILED DESCRIPTION OF EACH FUNCTION

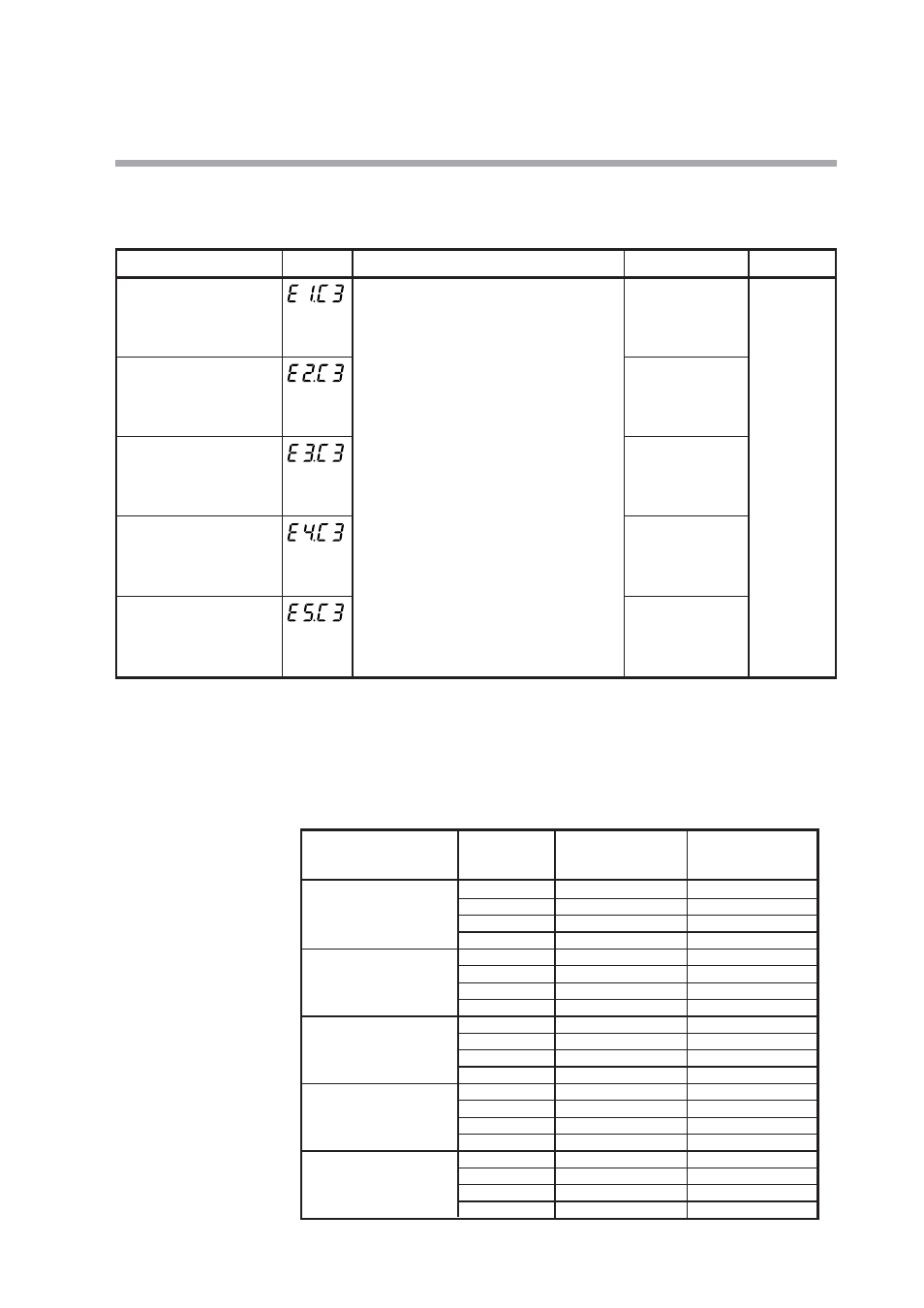

Item (Setting display/bank)
Display
Contents
Initial value
User level
Internal Event 1
Configuration 3 Operation
type
(Setup setting/Event
Configuration bank)
The digits are called 1st digit, 2nd digit, 3rd
digit, and 4th digit from the right end.
1st digit: Alarm OR setup
0:
None
1:
Alarm direct + OR operation
2:
Alarm direct + AND operation
3:
Alarm reverse + OR operation
4:
Alarm reverse + AND operation
2nd digit: Special OFF setup
0:
As usual.
1:
When EV main setting is “0”, the
event is set to “OFF”.
3rd digit: Delay time unit setup
0:
0.1s
1:
1s
2:
1 min.
4th digit: Undefined.
0:
Undefined.
0000
High function
0000
Internal Event 2
Configuration 3 Operation
type
(Setup setting/Event
Configuration bank)
0000
Internal Event 3
Configuration 3 Operation
type
(Setup setting/Event
Configuration bank)
0000
Internal Event 4
Configuration 3 Operation
type
(Setup setting/Event
Configuration bank)
0000
Internal Event 5
Configuration 3 Operation
type
(Setup setting/Event
Configuration bank)
None
Not present
OFF
OFF
Not present
ON
ON
Present.
OFF
OFF
Present.
ON
ON
Alarm direct +
Not present
OFF
OFF
OR operation
Not present
ON
ON
Present.
OFF
ON
Present.
ON
ON
Alarm direct +
Not present
OFF
OFF
AND operation
Not present
ON
OFF
Present.
OFF
OFF
Present.
ON
ON
Alarm reverse +
Not present
OFF
ON
OR operation
Not present
ON
ON
Present.
OFF
OFF
Present.
ON
ON
Alarm reverse +
Not present
OFF
OFF
AND operation
Not present
ON
ON
Present.
OFF
OFF
Present.
ON
OFF
Alarm OR setting
Alarm (AL01 to
99) present/not
present
Internal event
ON/OFF status before
alarm OR process
Internal event
ON/OFF status after
alarm OR process
