Form I-ZQYRA P/N 260414R5, Page 5
5.0 Mounting
5.1 Weights

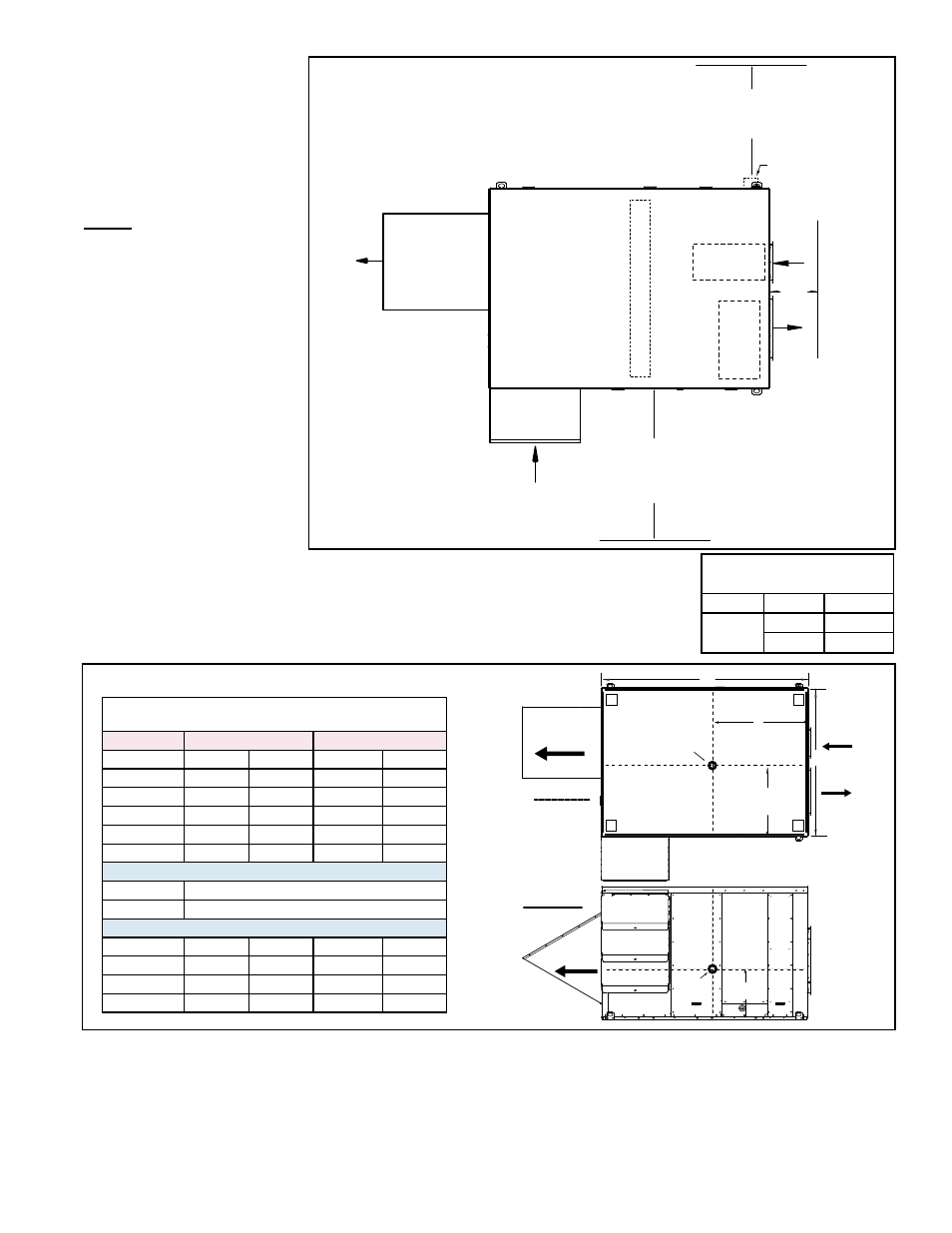

FIGURE 3 - Corner Weights and Center of Gravity
RETURN
AIR
DISCHARGE
AIR
C
L
w
CG
Y
X
D
A B
TOP VIEW
SIDE VIEW
INLET AIR
HOODS
EXHAUST
AIR
EXHAUST
AIR
Z
CG
INLET AIR
HOOD
Before installing, check the supporting structure to be
sure that it has sufficient load-bearing capacity to sup-
port the operating weight of the unit. Mounting is the
responsibility of the installer.
Corner weights are provided for lifting and operation.
4.2 Clearances
Unit Top -
Minimum
Clearance =
6” (15cm)
Inlet Air
4 ft (1.2M) -
Required to slide
out energy
recovery wheel.
3 ft (.9M) -
Required to the
disconnect switch.
Return Air
Supply
Air
12”
(30cm)
Energy Recovery Wheel
Exhaust
Air
Control Side
Disconnect
Switch,
Option BA6
FIGURE 2 - Minimum
Unit Clearances
Minimum Service
Clearances
NOTE: For indoor
installation, see
Paragraph 6.3 for
special ductwork
requirement.
5.2 Rigging and
Lifting
On each corner, the heavy gauge base of the ventilation unit has a lifting lug with a
1-1/2” diameter hole for rigging. When attaching rigging, insert a clevis in each lifting
lug. Use spreader bars in the rigging. Lift the unit straight up with vertical force.
Test lift the unit to be sure that it is secure. Adjust cables so that the unit will remain
horizontal throughout the lift. Lift slowly, following safe lifting procedures.
Rigging and lifting are the responsibility of the installer.
Approximate Corner Weights and
Center of Gravity Dimensions
ZQYRA Size 8 Size 12
Corner lbs (kg) lbs kg
A 210 (95) 239 (108)
B 197 (89) 233 (106)
C 219 (99) 262 (119)
D 232 (105) 269 (122)
Total 858 (389) 1003 (455)
Overall Dimensions
Length (L) 70-1/2” (1791mm)
Width (W) 50-3/8” (1278mm)
Center of Gravity Location
Dimension inches (mm) inches (mm)
X 26-1/2 (673) 26-11/16 (678)
Y 34-3/16 (868) 34-13/16 (884)
Z 16 (407) 18-13/16 (479)
Approximate Operating
Weight
“Z” Size 8 12
Weight
858 lbs 1003 lbs
389 kg
455 kg
