Numeric Mode
To view the map data in its most basic form, the numeric values can be displayed and edited in table form.
The highlighted green pointers to the right of the 2D map are the “Home” markers that indicates the value
closest to the current engine operating parameters.

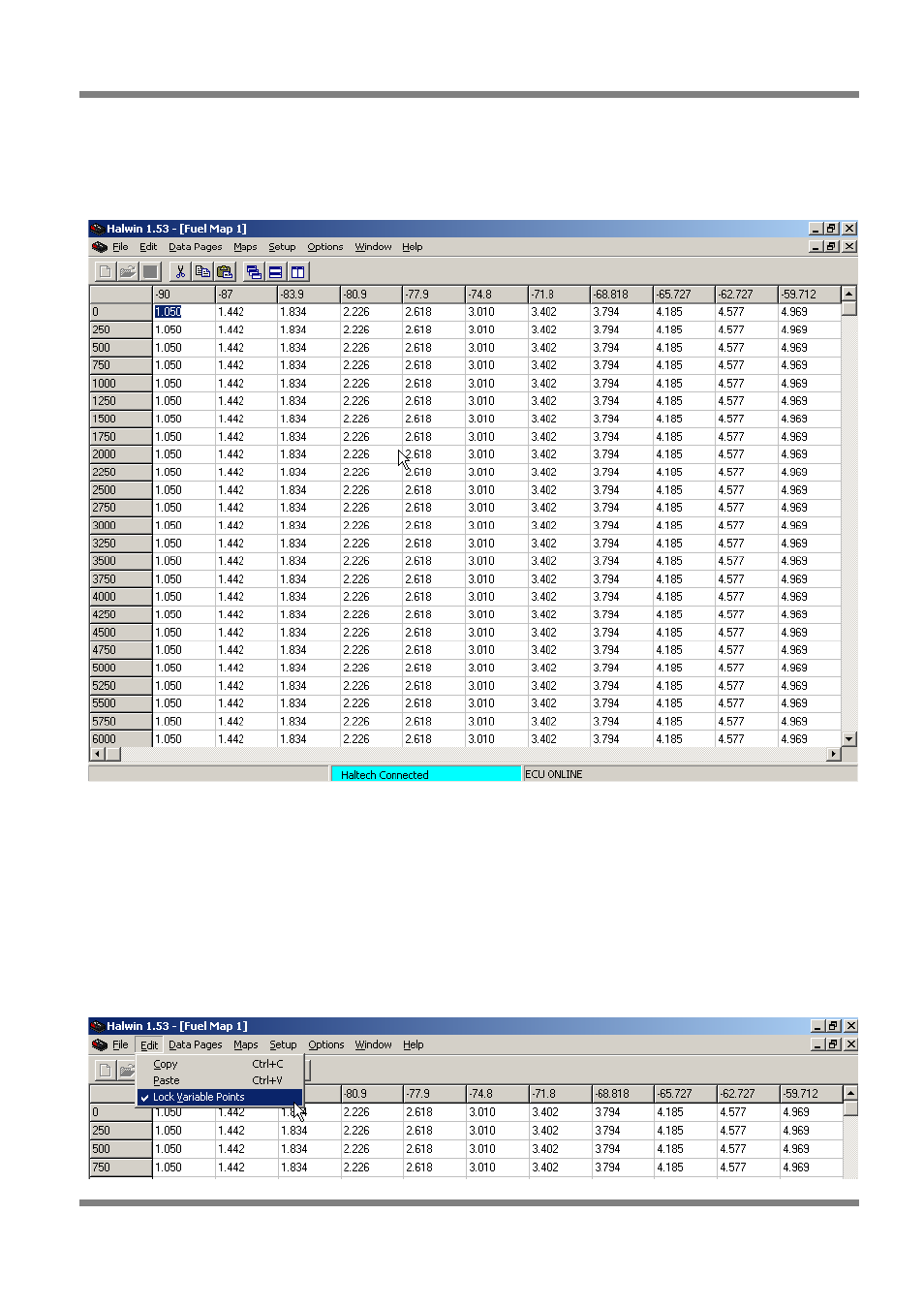

Figure 83 - Text View Maps
The values from this table can be copied and pasted into Microsoft Excel if required.
Variable Load and RPM Points
To modify the variable load and RPM values for the given bar or range, select your map and display in
Numeric Mode as described above. Edit from the menu bar and un-check the option Lock Variable Points.
This will unlock the first row and column to allow you to change the load and RPM at which the given bar
or range represents.By default the spacing for load values is evenly spaced load over 32 bars, for the
given 1 Bar, 2 Bar or 3 Bar sensor. The default spacing for RPM ranges is 500rpm over the 32 bars to
give ranges from 0 RPM to 15500 RPM. When modifying the variable load and range values, make sure
that all values are always ascending as you move across the bars, or down the ranges.
Figure 84 - Unlocking the load points
