Haltech E8 User Manual
Page 120
Haltech E11/E8 Instruction Manual

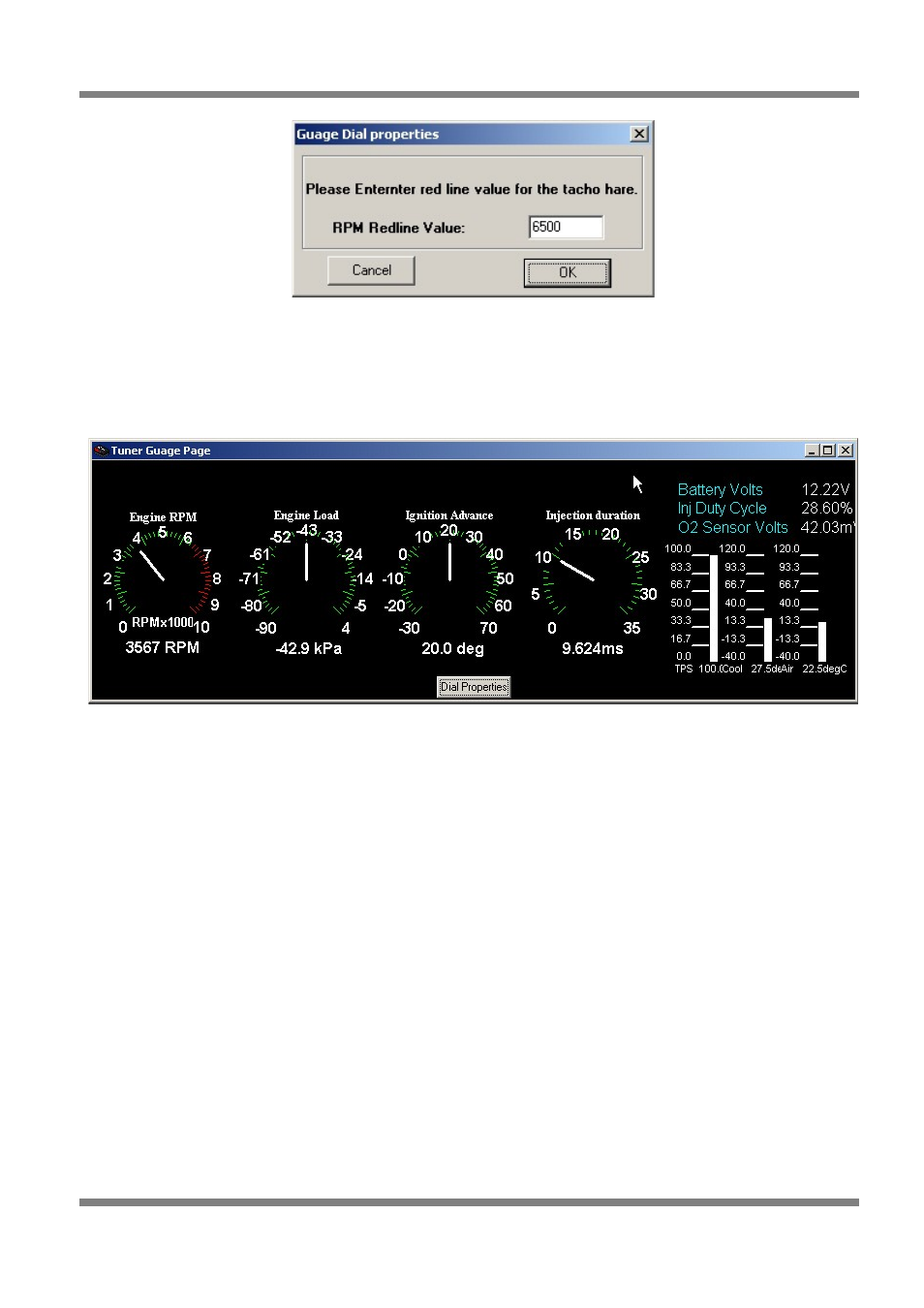

Figure 119 - RPM Guage Redline Value
The temperature bar graphs will also turn red at fixed temperatures.
When coolant temperature exceeds 100 degrees, the coolant temperature bar will turn red. When air
intake temperature exceeds 100 degrees, the air temperature bar graph will turn red.
Figure 120 - Tuner Guage Page
Engine Data
The Engine Data panel displays the engine running data in numeric form. You can open this page by
selecting it through the Page menu or by pressing ‘Ctrl-E’.
Page: 120
Copyright © Haltech 2008
