Haltech E8 User Manual
Page 136
Haltech E11/E8 Instruction Manual

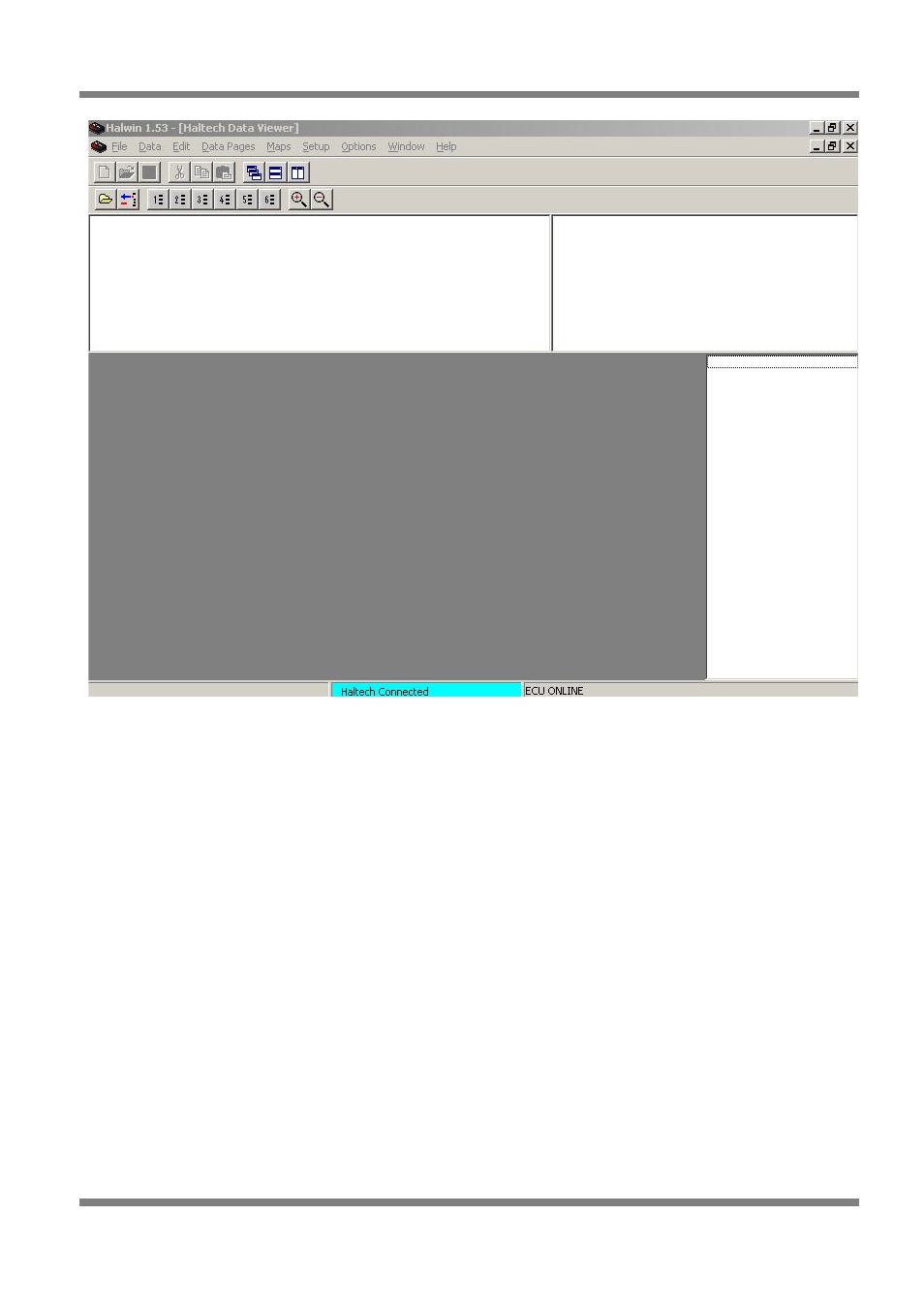

Figure 140 - Halwin Data Viewer
Alternatively, you can open the Haltech Data Viewer from the Options->Data Logging->View Data Log
menu. To open a Dataset the user can click on File->Open Data File or the user can click on the folder
button on the toolbar. This will open a dialog similar to Figure 4-24 where the user can select the
appropriate Dataset.
Once you have selected a Dataset and opened it, you will be presented with a window similar to that
shown below. The data viewer will display the first channel logged from the Dataset that you have opened.
Page: 136
Copyright © Haltech 2008
