Haltech E11/E8 Instruction Manual

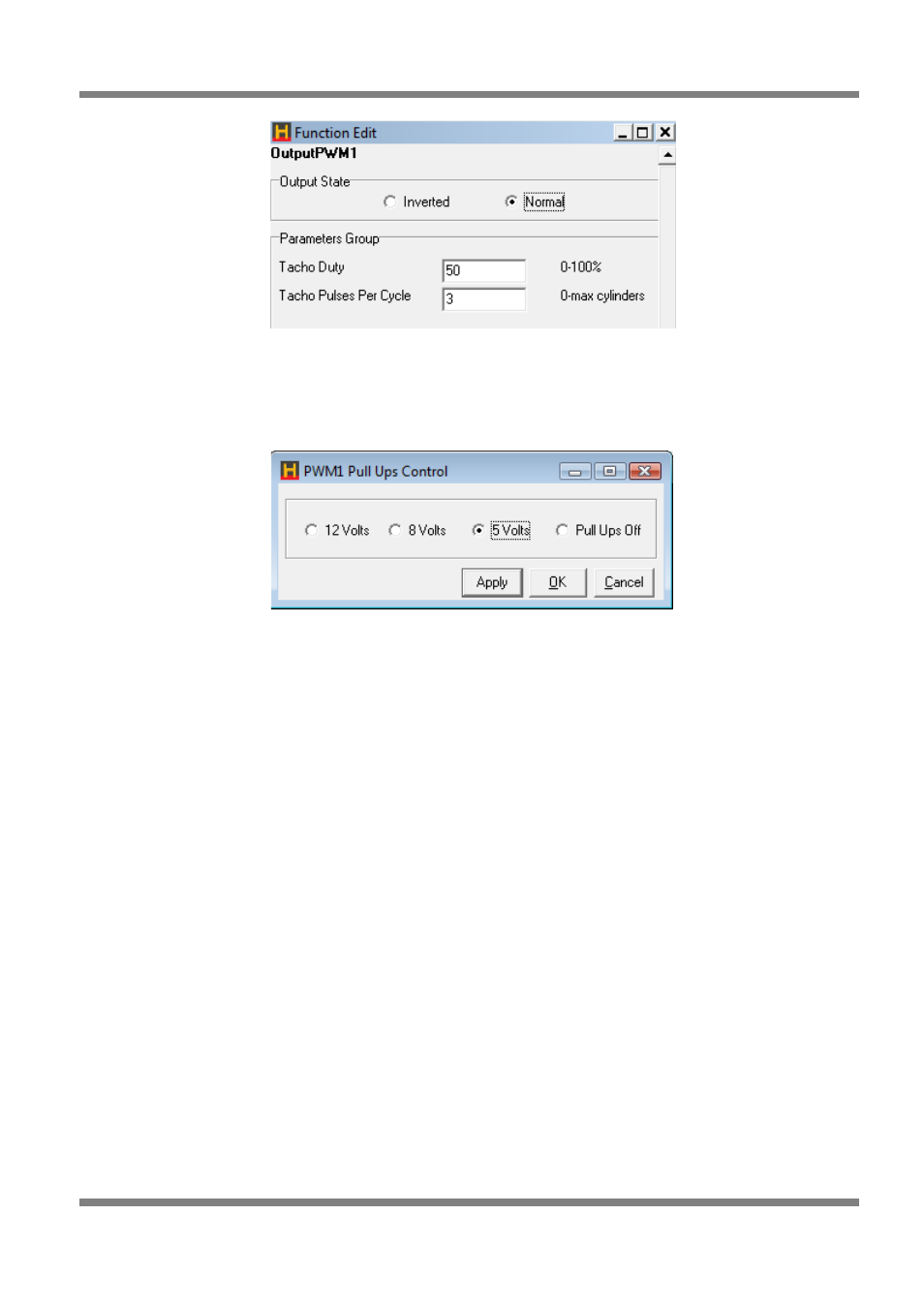

Figure 133 - Tacho Output Edit Menu
The Edit dialog allows you to configure the parameters for the selected function. These dialogs change
according to which function the channel is performing. All outputs have an option to invert the output
signal.
Figure 134 - PWM 1 Pullup Options
A function that is unique to PWM 1 output channel, is the ability to vary the voltage of its output. This
output is typically used for electronic tachometers that require different output voltages.
Analogue Inputs
The Analogue Input Options page uses standard Windows controls and conventions. These pages are
designed to be used with the mouse pointer and mouse clicks, however, the page can be navigated using
the ‘Tab’ key to move around the page, the ‘Space Bar’ to enable/disable the check boxes, the ‘Enter’ key
to open the Edit dialogs, and the ‘ESC’ key to close the Edit dialogs. Pressing the ‘Enter’ key on an open
dialog will automatically ‘Apply’ the changes on that page.
Page: 132 Copyright © Haltech 2008
