Haltech E11/E8 Instruction Manual

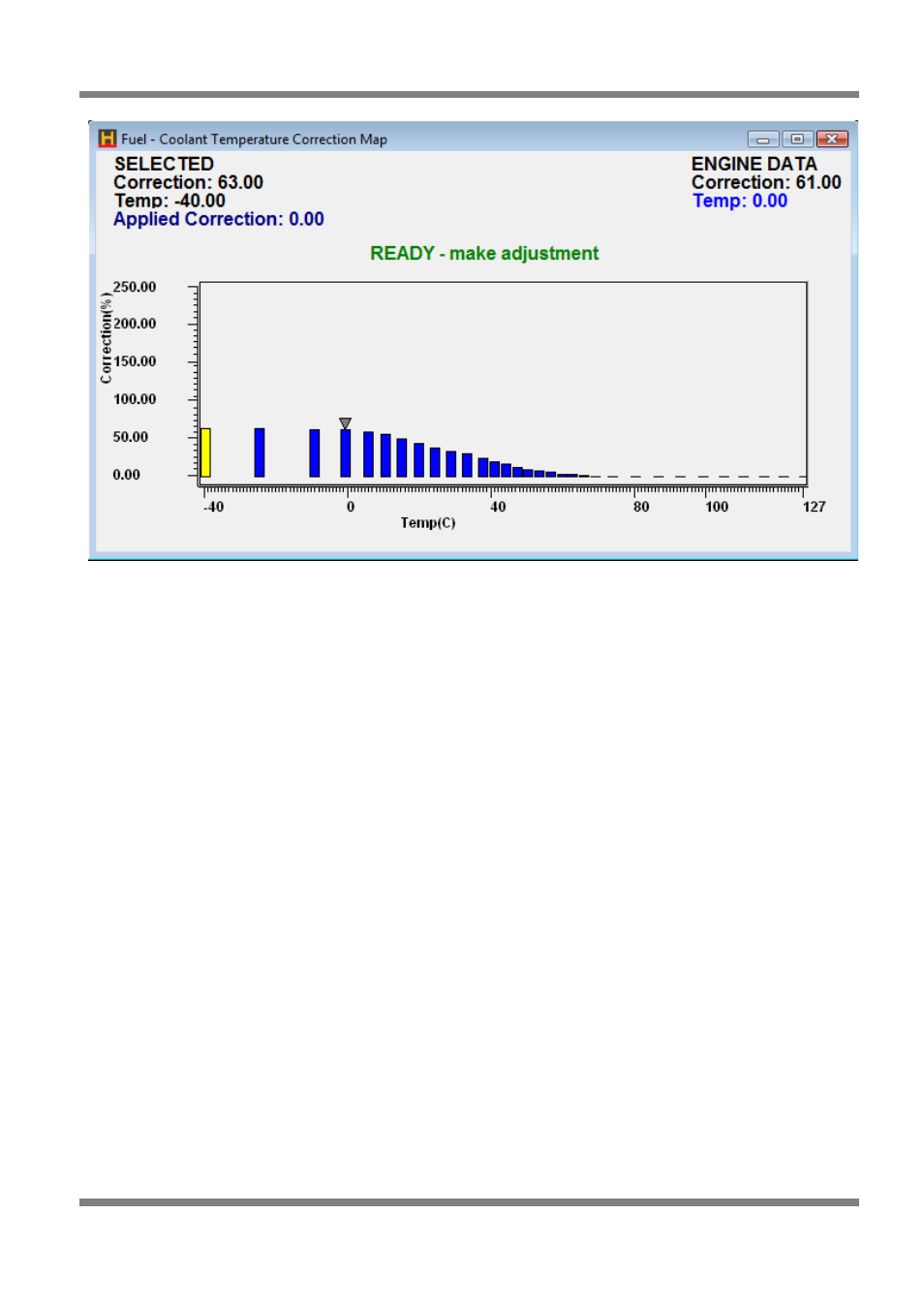

Figure 131 - Fuel Coolant Temperature Correction
Controls
Left/Right Arrows – These keys moves the bar selector so that you can work on all the bars individually.
Up/Down Arrow – Increase or decrease the height of the bar. This adjusts how much correction to apply
for that selected bar. Pressing Ctrl-Up/Ctrl-Dn will reduce the size of the increment to the finest resolution.
Pressing Shift-Up/Shift-Dn will increase the size of the increment. See section for a complete reference on
the default increment sizes.
PgUp/PgDn – This increases or decreases the height of the bar in larger steps than using the Up/Dn
arrow keys. Similarly, pressing Ctrl-PgUp/Ctrl-PgDn will reduce the size of the increment and Shift-PgUp/
Shift-PgDn will increase the size of the increment. See section for a complete reference on the default
increment sizes.
Ctrl-Left Arrow – This selects multiple bars to the left of the current bar. When multiple bars are selected,
any operation that you perform will affect all the selected bars. All bars that are selected will be highlighted
in yellow.
Ctrl-Right Arrow – This selects multiple bars to the right of the current bar. When multiple bars are
selected, any operation that you perform will affect all the selected bars. All bars that are selected will be
highlighted in yellow.
Alt-Left Arrow – This de-selects multiple bars from the right hand side.
Alt-Right Arrow – This de-selects multiple bars from the left hand side.
Ctrl-Space bar – deselects all multiple bars.
Home – Pressing the ‘Home’ key on the keyboard will instantly select the bar nearest to the current
engine speed and load.
‘a’ key – Selects all bars
ESC key – turns off all bars selection if enabled.
Ctrl-End – Move to the last bar on the right.
Page: 130 Copyright © Haltech 2008
