Haltech E11/E8 Instruction Manual
Ignition Mode Group
• Spark Mode - This mode must be set to the type of ignition system that is to be used on the
engine.
For Piston Engines
Trigger Injection Mode
Standard Trigger Full Cycle, with home on the CAM
24 +1 Multi-Tooth trigger (Honda, Toyota)
Nissan Trigger
Motronic with home signal on the CAM
Subaru
Subaru MY01 Direct Fire Multi Coil
Standard Trigger Full
Standard Trigger Half Cycle with home on the crank
24 +1 Multi-Tooth trigger (Honda, Toyota)
Nissan Trigger
Motronic
Subaru
Subaru MY01 Waste-Spark
All triggers Distributor
For Rotary Engines
Trigger Injection Mode
Standard Trigger with crank home
24 +2 Multi-Tooth trigger Direct Fire
Wasted Spark Leading ignition
Distributor (with toggle)
Standard Trigger with no home Distributor (without toggle)

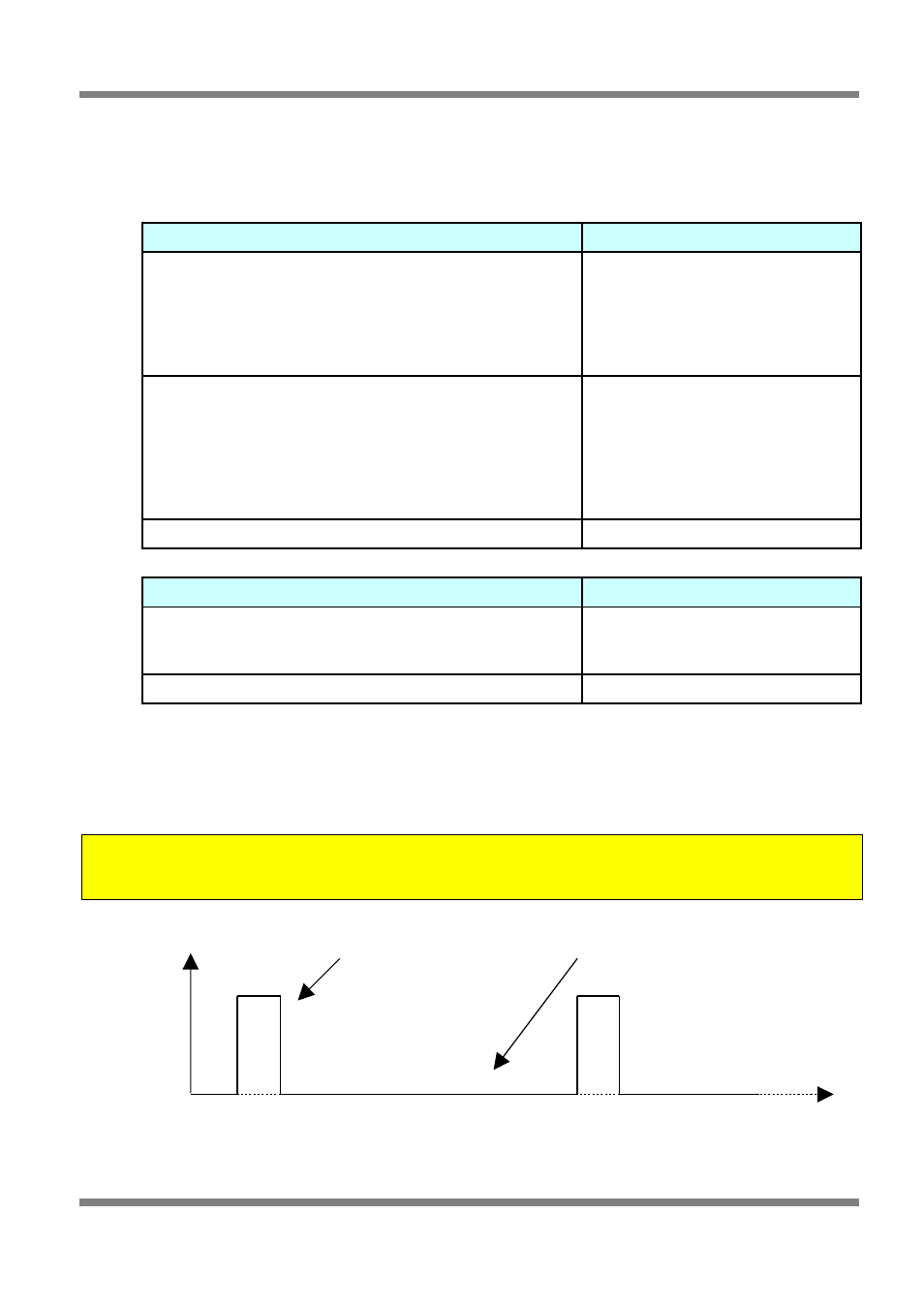

Figure 32 - Ignition Trigger Modes
Ignition Spark Edge
The ignition spark edge determines the polarity of the waveform used to drive the ignition module. Falling
edge ignition will use a zero voltage output at idle, a +12V signal for charging, and a falling edge to zero
volts to fire the spark. Most factory ignition systems use falling edge. This is the default setting.
Figure 33 - Ignition Spark Edge Falling
Page: 38 Copyright © Haltech 2008
Time
Voltage
Waveform
Naturally Low Signal Rises to
12V to Charge
Coils
+12V
Note : Take care when setting the ignition spark edge, incorrect settings will damage the
ignition system.
