Haltech E11/E8 Instruction Manual

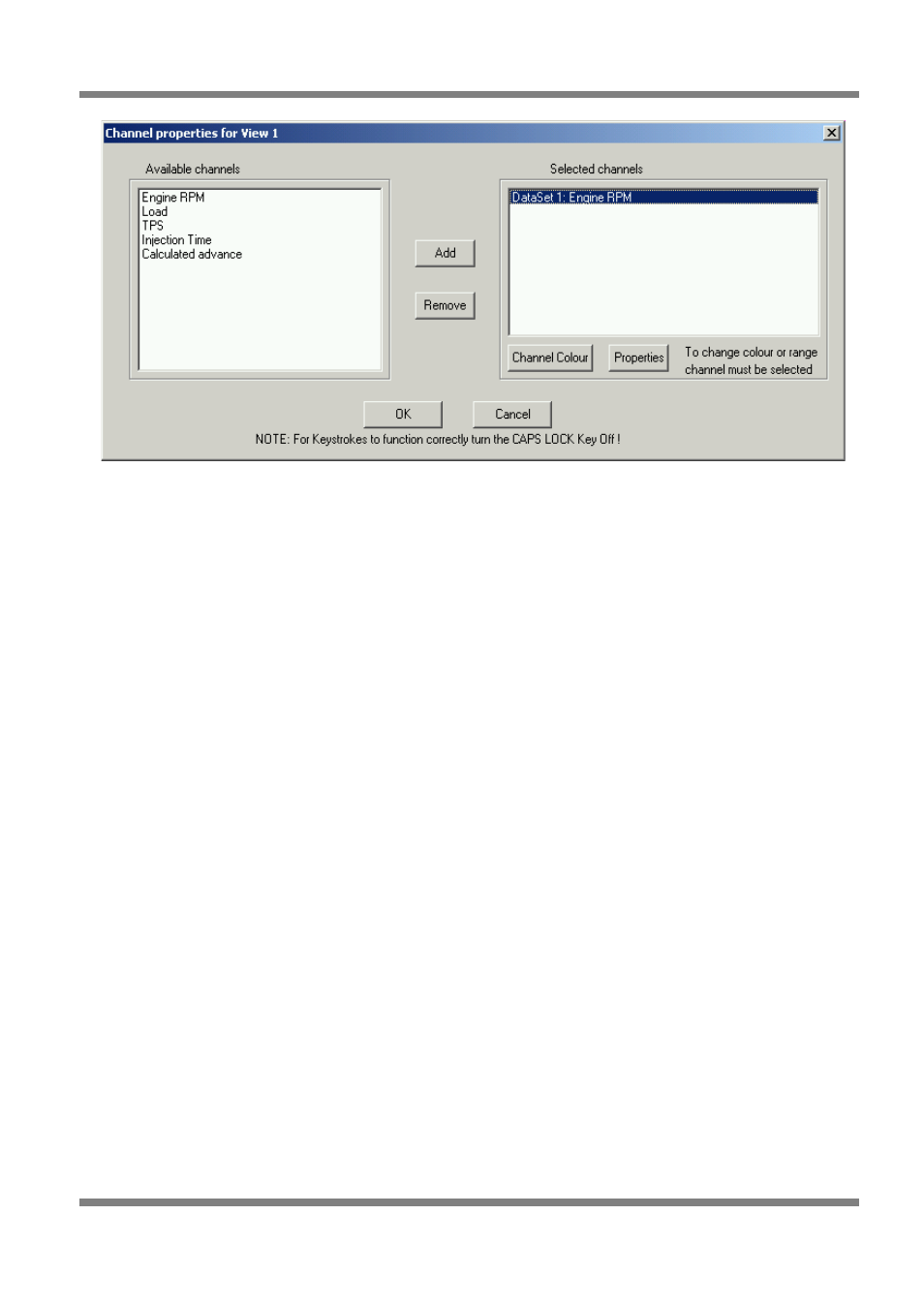

Figure 143 - Viewing Logged Channels
When a view is selected, a dialog will be presented which allows you to select which channels are to be
displayed on each view. To add or remove channels the user can select the appropriate window
(“Available channels” or “Selected channels”) and add or remove channels using the enter key.
To adjust the colour or channel properties the user selects the desired channel and can then select the
Channel Colour button or Properties button to adjust the channel colour and ranges. The Properties button
controls the range of the view (min and max scale), the unit name and precision. Note if the user wishes to
use manual scaling, then min and max numbers selected must be different. It should be noted that with
the exception of colour, Halwin will save these settings so they can be reused.
Another method of displaying channels is to double click on channels on the right hand side of the view.
As the user selects a Dataset the channels associated with the view appear to the right hand side of the
view. To add the channel to the view the user simply double clicks on the channel and to remove it from
the view the user double clicks on the channel already loaded. Note displaying the channels this way
implies that the channels from Dataset 1 to 5 are mapped to views 1 to 5 respectively.
Page: 138 Copyright © Haltech 2008
