Haltech E11/E8 Instruction Manual
Press the ‘Up Arrow’ key .
Click the icon with the mouse pointer
Press Ctrl-Alt-I
Select Data->Zoom In from the Data menu.
Zooming Out
Press the ‘Down Arrow’ key
Click the icon with the mouse pointer
Press Ctrl-Alt-o to zoom all the way out
Select Data->Zoom Out from the Data menu . This will zoom all the way out
Alternatively you can select a section to zoom using the right mouse button. Move the cursor to the
desired position and hold the right mouse button down to select and releases at the end of the selection.
Red dotted lines indicate the region used for zooming. This is illustrated below.

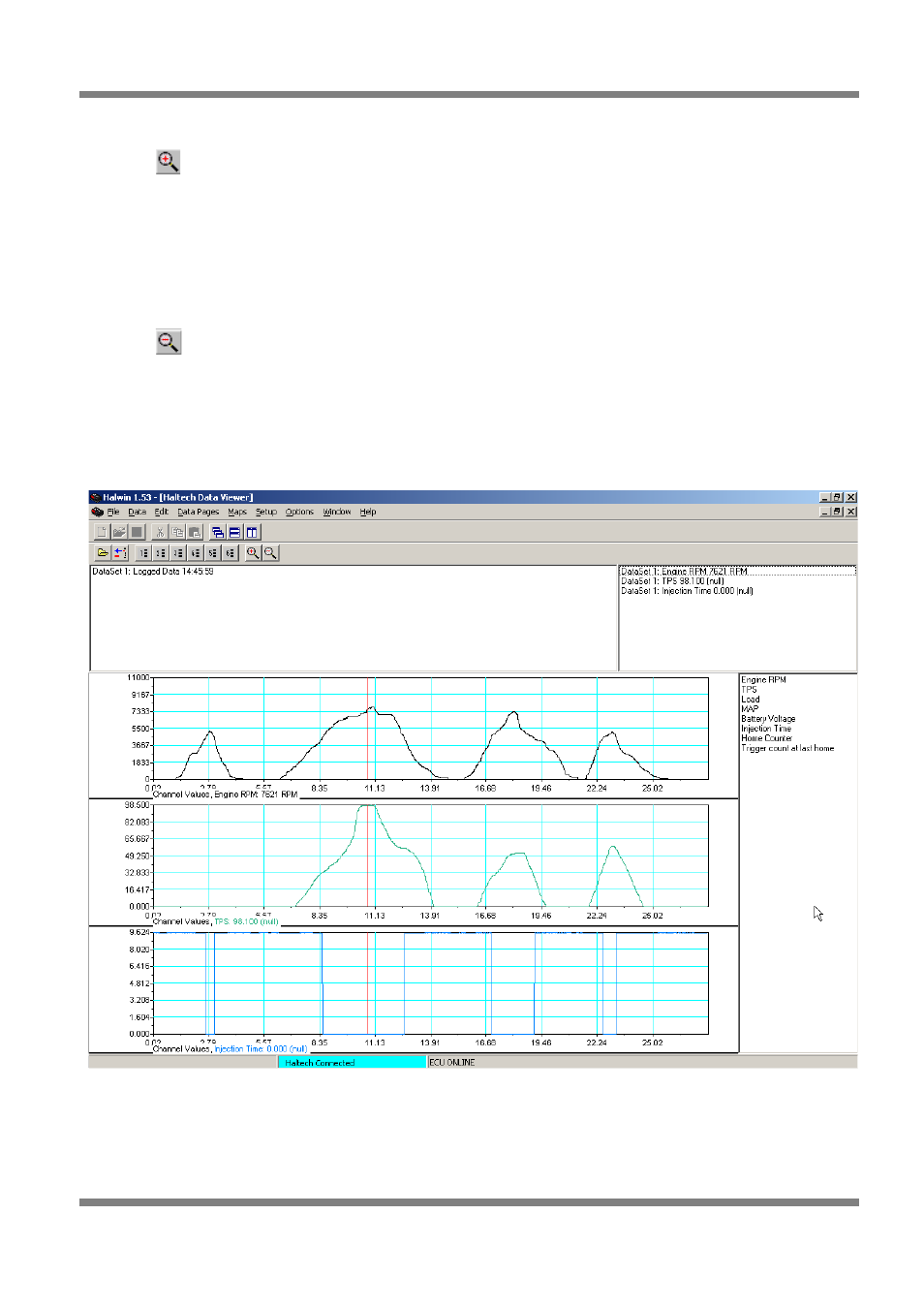

Figure 145 - Datalog Display
Changing the Trace Width
To modify the width of the traces the user can select Data->Select Pen Width or the user can press Ctrl –
W. This brings up a dialog where the user can type in the trace width in pixels. The user applies these
changes by selecting enter.
