Haltech E11/E8 Instruction Manual

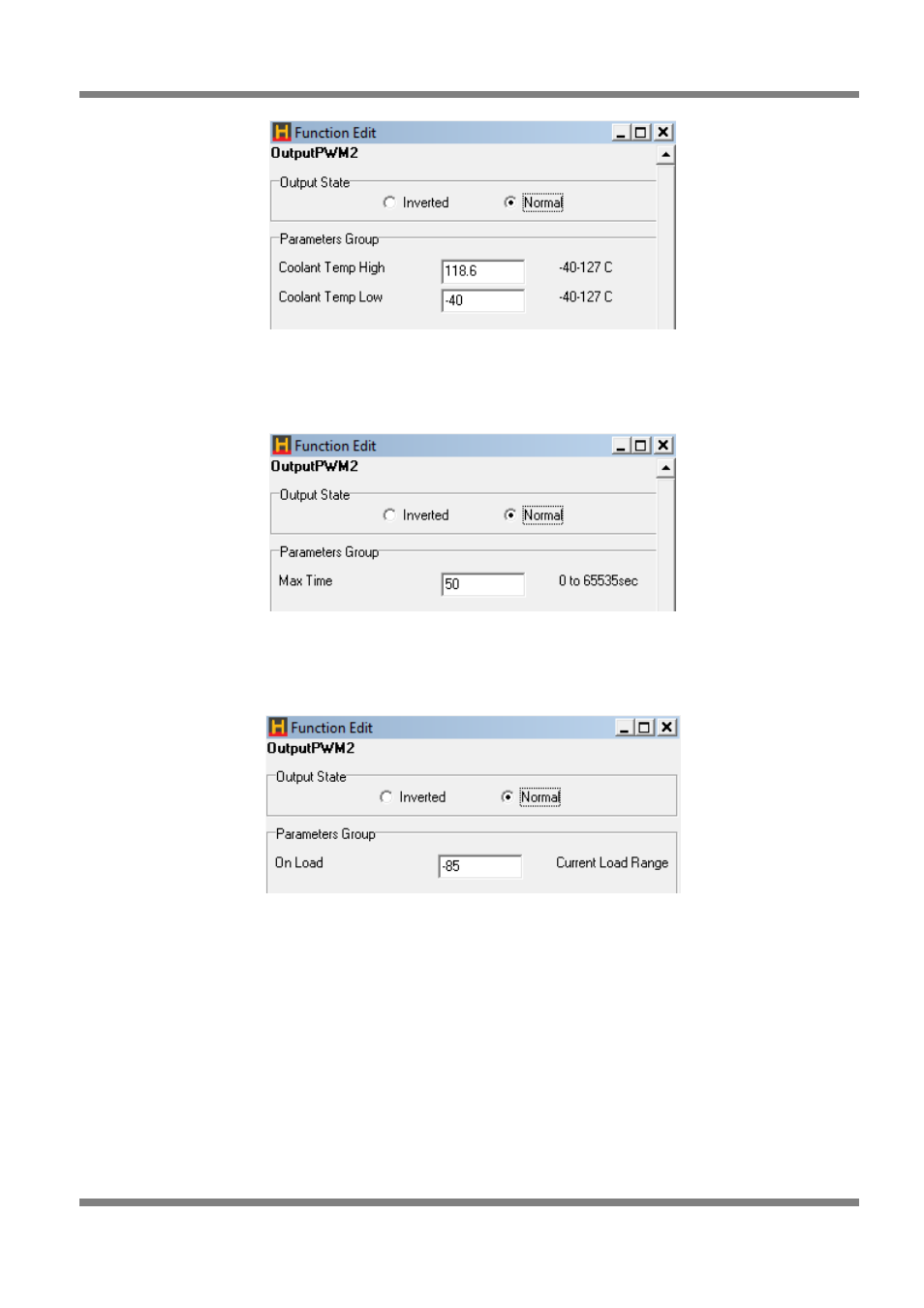

Figure 57 - Generic Coolant Temp Switch
Generic Engine Time Switch – Allows the output to be switched on after a prescribed period of time after
the engine has started.
Figure 58 - Generic Engine Time Switch
Generic Load Switch – Allows the output to be switched on and off again at prescribed engine load, as
measured by the engines load sensor (MAP sensor or TPS).
Figure 59 - Generic Load Switch
Generic Load PWM Map – Allows various duty cycles to be output based on the engine load and RPM,
this map is a full 32x32 load cell map and can be found in the “maps” menu. The frequency set in the
PWM output is the frequency at which the solenoid is to be pulsed at, typically between 30 – 300 hz
depending on application.
