Haltech E11/E8 Instruction Manual

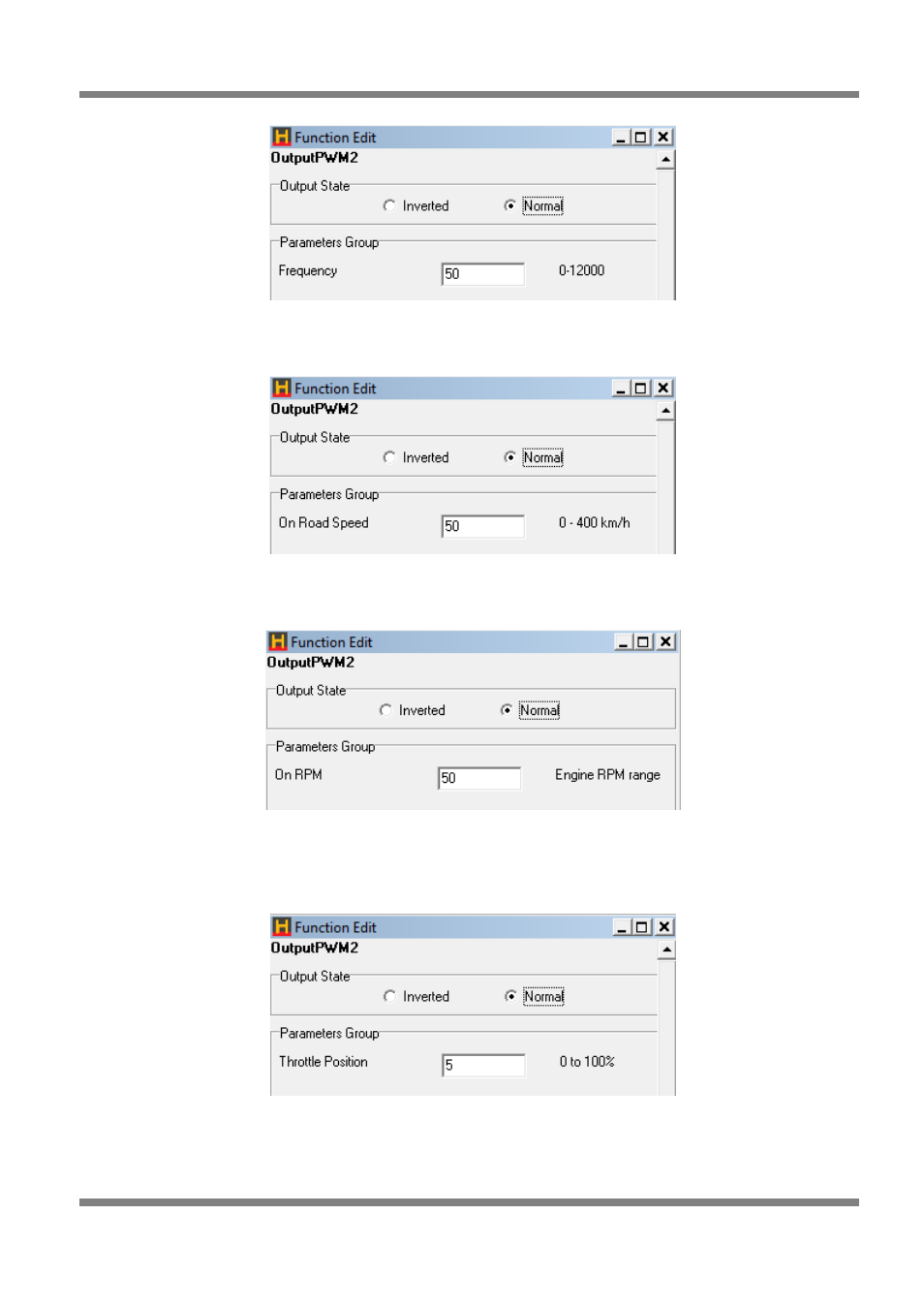

Figure 60 - Generic Load PWM Map Output
Generic Road Speed Switch - The output to be switched on once the programmed road speed has been
reached and remain on until the vehicle drops below the programmed road speed.
Figure 61 - Generic Road Speed Switch
Generic RPM Switch – Output is switched only once the programmed engine RPM is reached and
remains on until the engine RPM drops below the programmed engine RPM..
Figure 62 - Generic RPM Switch
Generic TPS Switch - Output is switched on after the programmed throttle position has been reached
and remains on until the throttle position returns to a value below the programmed value.
Figure 63 - Generic TPS Switch
