91
85%
Timer Model 1
Timer1
Mode
Start/Stop SW
Split Time SW
Memory
Up ： 10
OFF OFF
OFF
OFF
00
Reset
OFF
00:00.0
↑
Timer2
Mode
Start/Stop SW
Split Time SW
Memory
Up ： 10
OFF OFF
OFF
OFF
00
Reset
OFF
00:00.0
↑
85%
1 / 5 Model 1 Split Time
Return
Clear
Timer1
Lap# Split Time
1 00:00.0
2 00:00.0
3 00:00.0
4 00:00.0
5 00:00.0
6 00:00.0
Lap# Split Time
7 00:00.0
8 00:00.0
9 00:00.0
10 00:00.0
11 00:00.0
12 00:00.0
Lap# Split Time
13 00:00.0
14 00:00.0
15 00:00.0
16 00:00.0
17 00:00.0
18 00:00.0
Lap# Split Time
19 00:00.0
20 00:00.0
21 00:00.0
22 00:00.0
23 00:00.0
24 00:00.0
● Memory is turned ON, the power
OFF and a model change will not
be reset timer, either.
● [↑]An alarm sounds every
minute of the elapsed time
from timer start. (Conventional
mode)
[↓]An alarm sounds every
minute of the remaining time
up to the alarm time.

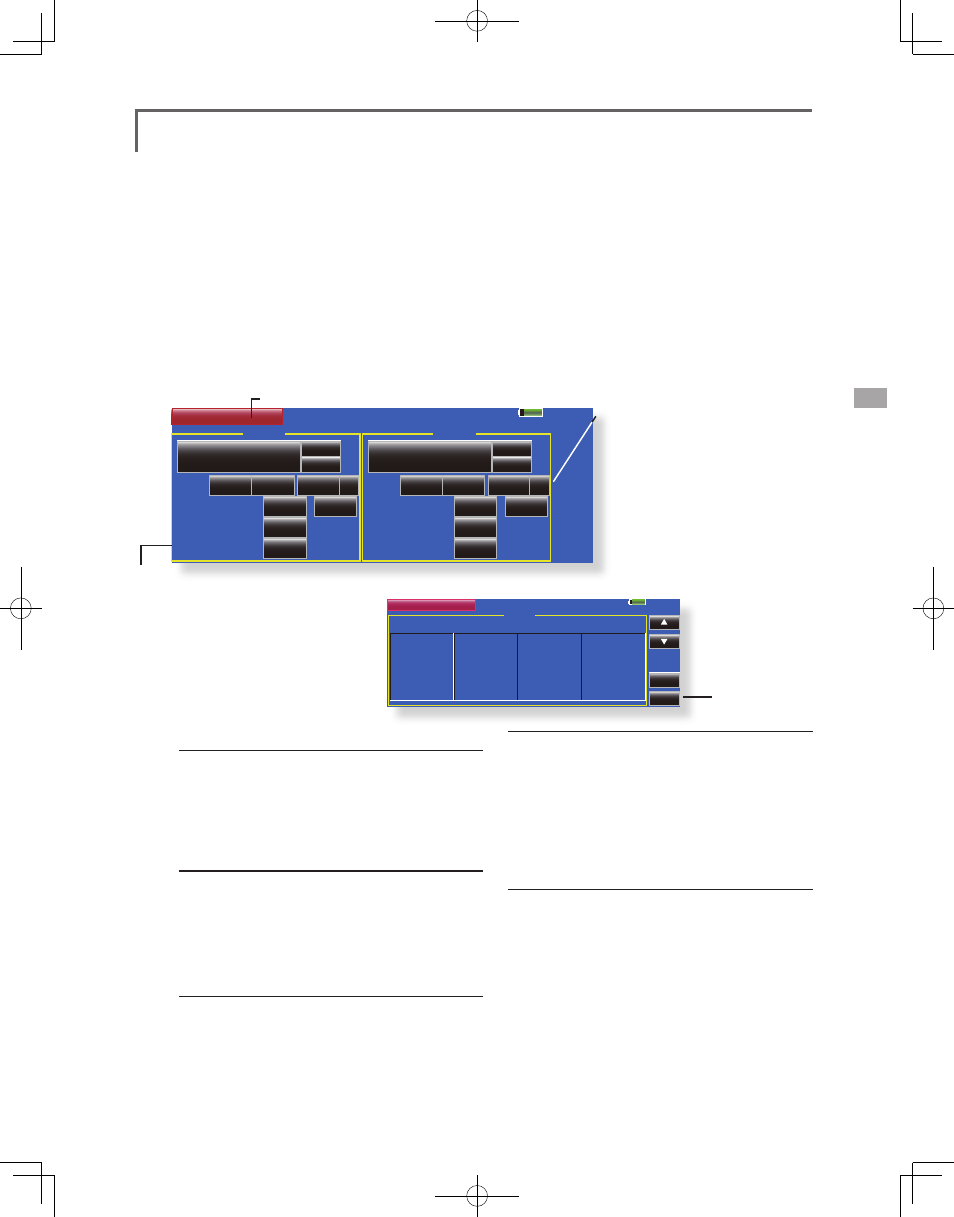

● Touch the [Timer] button in the Linkage Menu to
call the setup screen shown below.
Timer Timer setting and lap time display.
The Timer function may be set for any desired
time, i.e. engine run time, specified times for
competitions, etc. Two independent timers are
provided for your use. The timers are stored
independently with each model, meaning that
when you switch between model setups, the timer
associated with the new model is brought up
automatically.
The timers may be set to start and stop from
the motion of any switch or stick. You may set the
ON and OFF directions freely. Each timer has a
capacity of up to 59 minutes 59 seconds.
Up timer/Down timer/Hour selection
1. Touch the mode button and select the type
of timer.
2. Timer time setting
Touch the Mode minutes or seconds button.
Adjustment buttons appear on the screen.
Use these buttons to set the timer time.
Start/SWtop switch setting
1. Touch the Start/Stop SW "NULL" button to call
the screen, and then select the
switch and its ON direction.
(For a detailed description of the selection
method, see [Switch Setting Method] at the
back of this manual. The timer switches can
be set for each condition.)
Lap time switch selection
1. Touch the Lap SW "NULL" button to call the
Prog. Mix screen, and then select the switch
and its ON direction.
(For a detailed description of the switch
setting method, see [Switch Setting Method]
at the back of this manual. The timer switches
can be set for each condition.)
Each timer may be set for count-down or count
up operation with your choice of a target time. Also
Split Time may be set up and counted.
If a target time is set and the timer reaches
this point, a buzzer will sound for each count is
generated.
Countdown timers sound one short beep during
the last twenty seconds and two short beeps during
the last ten seconds before reaching the target, then
a long tone at the target time, and continue counting
with displaying a minus (-) sign. Count-up timers
also beep the last twenty and ten seconds, beep the
target time, and keep counting upwards until shut
down.
Timer operation
● Timer 1 and Timer 2 are started and stopped
by your choice of switch.
● To count the lap time, select the lap time
switch. Each time this switch is operated, the
lap time is stored. To display the lap time,
touch the respective [List] button.
● To reset a timer, touch the respective [Reset]
button. To exit the setting, touch the [Timer]
button.
Hour mode
An HOUR mode which counts up to 99 hours 50
minutes has been added to the timer modes.
● This mode is convenient when used at engine
maintenance period and other long-term
measurements.
● When the HOUR mode is set, “xx(hour) :
xx(minute)” is displayed on the count time
display. Seconds are not displayed.
● When the HOUR mode is set, “:” blinks each
second during timer operation.
● When the HOUR mode is set, the alarm
function/lap time measurement function are
inhibited.
●Return to Timer
screen
●Return to Linkage Menu
