●Return to Model Menu
AIL to Brake FLP [Corresponding model type]: Airplane/glider, 4 flaps or more
This mixing operates the brake flaps (FLP3/4)
in the aileron mode. When the aileron stick is
manipulated, the aileron and brake flaps perform
the aileron operation simultaneously and the
performance of the roll axis is improved.
● The aileron left and right mixing rates can be
adjusted for each flap servo.
● A mixing curve can be set.
● Mixing during flight can be turned ON/OFF by
setting a stick. (Always ON at "ON" setting)
● Linking can be set: Links this mixing to other mixings.

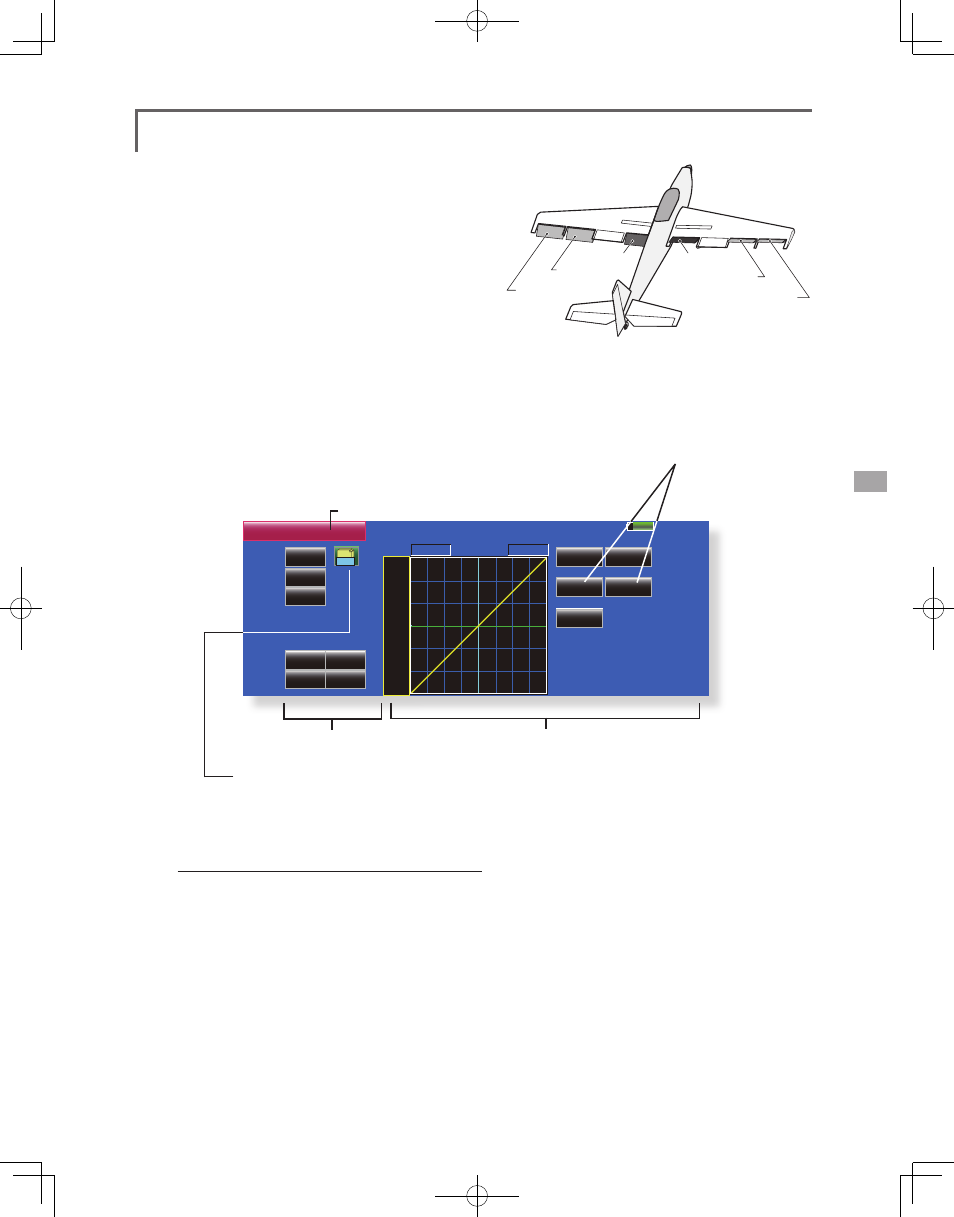

● Touch the [AIL to Brake FLP] button in the Model
Menu to call the setup screen shown below.
*The display screen is an example. The actual screen depends on the
model type.
● Mixing curve setting ● Adjustment of each flap
servo
●Group/single mode setting (Gr./Sngl)
● Left/right overall
a d j u s t m e n t b y
Rate A and Rate B
●Setting method
● Touch the ACT button and set the function to ACT
(ON).
● When setting a switch, touch the [ON] button of
the switch to call the screen, and then
select the switch and set its ON direction. (Always
ON at "ON" setting)
● Touch the left or right button of each flap servo,
and adjust the mixing rate with the adjustment
buttons.
*When the mixing direction is reversed due to linkage setup,
adjustments can be made by changing the rate value from +
to - (positive to negative).
● A mixing curve can be set.
● To set linking, touch the Link button and set it to
ON.
