32
S.BUS2 System
Using the S.Bus2 port an impressive array of telemetry sensors may be utilized.
Receiver connector
S.BUS Servo
S.BUS Gyro
telemetry sensor
S.BUS ○ ×
S.BUS2 × （※） ○
S.BUS device setting
S.BUS servos or a telemetry sensor can be connected directly to the T18MZ. Channel setting and other data
can be entered for the S.BUS servos or sensors.
S.BUS2 TABLE
（※） Don't connect S.BUS Servo,
S.BUS Gyro to BUS2 connector.
3-way hub
or 2-way
(S.BUS Servo)
S.BUS device
(telemetry sensor)
Receivers
Battery
T18MZ

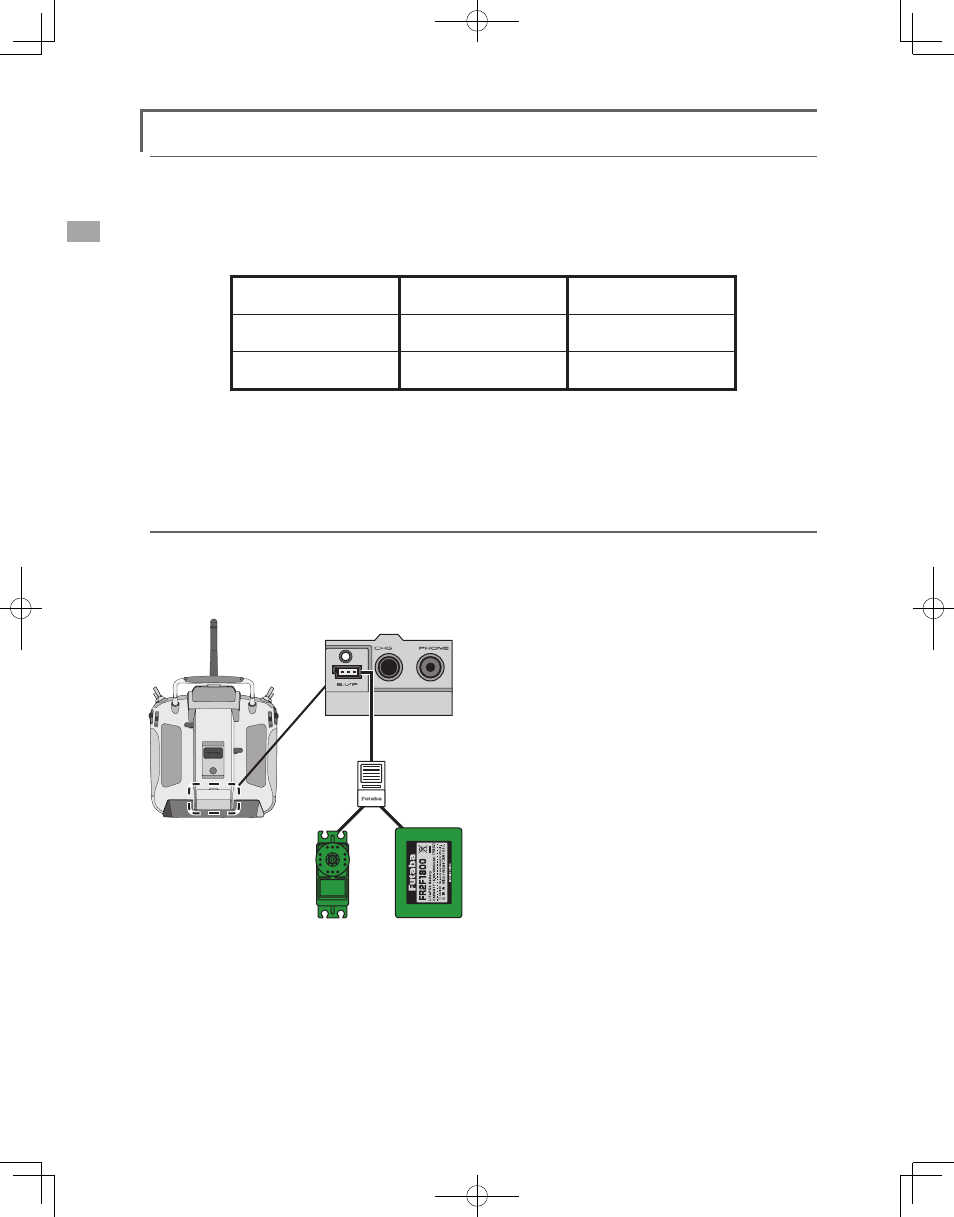

1. Connect the S.BUS device and battery you
want to set with a 3-way hub or 2-way cord
as shown in the figure.
2. Turn on the transmitter power.
3. Call the setup screen.
Servo: System Menu → S.BUS Servo
Sensor: Linkage Menu → Sensor
4. Perform setting in accordance with each
screen.
5. This sets the channel and other data for each
S.BUS servo, or telemetry device to be used
with the S.BUS device or receiver.
