Switch Lock
Lever
SW Type Posi. Ait/Mom 3P Mom
3Posi. Alt.
Lever SB 2Posi. Alt.
Lever SC 3Posi. Alt.
Lever SD 3Posi. Alt.
Lever SE
SW Type Posi. Ait/Mom 3P Mom
3Posi. Alt.
Lever SF 2Posi.
2Posi.
2Posi.
Alt.
Lever SG Alt.
Lever SH Mom.
SA
Switch selection
1. Select the switch type by touching the [Type]
button corresponding to the switch to be
replaced.
[Lever]: Toggle switch
[Button]: Pushbutton
[Dial]: Knob
●Setting for toggle switch is shown above.
2/3 position selection
1. Touch the "Posi." button corresponding to the
switch and select the position type.
[2 Posi]: 2 position
[3 Posi]: 3 position

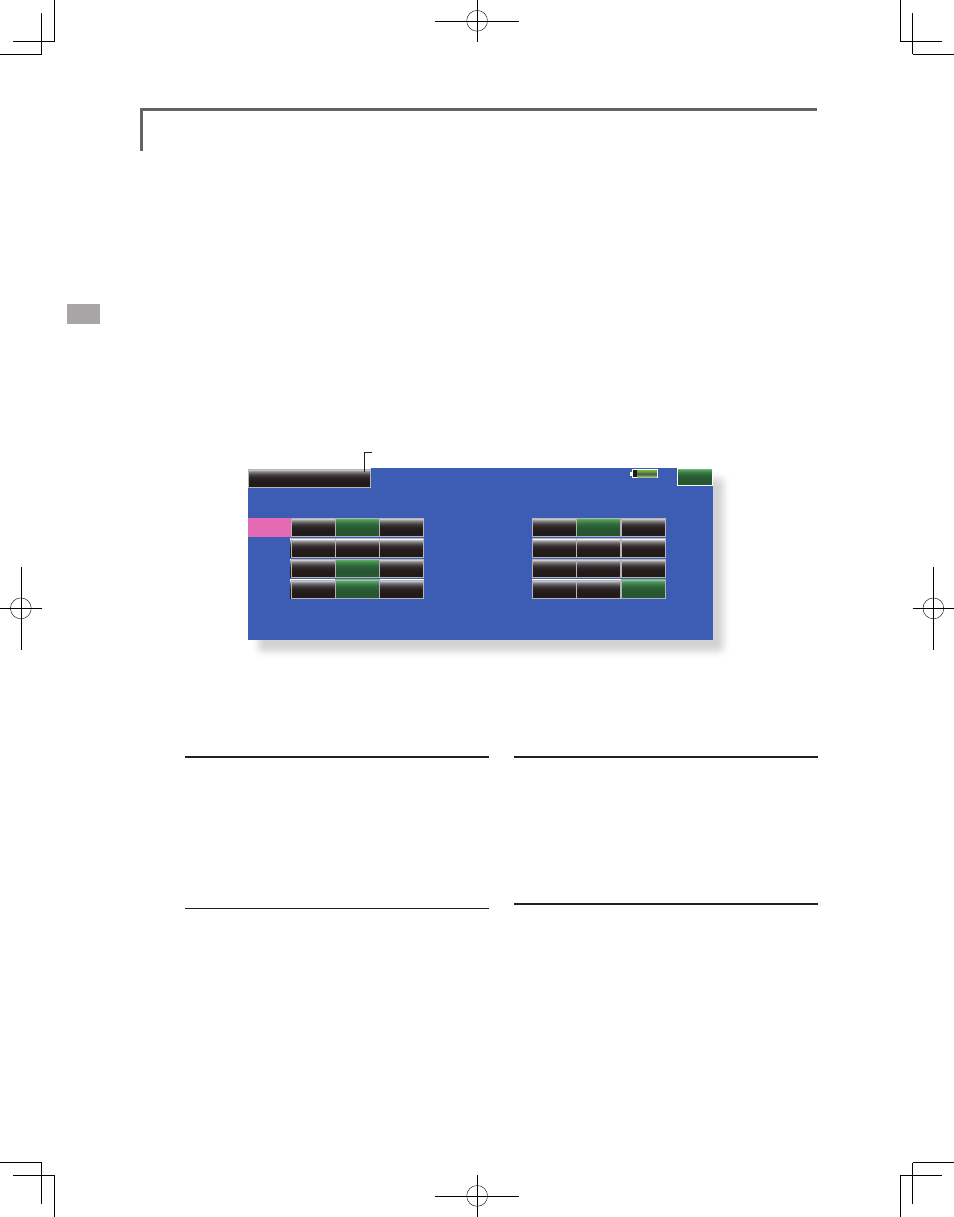

Switch Toggle switch type setting (Setting when the switch was replaced.)
If you modify the location of the switches on the
right and left (top) of the transmitter, you should
be sure to re-assign functions to the switches for
proper operation.
A “Lock” is included to prevent settings from
being modified by mistake. When you need to
change settings, unlock this by pressing “Lock” it
will then read ”Unlock” and you can make changes
as required.
● Touch the [Switch] button in the System
Menu to call up the setup screen shown below.
●Return to System Menu
[Alt/Mom] mode selection
1. Select the operation mode by touching
the [Alt/Mom] button corresponding to the
switch.
[Alt.]: Alternate type
[Mom.]: Self-return type
● Selection of the [Mom.] mode with a
3-position type switch is shown above.
"3P Mom" mode selection
1. Select the operation mode by touching
the "3P Mom" button corresponding to the
switch.
[Single]: One-side self-return type
[Dual]: Both directions self-return type
