Page 85

85
●Return to Linkage Menu

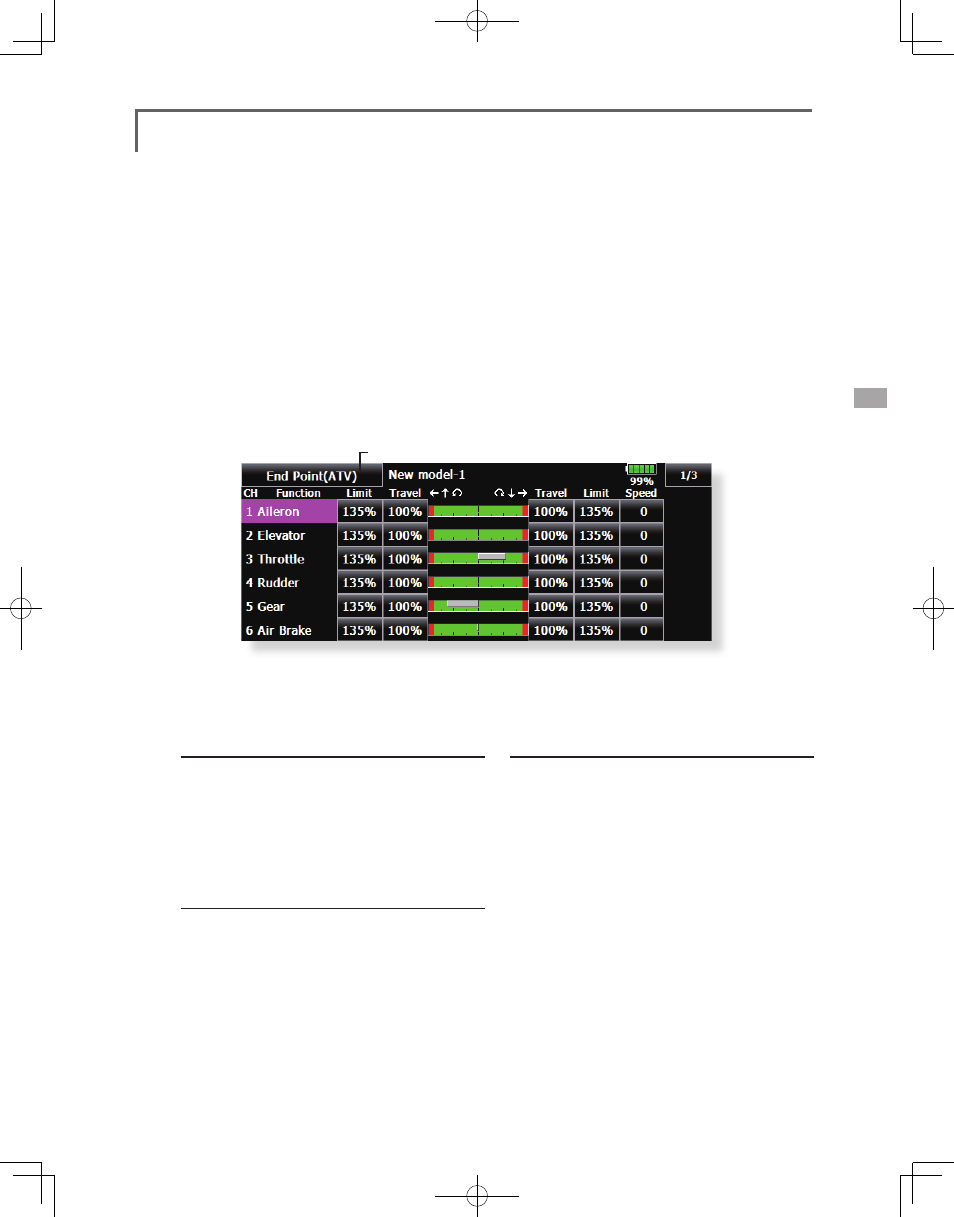

● Touch the [End Point (ATV)] button in the Linkage
Menu to call the setup screen shown below.
End Point (ATV)
Sets the travel, limit point, and speed of each servo.
(The display screen is an example. The screen depends on the model type.)
The End Point function adjusts the left and right
servo throws, generates differential throws, and
will correct improper linkage settings.
The Travel rate(normal full stick movement at
high rates) can be varied from 30% to 140% in
each direction on channels 1 to 16. Also, the Limit
point (how far the servo travels when a mix is
involved) where servo throw stops may be varied
from 0% to 155%.
Servo travel adjustment
1. Touch the Travel button of the channel you
want to set. Adjustment buttons appear on
the screen.
2. Use these buttons to adjust the rate.
●Initial value: 100%
●Adjustment range: 30%~140%
3. Repeat the procedure above for each rate.
Limit point adjustment
1. Touch the Limit button of the channel you
want to set.
2. Use the adjustment buttons to adjust the limit
point.
●Initial value: 135%
●Adjustment range: 0%~155%
3. Repeat this procedure for each limit point.
Note: The indicators on the screen display actual servo throw
of the each channel. The center position of the indicator is
based on the Sub-Trim settings. Therefore the Sub-Trim
adjustment changes the Limit point display of the indicator.
The Servo Speed setting is used to set the servo delay for
each channel, from channel l to channel 16. The system uses
the programmed speed (delay) to slow down servo position
changes. The Servo Speed setting can be varied from 0 to 27
in each channel.
Servo speed setting
1. Touch the Speed button of the channel you
want to set.
2. Use the adjustment buttons to adjust the
servo speed.
●Initial value: 0
●Adjustment range: 0~27 (steps)
3. Repeat this procedure for each channel.
To close this screen, touch the [End Point
(ATV)] button.
