88
85%
Model 1
Elevator +0%
Swash Ring
ON
Aileron
Rate
+0%
100%
Reset
●Return to Linkage Menu

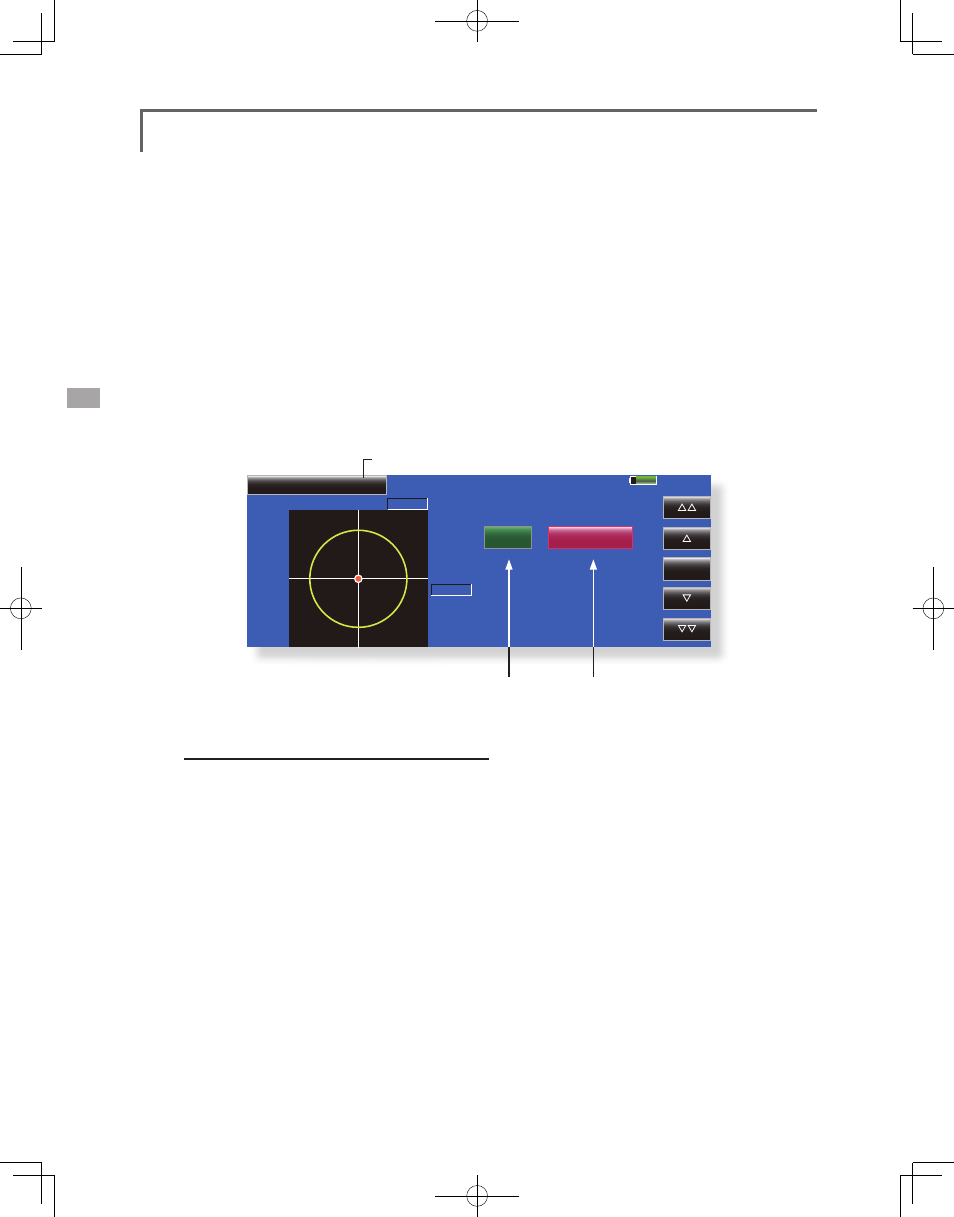

●Touch the [Swash ring] button in the Linkage Menu
to call the setup screen shown below.
Swash Ring Limits the swash travel within a fixed range to prevent linkage damage
(Helicopter only)
This function limits the travel of the swash
plate to prevent linkage damage as the aileron and
elevator operation is used. It is useful for 3D heli
setting.
Swash ring setting procedure
1. Push the Swash ring button on the linkage
menu.
2. Push ACT/INH button to activate.
*The movement area monitor shows the current aileron and
elevator values and limit ranges by the yellow circle.
3. Adjust the rate to the maximum amount of
swash plate decline.
*The swash movement is limited within the circle.
Adjustment range: 50 - 200%.
Rate button Activate button
