Telemetry System
The R7008SB receiver features bi-directional communication with a FASSTest Futaba transmitter using the
S.Bus2 port. Using the S.Bus2 port an impressive array of telemetry sensors may be utilized. It also includes
both standard PWM output ports and S.Bus output ports.
*Telemetry is available only in the FASSTest 18CH mode. (12CH mode displays only Receiver battery voltage
and Extra battery voltage.)
*The telemetry function requires the corresponding receiver (R7008SB).
* Telemetry display only T18MZ ID of R7008SB was remembered to be.

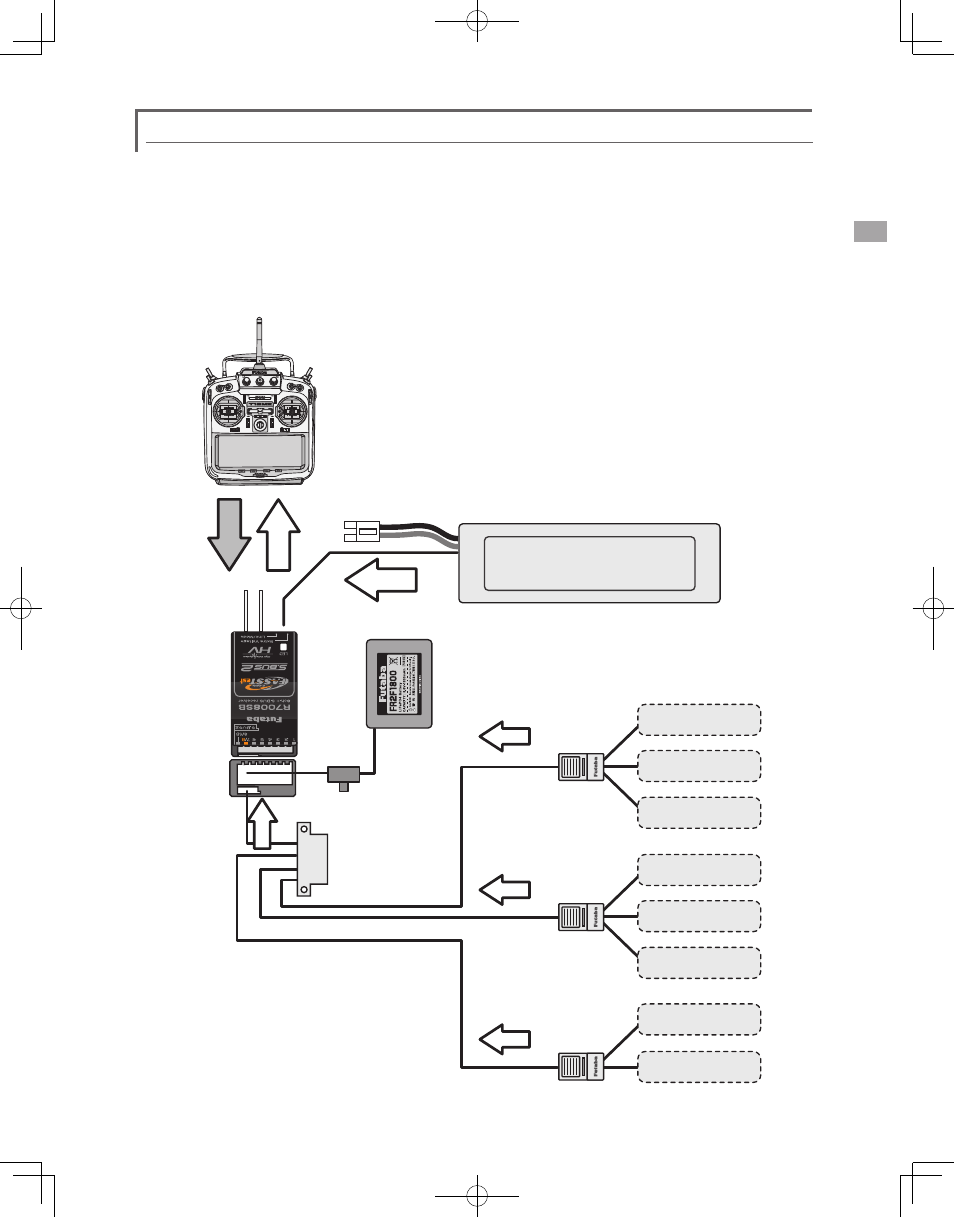

S.BUS2
Connector
Temperature
Sensor
Switch
T18MZ
Terminal box
HUB
HUB
HUB
RPM
Sensor
Altitude
Sensor
Altitude
Sensor
Altitude
Sensor
Sensor
S.BUS2 Tool
Sensor
Your aircrafts data can be checked in the
transmitter by connecting various telemetry
sensors to the S.BUS2 connector of the
receiver.
Servos are classified by channel, but sensors
are classified by “slot” . Since the initial slot
No. of the T18MZ is preset at each sensor,
the sensors can be used as is by connecting
them. There are 1 31 slots.
