●Retaining Force (J2)
(Mode 1/3)
●Stick
Tension
(J1)
●Stick Tension(J2)
(Mode 2/4)
●Stick Tension(J4)
●Stick Tension(J3)
(Mode 1/3)
●Retaining
Force (J3)
(Mode 2/4)

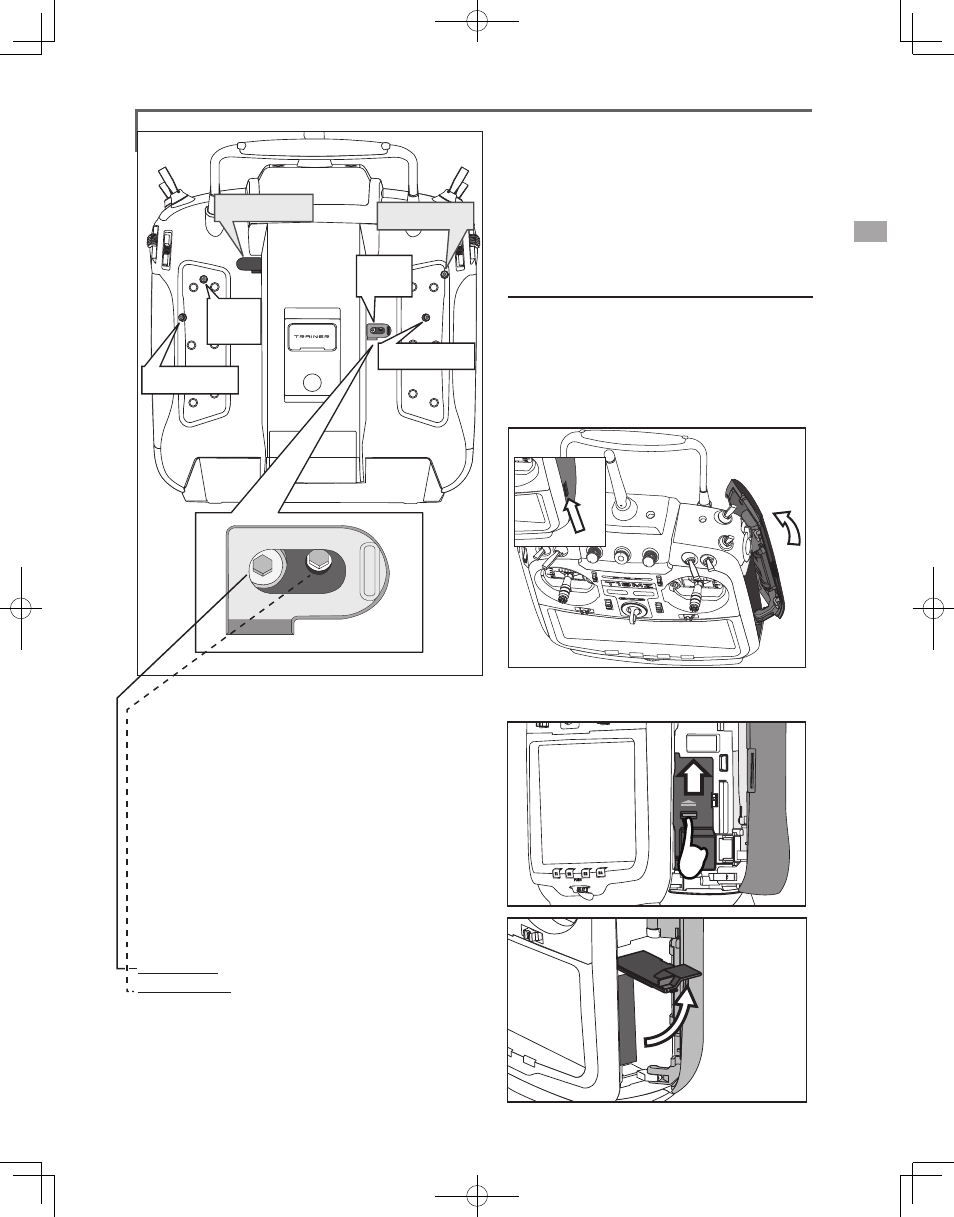

[Adjustment of tension]
Adjustment of Throttle Stick (Ratchet System)
You can choose either airplane ratchet system or
helicopter-touch.
1. Open the dust protection cap on the back of the
transmitter that is covering the hole for throttle stick
adjustment.
2. Use the attached 1.5mm hexagonal wrench (inside
stylus) to turn the adjustment screw and set it as you
prefer. Turning the screw clockwise increases the
tension.
For airplanes: Adjust the screw on the left.
For helicopters: Adjust the screw on the right.
In changing the setting from airplane to helicopter (or
heli to airplane);
1. Turn the screw counter-clockwise until the throttle
stick moves freely, and turn the screw clockwise to
adjust it to the tension you prefer.
*This transmitter has two ratchet plates, one for airplane and
the other one for helicopter. If you tighten both screws, you
won't able to achieve the adjustment that you need because
of the overlap of those two adjustments.
*If you want to change the setting from airplane to helicopter
(or from helicopter to airplane), turn the ratchet screw
clockwise until the throttle stick moves freely. Then turn the
screw for the helicopter until you get the tension you like.
Battery exchange
Note: Detaching the battery while the power
is one can cause data you have recently edited to
be lost.
[How to remove battery LT2F3500XH]
1. Using the tabs at the side of the transmitter,
open the side door to the rear as shown in
the figure.
2.Open the battery cover inside the transmitter
by sliding it upward as shown in the figure.
*In the Mode 1/3, arrangement of a screw is opposite.
