Futaba 18MZ 2.4GHz - Manual (Page 109)

109
Setting method
CTRM mode: Maximum change near center by
center trim operation (Does not change at end of
the stick movement) When the adjustment range
(Range) value is made small, trim is active only
near the center.
NORM mode: Normal trim (linear) operation.
When the adjustment range value is decreased,
trim is active only near the center. Needle high
trim works as high trim based on the center. This
operation is similar to reverse ATL trim.
1. An acceleration function can be set. This
is used when the mixture is either too rich or
too lean, which can be caused by sudden
operation of the throttle stick.
2. The return time after operation (Dump) can
be set for both settings (Acceleration-High) .
3. A needle throttle cut function can be set.
4. This operation can be linked with the throttle
hold functions (Cut and Idle), Throttle Cut
function, and Idle Down.
5. The needle side cut position can be set. Set it
to the fuel side full open position.
When MIX mode is selected, the throttle
curve setting becomes the master.
In the UNMIX mode, the throttle stick position
becomes the master.
● Return to Model Menu

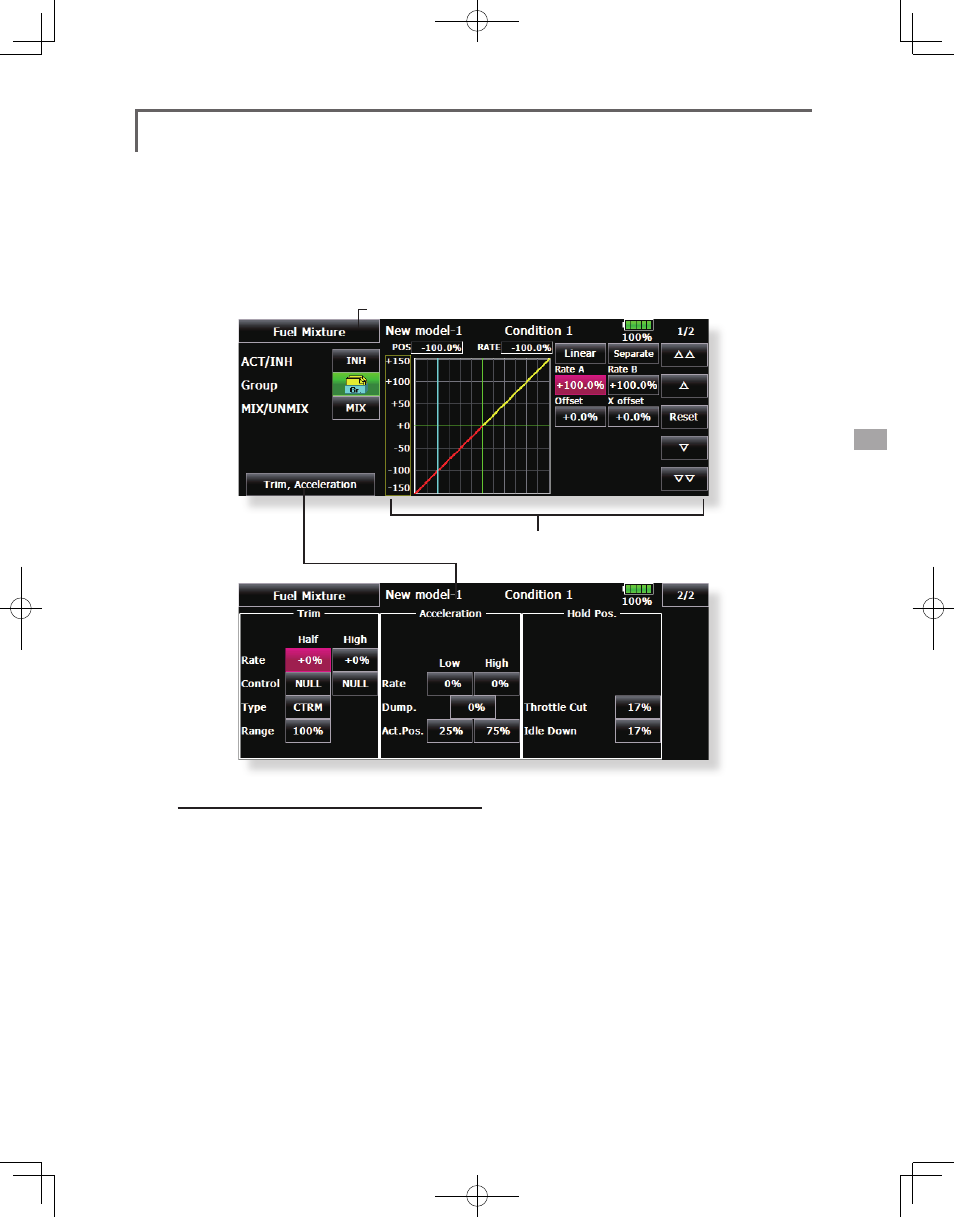

● Touch the [Fuel Mixture] button in the Model Menu to
call the setup screen shown below.
Fuel Mixture Dedicated mixing used in needle adjustment of engines which use a fuel mixture
control carburetor. [Airplane, helicopter]
This function is dedicated mixing used in needle
adjustment of an engine that uses a fuel mixture
control carburetor.
*The needle channel is assigned to CH9 as a default.
● Operation curve setting
(For a description of the setting method, see the description at the
back of this manual.)
