Futaba 18MZ 2.4GHz - Manual (Page 147)

147
85%
Model 1 Normal
Mixing ACT Switch Group
Throttle Mix
AIL to THR INH
Gr.
ON
ELE to THR INH
Gr.
ON
RUD to THR INH
Gr.
ON
Mode
CTRM
CTRM
CTRM
85%
POS +0.0%
Linear
Return
Separate
+100.0% +100.0%
Model 1 Normal
Gr.
+150
+100
+50
+0
-50
-150
-100
RATE
Rate A
INH ACT
ON Switch
+0.0%
Offset
Rate B
+0.0%
AIL to THR
-50%
0%
0% 0%
+50% Act.POS.
Dump.
Rate
Acceleration
Left Right
Throttle Mixing
This function corrects slowing of the engine
speed caused by swash plate operation during
aileron or elevator operation. The method of
applying clockwise or counterclockwise torque
when pirouetting can also be corrected.
An acceleration function which temporarily
increases the throttle side correction rate relative to
rapid stick operation can also be set.
When correction is necessary, touch the mixing
corresponding to the mixing that needs correction
to call the curve setup screen, and then correct the
slowing.
Setting example
● AIL to THR applies a load to the engine and
corrects sinking of the engine speed when
the throttle stick was operated. Engine
racing can be adjusted independently at
the right aileron and left aileron by Rates A
and B.
● Return to Model Menu

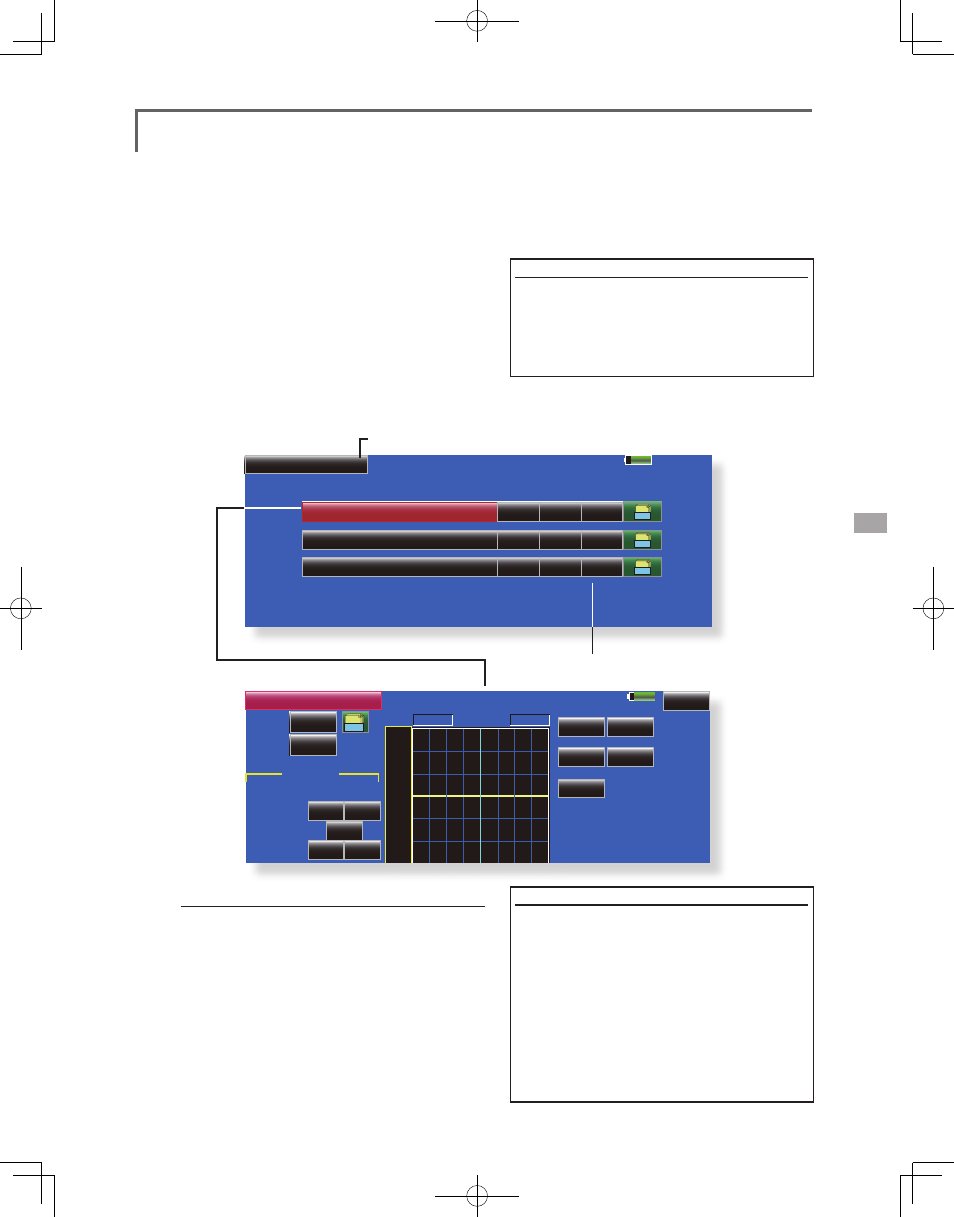

● Touch the [Throttle Mix] button in the Model
Menu to call the setup screen shown below.
Setting method
● When using this function, touch the [INH] button
and display [ON] or [OFF].
● When you want to set the same settings to other
conditions, select the group mode (Gr.). When
you want to add settings to the selected condition
only, select the single mode (Sngl).
● The correction rate can be set by curve.
● A switch can be set.
When [ON] is set, the function is operated by
merely selecting the condition.
When setting an [ON]/[OFF] switch, touch the
[ON] button and then set the switch and its ON
direction at the screen.
● CTRM mode: The mixing rate is reduced by
the throttle stick high and low position.
● LINEAR mode: Constant mixing rate to all the
throttle stick ranges.
● Acceleration can be set for both settings
(High) and (Low) at maximum correction
rate.
● Acceleration rate setting (Rate)
● The return time (Dump.) after operation can
be set.
● The operation point when the correction
rate is increased and decreased can be
set independently. When an operation
point is exceeded, acceleration operation
is performed.
● Mode selection
