●Return to Model Menu
● Group/single mode switching
(Gr./Sngl)
● When using a fine tuning VR, touch this
button to call the screen.
● Condition delay setting and cut
switch setting.
● Ailerons, flaps, an elevators servo
speed setting
●Manual/Auto mode selection
Manual: Switches the function ON/OFF by switch
Auto: Trim mix function call can be linked to a stick,
etc. A stick switch, etc. separate from the function
ON/OFF switch is set.
(Trim mix setup page 1/2)
Trim Mix 1/2 [Corresponding model type]: Glider, 2 ailerons or more
The amount of ailerons, elevator, and flaps
(camber flap, brake flap) trim offset can be set to
a switch.
As an example Trim Mix 1 can be set up for
launching, with speed flaps and ailerons dropped,
and a slight amount of up elevator. Trim mix
2 can be used for high speed flying, with both
ailerons and speed flaps reflexed slightly, and a bit
of down elevator.
The trim functions can be activated during
flight by setting a switch. To prevent sudden trim
changes when switching flight conditions, a delay
can be set to provide a smooth transition between
the two.

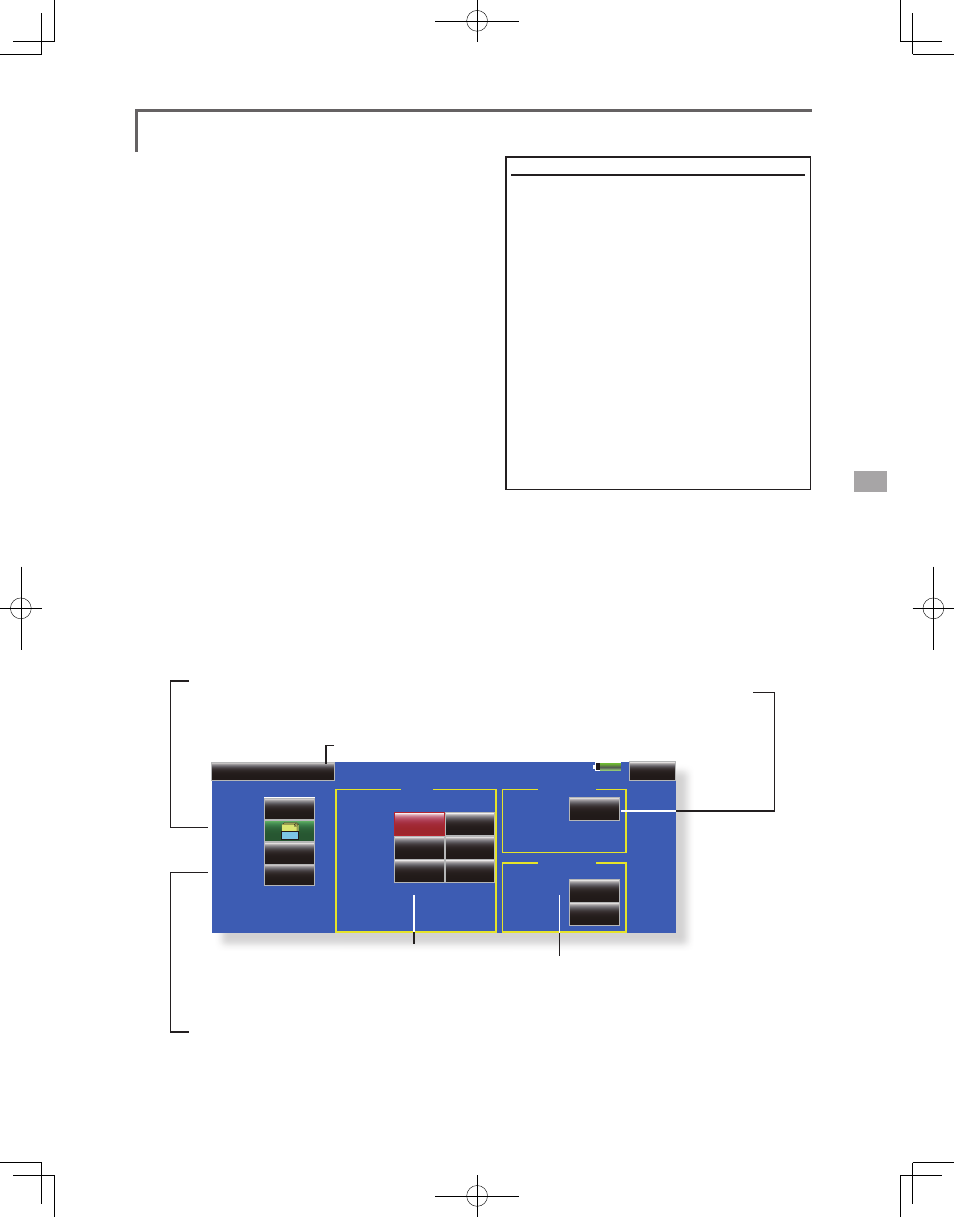

● Touch the [Trim Mix 1] button in the Model Menu to call the setup screen shown
below.
(The display screen is an example. The actual screen depends on the model type. The screen shown below is for 4
ailerons and 4 flaps.)
(Touch the [1/2] button to switch to page 2.)
● Touch the ACT button and set the function to ACT (ON).
● When setting a switch, touch the Switch button to call the screen, and then
select the switch and set its ON direction. (Always ON at "ON" setting)
Example
1. Touch the ACT button and set the trim mix function
to [ON].
*When separating the settings for each condition, touch the
group mode button and set it to [Sngl].
2. Select the ON/OFF switch.
3. Select the [Manual] or [Auto] mode.
In the [Auto] mode, also select an auto SW. This
switch can be linked to a stick, etc.
In: The operation speed at switch ON can be set.
Out: The return speed at switch OFF can be set.
The offset rate can be varied in the Fine Tuning
numeric range set at screen [2/2] by VR, etc.
selection.
When flight conditions are set, the operation speed
can be set for each condition. Condition delay
operation can be interrupted and each rudder
quickly returned to its original position by selecting a
cut switch.
