RUD to AIL [Corresponding model type]: Airplane/glider, general
This function is used when you want to mix
the ailerons with rudder operation. It is used
when rudder is applied during roll maneuvers,
knife edge, etc. of stunt planes. It can be used to
bank scale models, large models, etc. like a full
size plane.
● A mixing curve can be set.
● Mixing during flight can be turned ON/OFF by
setting a switch. (Always ON at "ON" setting)
● The rate of rudder correction can be memorized
by using the memory function. This is convenient
when setting a mixing curve. When memory
operation (switch operation) is performed in
memory mode with the rudder correction, the
switch operation position at that time is displayed

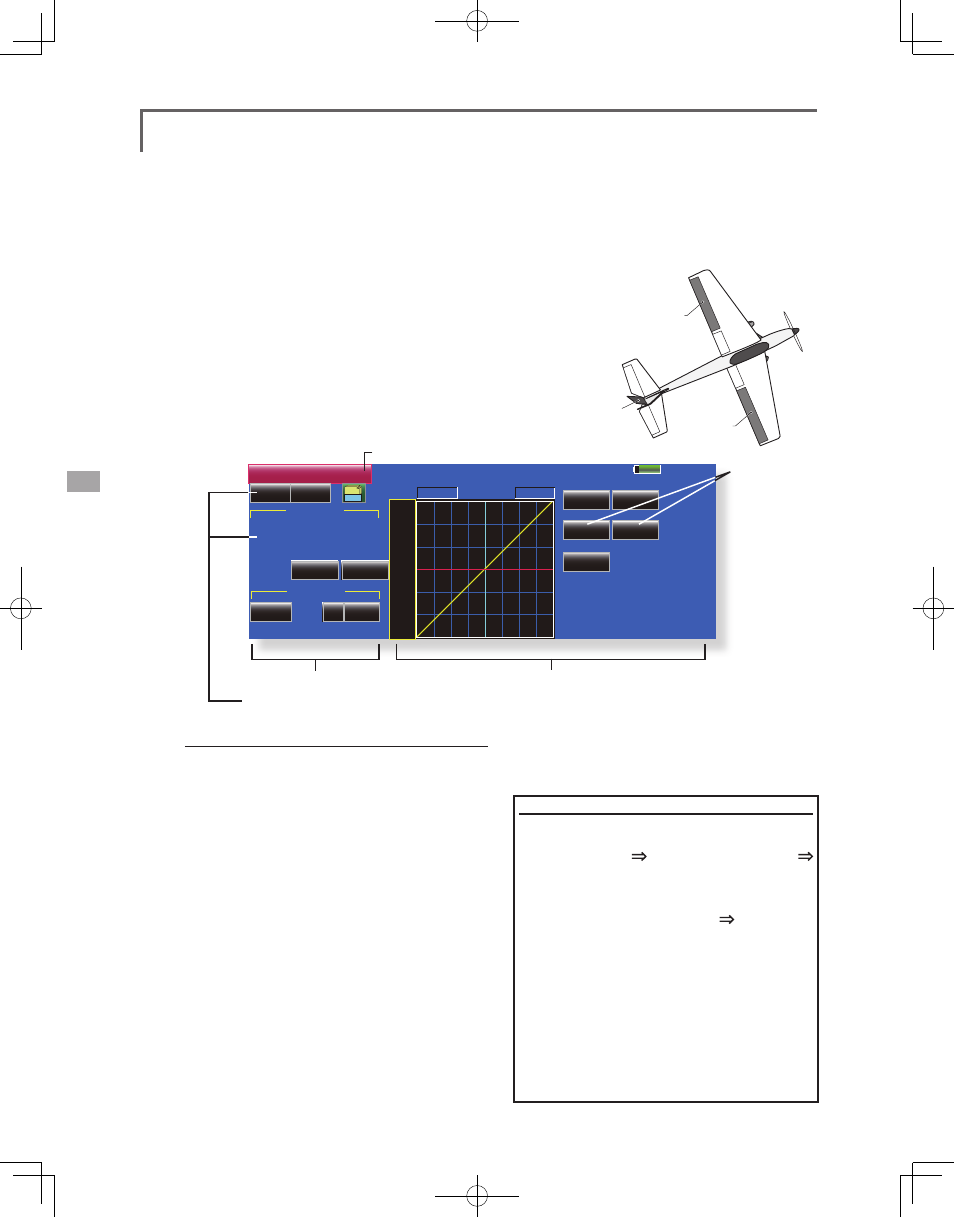

● Touch the [RUD to AIL] button in the Model Menu to
call the setup screen shown below.
● Mixing curve setting ● Fine tuning VR setting
● When set to ON by touching [INH], the
memory items are displayed.
● O v e r a l l
adjustment by
R a t e A a n d
Rate B.
on the mixing curve. When the memory mode is
exited, the memorized points are automatically
reflected on the curve. (When the memory
function is used, "Line" type curve is automatically
selected.)
● Linking can be set: Links this mixing to other
mixings.
● The mixing rate can be fine-tune by setting a VR.
Setting method
● Touch the "INH" button and set the function to ACT
(ON).
● When setting a switch, touch the [ON] button to
call the screen, and then select the
switch and set its ON direction. (Always ON at
"ON" setting)
● When setting a VR, touch the Fine tuning "NULL"
button to call the screen and then select
the VR. The adjustment rate and adjustment
direction can be set,.
The VR operation mode can also be set.
● A mixing curve can be set.
● The curve display mode can be changed.
Single : Displays the mixing curve only
Fine tuning : Displays the adjustment rate of the
fine tuning VR
All Cond. : Displays the mixing curve of all the
conditions. (When conditions are set)
● When linking: Touch the Link button and set it to
ON.
Memory function usage method
(Example) Using the memory function with an F3A
airplane (knife edge correction)
*When call switch [SW-A] and memory switch
[SW-H] were set
[Memory function operation]
1. Memory function mode: [Manual] [Memory]
2. When the memory switch (SW-H) was set to ON
while performing aileron correction when rudder
was applied at knife edge, the point position at
that time is memorized. Perform memorization while
changing the left and right stick positions.
3. To recall the memorized positions, set [SW-A] to ON.
The memorized correction rate is reflected on the
curve, and operation is simultaneously set.
Note: When memorized from manual before flight, be
sure that the memory SW is not accidentally set to ON
and incorrect mixing setting is not applied when taxiing,
starting the engine, etc.
