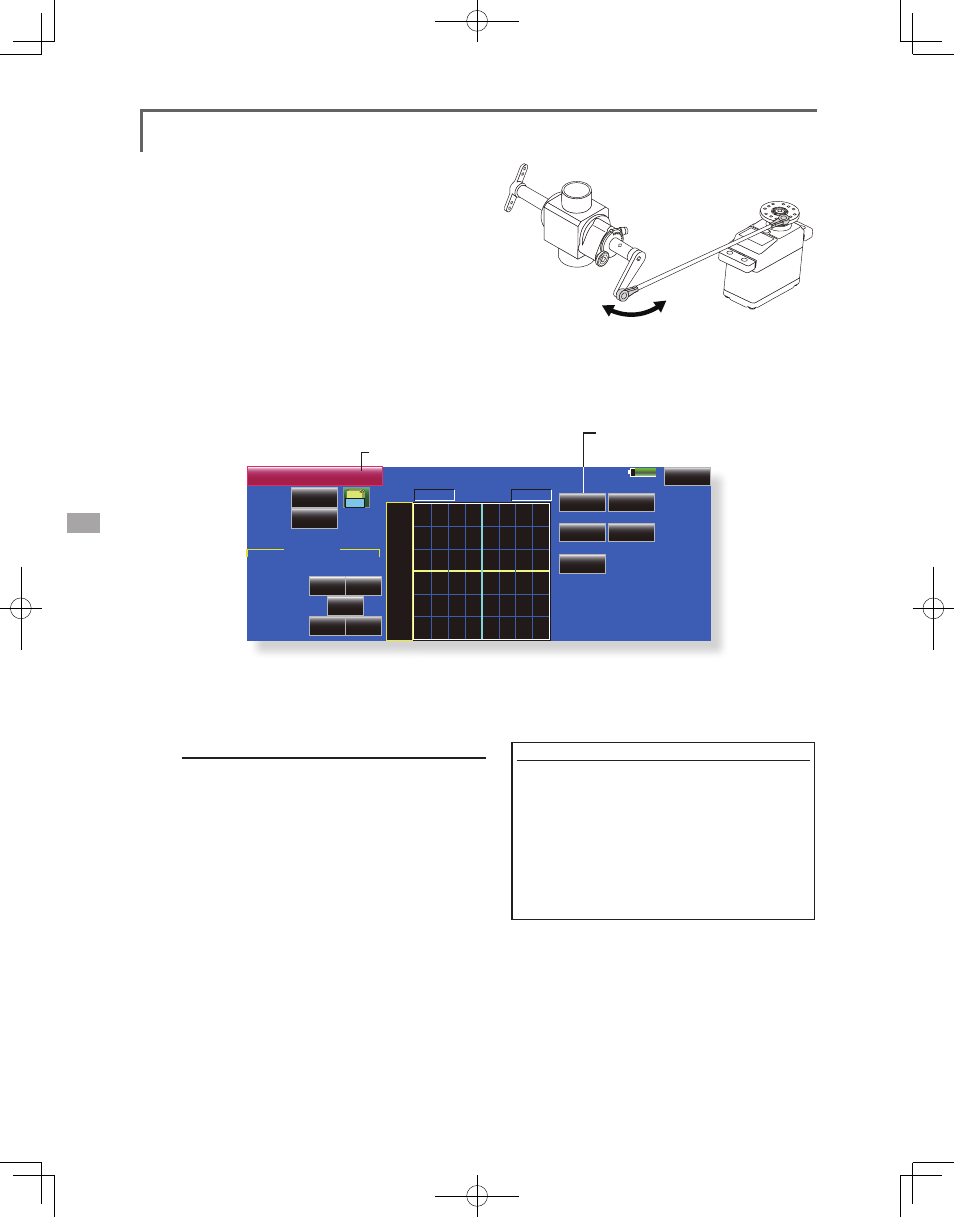

PIT to Needle Mixing
This mixing is used when the engine is equipped
with needle control or other fuel-air mixture
adjustment. A needle curve can be set.
The Acceleration function which can temporarily
increase needle operation during throttle
acceleration/deceleration operation can be set.
The rise characteristic of the needle servo during
acceleration and deceleration operation can be
adjusted.
● Return to Model Menu
● Touch the [PIT to Needle] button in the Model
Menu to call the setup screen shown below.
Setting method
●When using this function, touch the [INH] button
and display [ON] or [OFF].
●When you want to set the same settings to other
conditions, select the group mode (Gr.). When
you want to add settings to the selected condition
only, select the single mode (Sngl).
●A needle curve can be set.
●A switch can be set.
When [ON] is set, the function is operated by
merely selecting the condition.
When setting and [ON]/[OFF] switch, touch
the [ON] button and set the switch and its ON
direction at the screen.
< Acceleration function setting>
●Acceleration can be set at both setting
at acceleration (High) and setting at
deceleration (Low).
●The acceleration rate (Rate) and the return
time after operation (Dump.) can be set.
●An operation point (Operation Point) at
acceleration and deceleration can be set.
When an operation point was exceeded,
acceleration operation is performed.
● Normally, use [Line] type.
