116
RUDDER 2 RUDDER
RUDDER
at V-TAIL
RUDDER 2
RUDDER 1
at Flying wing
AIL 3
(Chip Aileron)
AIL 4
(Chip Aileron)
AIL1
(Main Aileron)
AIL1
AIL2
AIL 2
(Main Aileron)
85%
AIL to RUD
INH
POS +0.0%
Switch
Display
ACT
Fine Tuning
Linear Separate
+100.0% +100.0%
Model 1 Condition 1
Gr. +150
+100
+50
+0
-50
-150
-100
RATE
Rate A
+0.0%
Offset
Rate B
+0.0%
Single
OFF
NULL 0% +
( +0%)
●Return to Model Menu

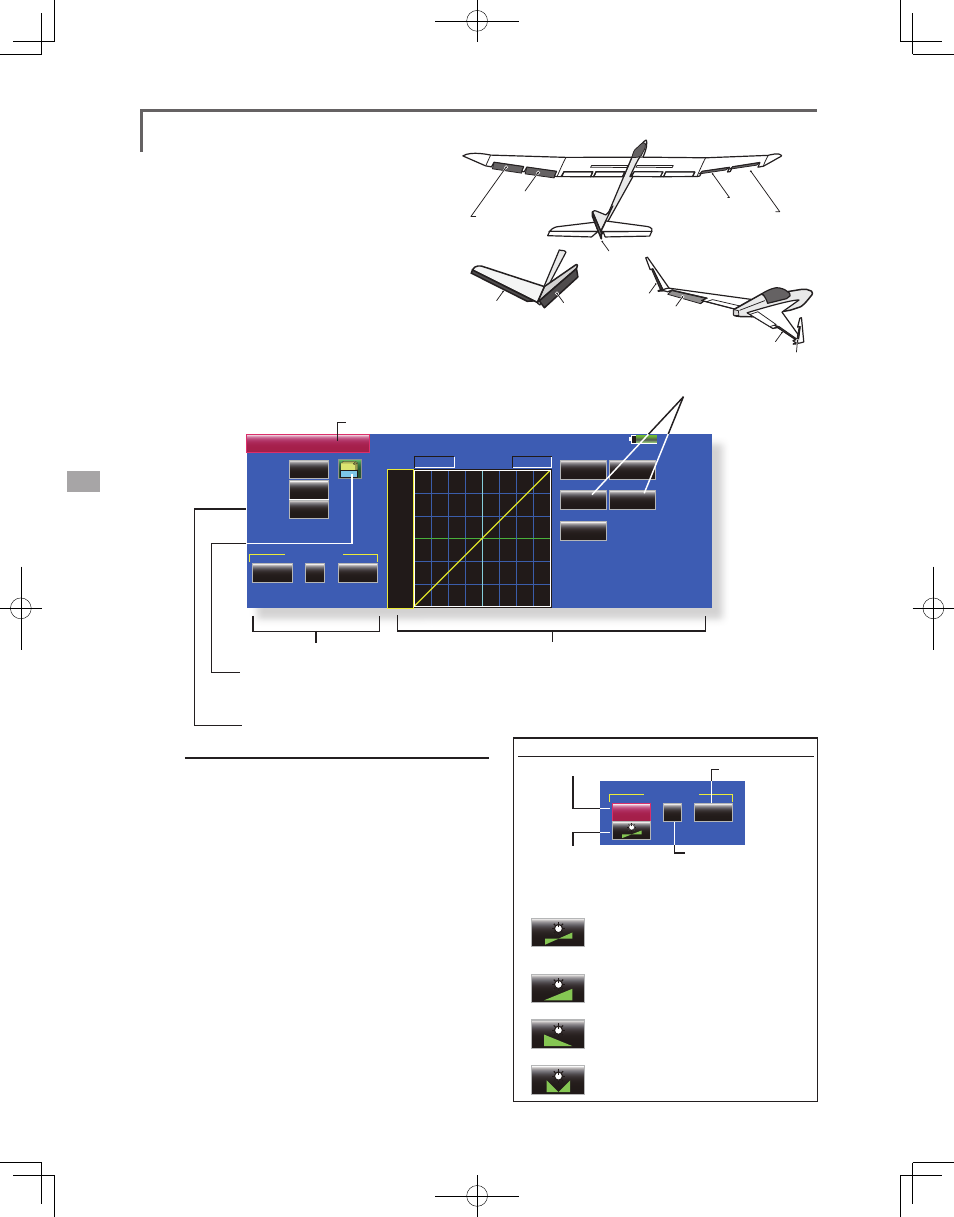

AIL to RUD [Corresponding model type]: Airplane/glider, general
Use this mixing when you want to mix the
rudders with aileron operation.
● A mixing curve can be set.
● Mixing during flight can be turned ON/OFF by
setting a switch. (Always ON at "ON" setting)
● The mixing rate can be fine-tuned by setting a VR.
● Touch the [AIL to RUD] button in the Model
Menu to call the setup screen shown below.
*The display screen is an example. The actual screen depends
on the model.
● Mixing curve setting ● Fine tuning VR setting
●Group/single mode setting (Gr./Sngl)
● Left/right overall
a d j u s t m e n t b y
Rate A and Rate B
Setting method
● Touch the ACT button and set the function to ACT
(ON).
● When setting a switch, touch the [ON] button of
the switch to call the screen, and then
select the switch and set its ON direction. (Always
ON at "ON" setting)
● When setting a VR, touch the Fine Tuning "NULL"
button to call the screen, and then
select the VR. The adjustment rate and direction
can be set. The VR operation mode can also be
selected.
● A mixing curve can be set.
● The curve display mode can be changed.
Single : Displays the mixing curve only
Fine tuning : Displays the mixing rate of the fine
tuning VR
All Cond. : Displays the mixing curve of all the
conditions. (When conditions are set)
●Curve display mode selection (Single/Fine tuning/All Cond.)
Fine Tuning
LD 0% +
( +0%)
Fine tuning VR setting
Mixing rate 0% at center of VR
When the VR is turned counterclockwise
and clockwise, the mixing rate increases
and decreases, respectively.
Mixing rate 0% at left end of VR
When the VR is turned, the mixing rate
increases.
Mixing rate 0% at right end of VR.
When the VR is turned, the mixing rate
increases.
When the VR is turned to the left or right
of the neutral position, the mixing rate
increases.
● VR selection ● Rate adjustment
● Operation mode selection
*Displayed at VR setting.
● Adjustment direction
setting
[Operation modes]
