160

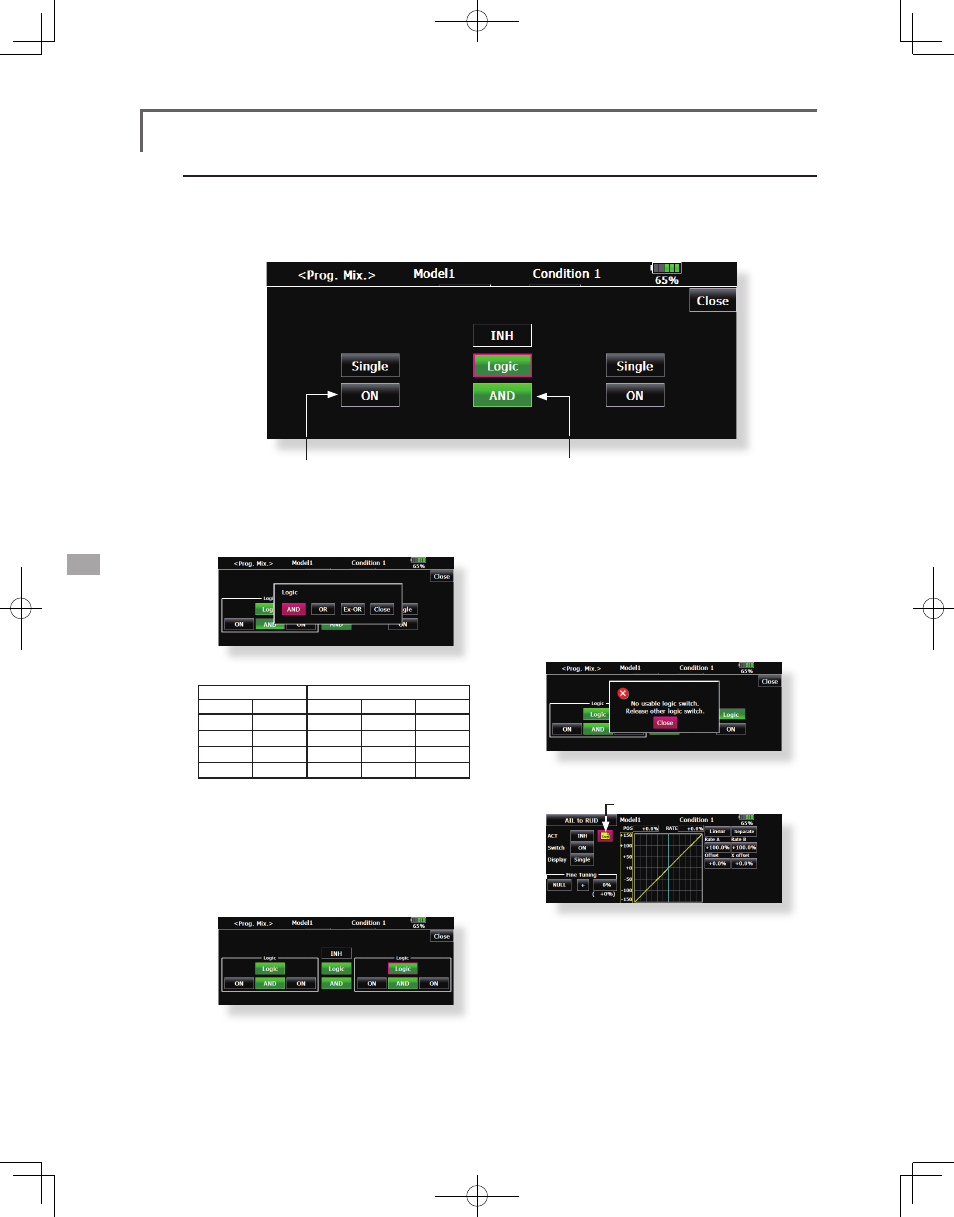

Logic switch
In the Logic screen, the switch selection buttons appear on both the left and right side of the display.
(Logic switch setting screen)
●Logic mode button
1.The logic selection dialogue appears when
you push the logic mode button. The 3 types
of logic, either AND, OR or EX-OR, can be
selected.
Logic combination table:
SWITCH LOGIC
SW1 SW2 AND OR Ex-OR
off off off off off
off on off on on
on off off on on
on on on on off
2. The left and right side of the switch mode
can be set to the logic switch mode as well.
In this case, a maximum of 4 switches can
be assigned to the logic switch. The left and
right logic are calulated first, then the center
of the logic is calculated. Finally, switch on/
off status determined by the 4 switches'
combination.
In the above case, the two switches in the
left are calculated by AND logic. Next the
two switches in the right are calculated as
same way. Finally the first case and 2nd case
are calculated by OR logic.
Caution:
1. The maximum number of the logic switch is 10 for the flight
condition select and 8 for the mixing on/off selection on each
flight condition. The error message will appear when the
exceeded logic switch is going to be selected. In this case,
delete the unused logic switch first, then select the new logic
switch.
2. The mixing on/off switch modes are automatically assigned
by single mode, not supported the group mode.
Assigned to single mode
●Switch selection button
