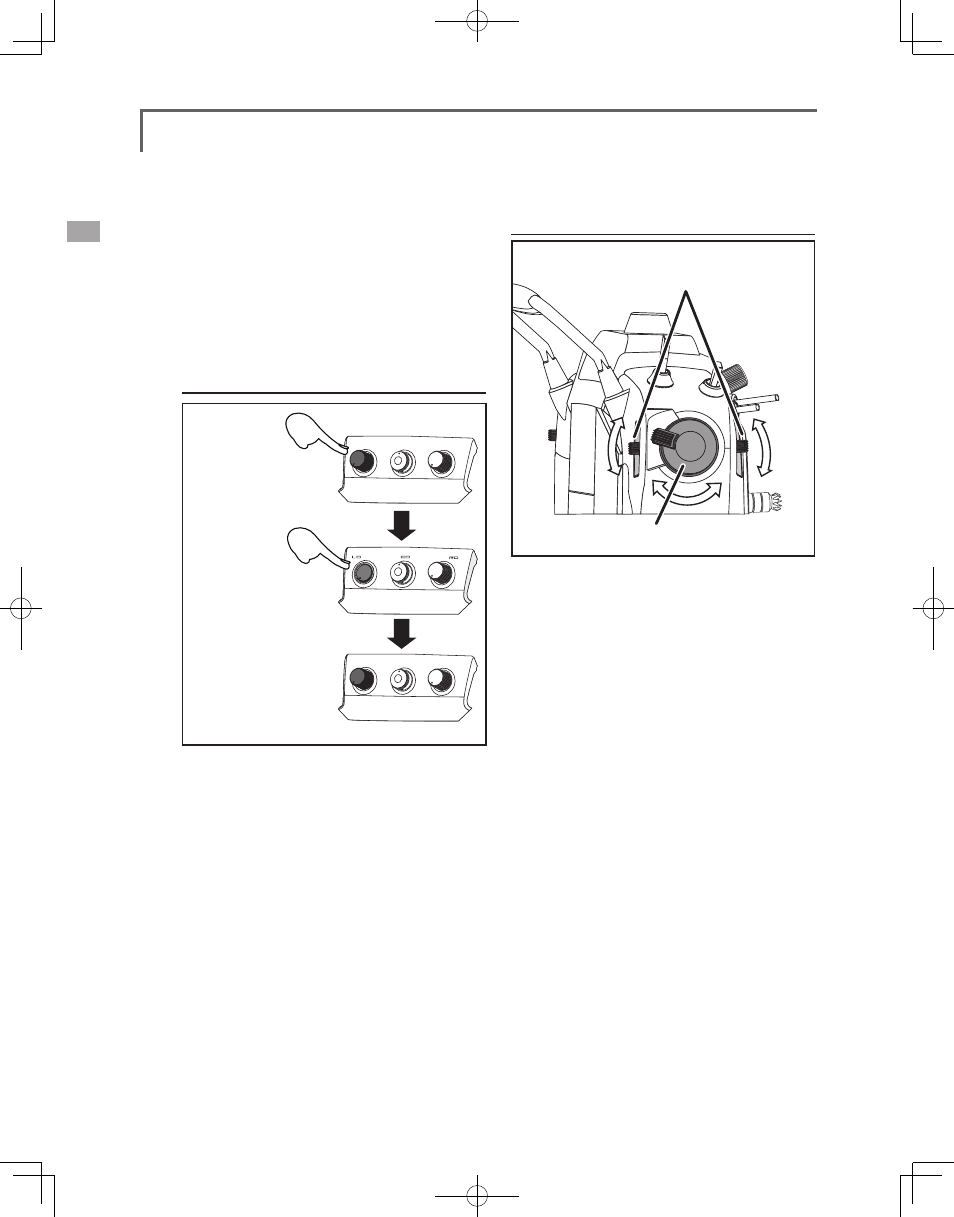

3. Use the attached jig (inside stylus) to turn the
face nuts counterclockwise, this will detach
the switches.
4. To re-attach, use the face nuts to attach
switches from other positions or optional
switches to the switch block.
5. Connect your connectors.
6. Insert the switch block so reconnect the
connectors that it fits correctly into the body
of the transmitter (as shown in the picture)
and use the hexagonal wrench to tighten
the screws.
Volume
Volume LD, CD, and RD:
If you push the volume button in, it will be
locked in place. To release the volume button, push
it in lightly once more.
This volume is digital type (rotary encoder). This
volume works as both a volume and a push-switch.
*T18MZ beeps when the volume knob reaches center.
*You can check the volume position on the Dial Monitor
screen in the Linkage menu.
*You can use each setting screen of the mixing functions to
select volumes and define the direction of its movement.
Slide Lever
LST (Left), RST (right):
Outside levers
LS (Left), RS (right):
Inside levers: Each lever has two ends, one at the
front and the other at the back of the transmitter.
*It will beep when the lever is set to the center.
*You can check the lever position on the dial-monitor screen
in the linkage menu.
*You can select a slide lever and set the movement direction
on the setting screen of mixing functions.
