119
85%
Camber Mix Model 1 Condition 1
Camber AFR
Aileron
Flap
Elevator
Group
ON Switch
ACT/INH INH
Curve and Rate
Gr.
Cond. Delay
OFF Cut SW
0
85%
+0%
Rate 1 Rate 2
IN Out
POS +0.0%
AIL2
AIL3
AIL4
AIL
Master
Linear Separate
+100.0% +100.0%
Model 1 Condition 1
RATE
Rate A
+0.0%
Offset
Rate B
+0.0%
+150
+100
+50
+0
-50
-150
-100
Camber (AIL)
+0%
+0%
+0%
+0%
+0%
+0%
+0%
Speed 0 0
●Return to Model Menu
Camber Mix [Corresponding model type]: Airplane/glider, 2 ailerons or more
This function adjusts the AFR (D/R) rate
of camber operation which operates the wing
camber (ailerons, camber flaps, brake flaps) in
the negative and positive directions. The aileron,
flap, and elevator rates can also be adjusted
independently by curve, and attitude changes
caused by camber operation can be corrected.
*Initial setting assigns camber operation to side lever
RST( Stick Mode 2) LST( Stick Mode 1).
● The direction of the aileron, flap, and elevator
servos can be adjusted by a curve. When
direction is reversed at the linkage by this mix, you
can reverse it by change the rates to either + or -
(positive or negative).

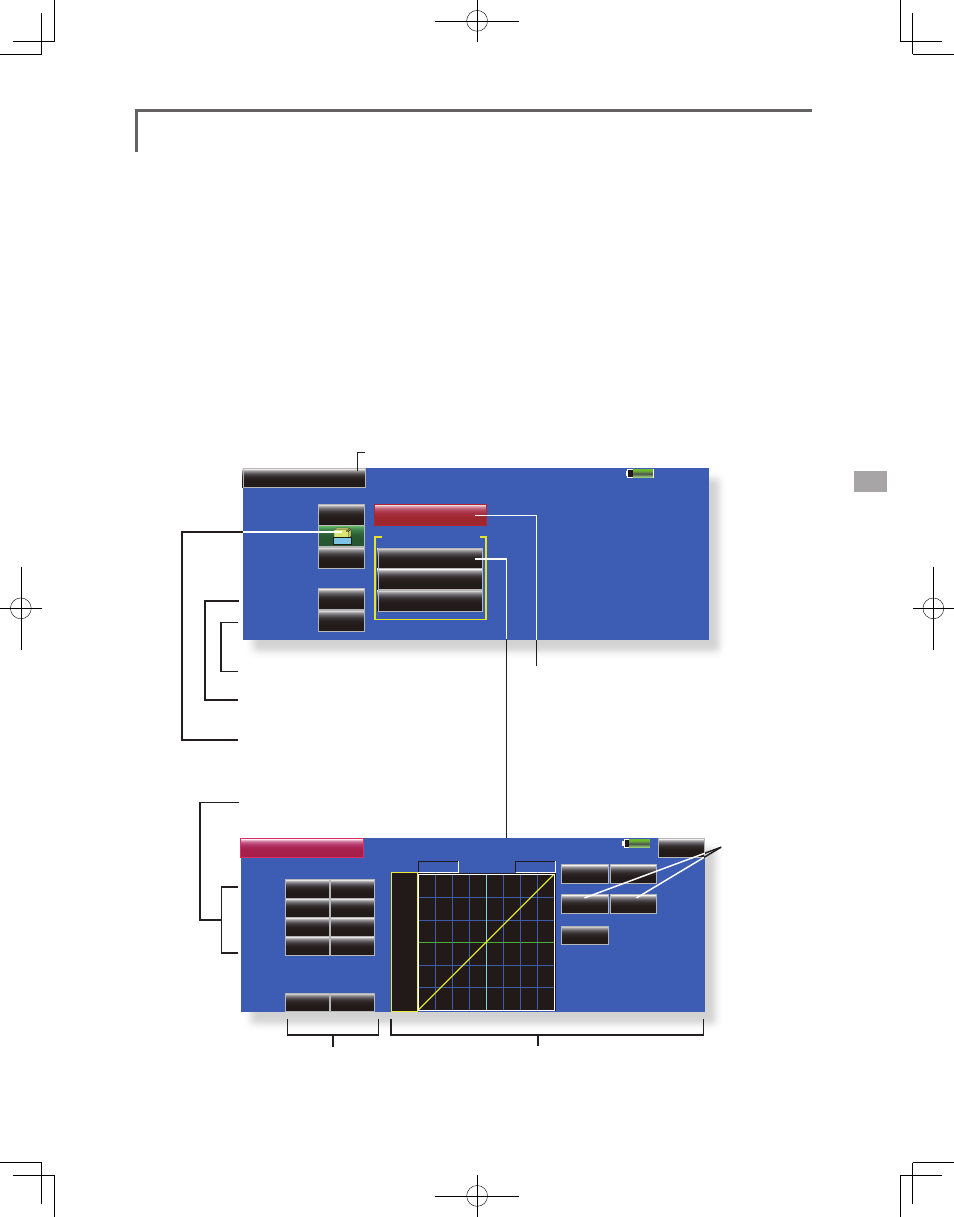

● Touch the [Camber Mix] button in the Model Menu to call the setup
screen shown below.
*The display screen is an example. The actual screen depends on the model type.)
● Mixing during flight can be turned ON/OFF by
setting a switch. (Always ON at "ON" setting)
● A delay can be set for each condition. A cut
switch which can turn OFF the delay function can
be set.
● The speed of the aileron, flap, and elevator servos
can be set. (IN side/OUT side)
●Condition delay cut switch
●Condition delay setting
●Group/single mode switch (Gr./Sngl)
● Camber AFR (D/R) setup screen call
(Curve/rate setup screen)
● Mixing curve setting ● Servo speed setting
●Overall
adjustment
by Rate A
and Rate B
●Aileron rate adjustment
