135
85%
+100%
RUD ELE
1/2 Model 1 Condition 1
Snap Roll
-100%
+100%
-100%
OFF
Switch
OFF
OFF
OFF
OFF
ACT
OFF
OFF
OFF
Right / UP
Right / Down
Left / UP
Left / Down
+100%
AIL
+100%
-100%
-100%
+100%
-100%
-100%
+100%
Rate
Group
Gr.
ON Safety SW
Master Mode
OFF Master SW
85%
2/2 Model 1 Condition 1
Snap Roll
Right / UP
Right / Down
Left / UP
Left / Down
AIL ELE RUD
IN Out
0 0
0 0
0 0
0 0
IN Out
0 0
0 0
0 0
0 0
IN Out
0 0
0 0
0 0
0 0
Speed

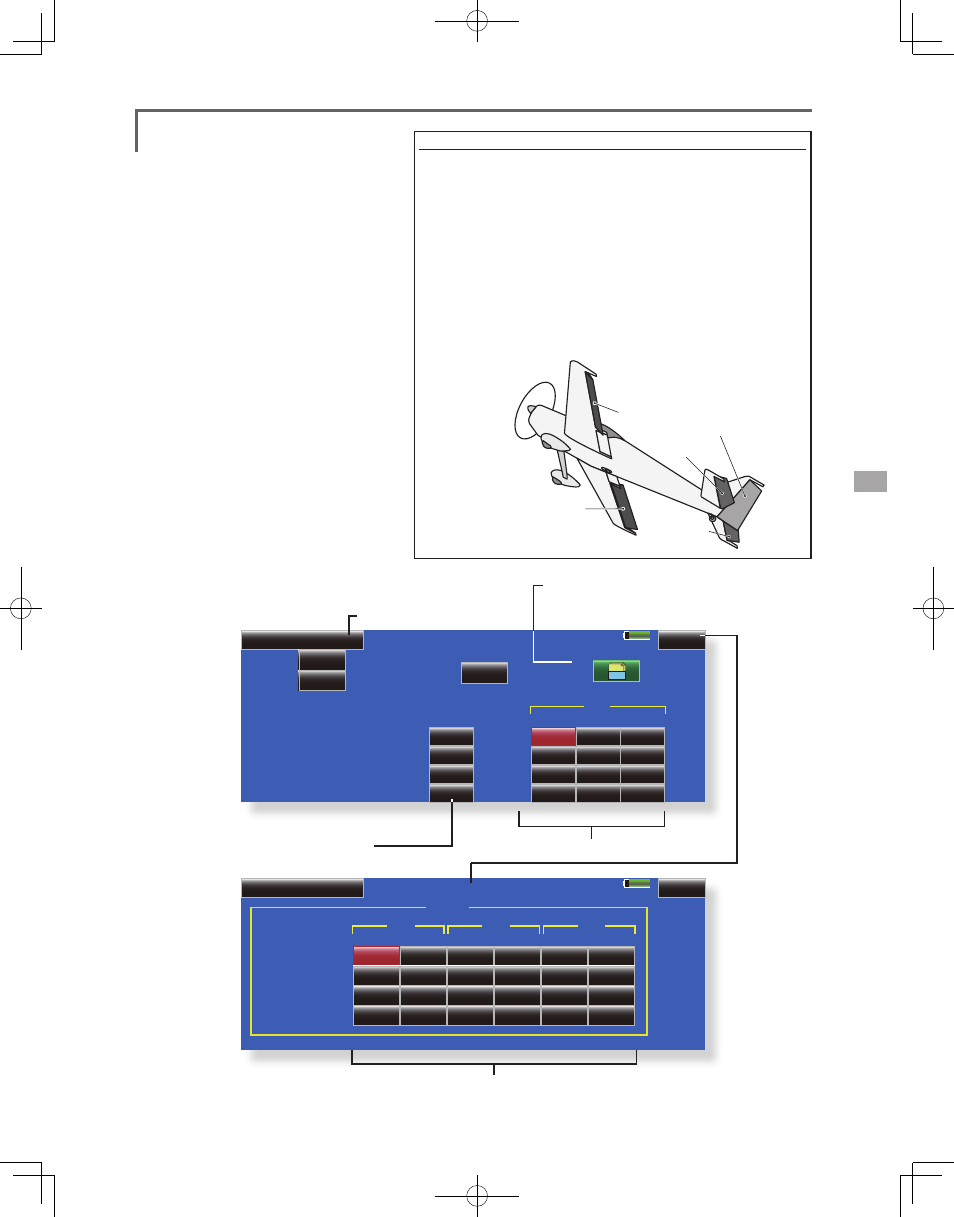

Snap Roll [Corresponding model type]: Airplane, general
This function selects the switch and
rate adjustment of each rudder, (ailerons,
elevators, or flaps) when a snap roll is
performed.
● Four snap roll directions can be set. (Right/
up, right/down, left/up, left/down)
● Operation mode: When [Master] mode
is selected, the Snap Roll function is
turned ON/OFF by master switch in the
state in which the direction switch was
switched to the direction in which you
want to snap roll. When [Single] mode is
selected, snap roll in each direction can
be executed by means of independent
switches.
● A safety switch can be set. As a
safety measure, the switch can be
set so that snap roll is not executed
when, for instance, the landing gear
is lowered, even if the switch is turned
on accidentally. The snap roll switch is
activated only when the safety switch is
ON.
● The operation speed of the aileron,
elevator, and flap servos can be adjusted
for each snap roll direction. (In side/Out
side) (Page 2/2)
(Example) Setting example for F3A
● Mode: [Master]
● Safety SW: [SW-G] (Safety measure)
● Master SW: [SW-H] (Main switch for executing snap roll)
● Direction switches:
*The snap roll up side left and right and down side left and right direction switches
are selected here.
Right/Up: OFF [SW-D] Right/Down: OFF [SW-D] Left/Up: OFF [SW-A]
Left/Down: OFF [SW-A]
● Speed adjustment (Screen 2/2)
The operation speed of each control surface when
the snap switch is ON can be changed and snap roll
executed by stick while there is switch operation can be
performed.
● Return to Model Menu
● Curve display mode switching
(Single/Fine tuning/All Cond.)
● Group/single mode switching (Gr./Sngl)
(For more information, see the description at the back
of this manual.)
● Rate adjustment of each rudder ● Direction switches
● Adjustment of the servo speed of each rudder
AIL1
AIL2
ELEVATOR
ELEVATOR 2
RUDDER
(at AILEVATOR)
