17

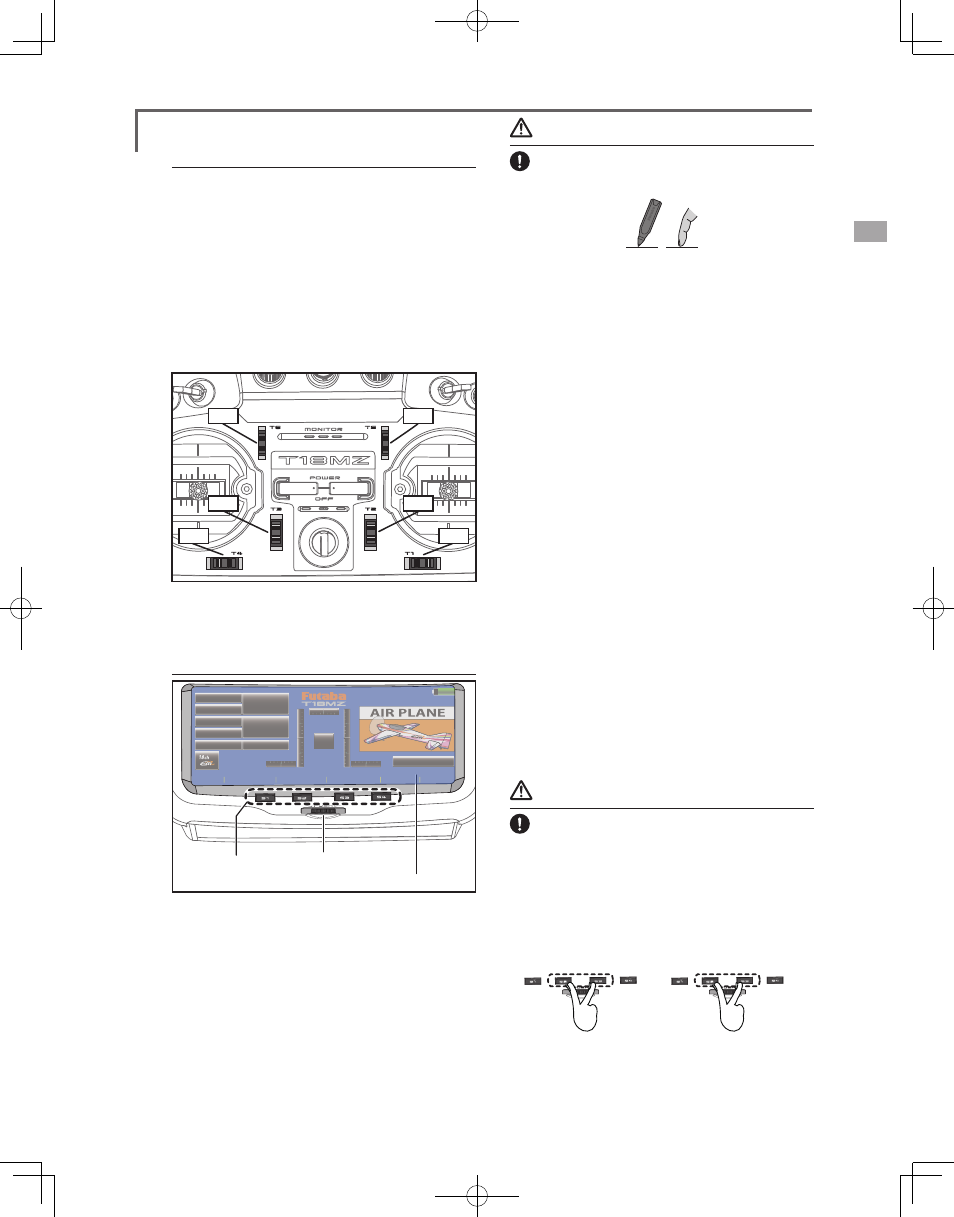

Digital trim
This transmitter is equipped with digital trims.
Each time you press a trim button, the trim position
moves one step. If you continue pressing it, the trim
position starts to move faster. In addition, when
the trim position returns to the center, the tone will
change. You can always monitor trim positions
graphics on the screen. To change the trim rate,
you must activate this through the function menu,
within the linkage menu. Touch the trim button and
you will access another screen which enables you
to change the trim percentages.
●T6 ●T5
●T3
●T4 ●T1
●T2
Note: The trim positions you have set will be stored in the
non-volatile memory and will remain there.
Touch Panel/ Rotary Key/ Direct Key
●Rotary Key
●LCD Display (Touch Panel)
●Direct Key
(S1-S4)
Futaba Corporation
Condition 1 85% Timer 1
10:00 (UP)
10:00 (UP)
00:00:00
Timer 2
System
System Menu
Battery1 0.0V
+0
+0 +0
+0 +0 +0 +0
Battery2 0.0V
Battery3 0.0V
Linkage
Linkage Menu Model Menu Return
ʻ11/08/10
15:11:25
Model1
00:00.0
00:00.0
RF
OFF
Touch panel, rotary keys and direct keys are used
for entering data.
Touch Panel
Touch the panel with your finger or the attached
stylus pen, which is also used as a toolbox, to enter
data.
Caution
Touch softly the Touch Panel with the stylus
pen or your fingertips.
or
*Plastic film is attached to the touch panel. Please be careful
so that you don't scratch the touch panel with anything hard
such as a metal object. Don't push the touch panel with
excessive force or drop anything on the panel.
*Although you may find some air bubbles under the plastic
panel due to environmental changes such as temperature, it
is not a defect and will cause no problems.
Rotary key
In addition to touch panel, you can select items
by rotating the rotary keys to the left or to the right.
*There is a function which cannot be accessed by the Rotary
Key.
Direct key
You can directly call your favorite functions or
menu screens.
(The default setting at the factory)
S1: System menu
S2: Linkage menu
S3: Model menu
S4: Return
[How to change assignment of the direct key]
1. Open the screen you want to call. Then push
S1 and S4 keys simultaneously. (You will see
the direct key setting screen.)
2. Select the direct key.
3. The [Enter ]key is pressed.
4. The [Yes] key is pressed.
Danger
The T18MZ's touch screen is very sensitive.
To avoid accidently activating it during a
flight, it is suggested that it be locked. Due to
the new sensitive type touch screen, if a neck
strap hook, servo extension, or even your hand
during a flight touches the screen, it could be
dangerous. Please use the touch panel lock for
added safety during flight.
●Direct Key
(S2-S3)
The by
and pushed.
●Direct Key
(S2-S3)
The by
and pushed again.
Locking the LCD touch screen.
* Maintain a touch-panel lock irrespective of ON/OFF of a
transmitter.
