127
85%
Model 1 Normal
Speed
Cond. Delay
Mode Manual
Group
ON Switch
Cut Switch OFF
0
0 0
0 0
Delay
Fine Tuning
NULL Control ACT/INH
AIL
In Out
FLP
0 0 ELE
INH
Gr.
1/2 Airbrake
●Return to Model Menu
● Group/single mode switching
(Gr./Sngl)
● When using a fine tuning VR, touch this
button to call the screen.
● Condition delay setting (for a
description of the setting method,
see the description at the back of
this manual) and cut switch setting.
● Ailerons, flaps, an elevators servo
speed setting
(For a description of the setting method, see the
description at the back of this manual.)
●Manual/Auto mode selection
Manual: Switches the function ON/OFF by switch
Auto: Trim mix function call can be linked to a stick,
etc. A stick switch, etc. separate from the function
ON/OFF switch is set.
(Airbrake setup screen 1/2)
Airbrake [Corresponding model type]: Airplane, general
This function is used when an air brake is
necessary when landing or diving, etc.
The preset elevators and flaps (camber flap,
brake flap) offset amount can be activated by a
switch.
The offset amount of the aileron, elevator, and
flap servos can be adjusted as needed. Also the
speed of the aileron, elevator, and flap servos can
be adjusted. (IN side/OUT side) A delay can be set
for each condition, and a Cut switch which will
turn OFF the delay can be chosen. Trim amounts
can be fine-tuned by setting a VR You can also
set the Auto Mode, which will link Airbrake to a
stick, switch, or dial. A separate stick switch or
dial can also be set as the ON/OFF switch.

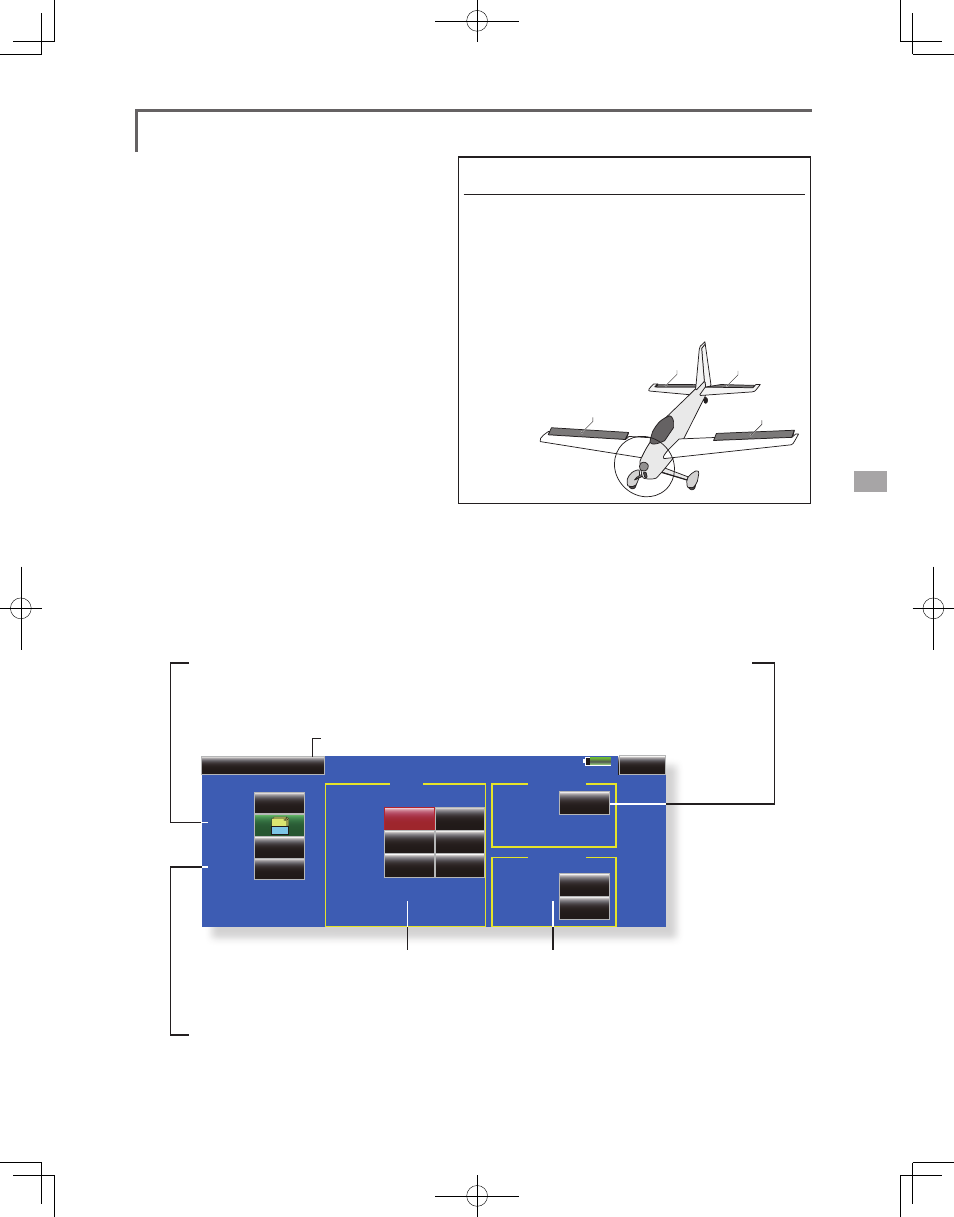

● Touch the [Airbrake] button in the Model Menu to call the setup screen shown
below. (The display screen is an example. The actual screen depends on the
model type. The screen shown below is for 4 ailerons and 4 flaps.)
● Touch the ACT button and set the function to ACT(ON).
● When setting a switch, touch the Switch button to call the screen, and
then select the switch and set its ON direction. (Always ON at "ON" setting)
Setting example for F3A and other flaperon
specifications
(When 2 ailerons model type selected)
(Page 2/2)
Offset rate:
AIL: [-35~-45%], AIL2: [-35~-45%], ELE: [+5~7%]
Note: The input numerics are examples. Adjust the travel to match the
fuselage.
(Page 1/2)
ACT: [ON]
Group: [Sngl]
Switch: [SC-C]
Mode: [Manual]
AIL1
FLP 2
ELEVATOR
ELEVATOR 2
(at AILEVATOR)
