112
AIL 3
(Chip Aileron)
AIL 4
(Chip Aileron)
AIL1
(Main Aileron) AIL 2
(Main Aileron)
85%
AIL Differential
100%
Left Right
POS +0.0%
100%
100% AIL2 100%
100% AIL3 100%
100%
NULL
AIL4
Fine Tuning
Fine Tuning Curve --
100%
AIL
Master
Linear Separate
+100.0% +100.0%
Model 1 Condition 1
Gr. +100
+50
+0
-50
-100
RATE
Rate A
+0.0%
Offset
Rate B
+0.0%
●Return to Model Menu

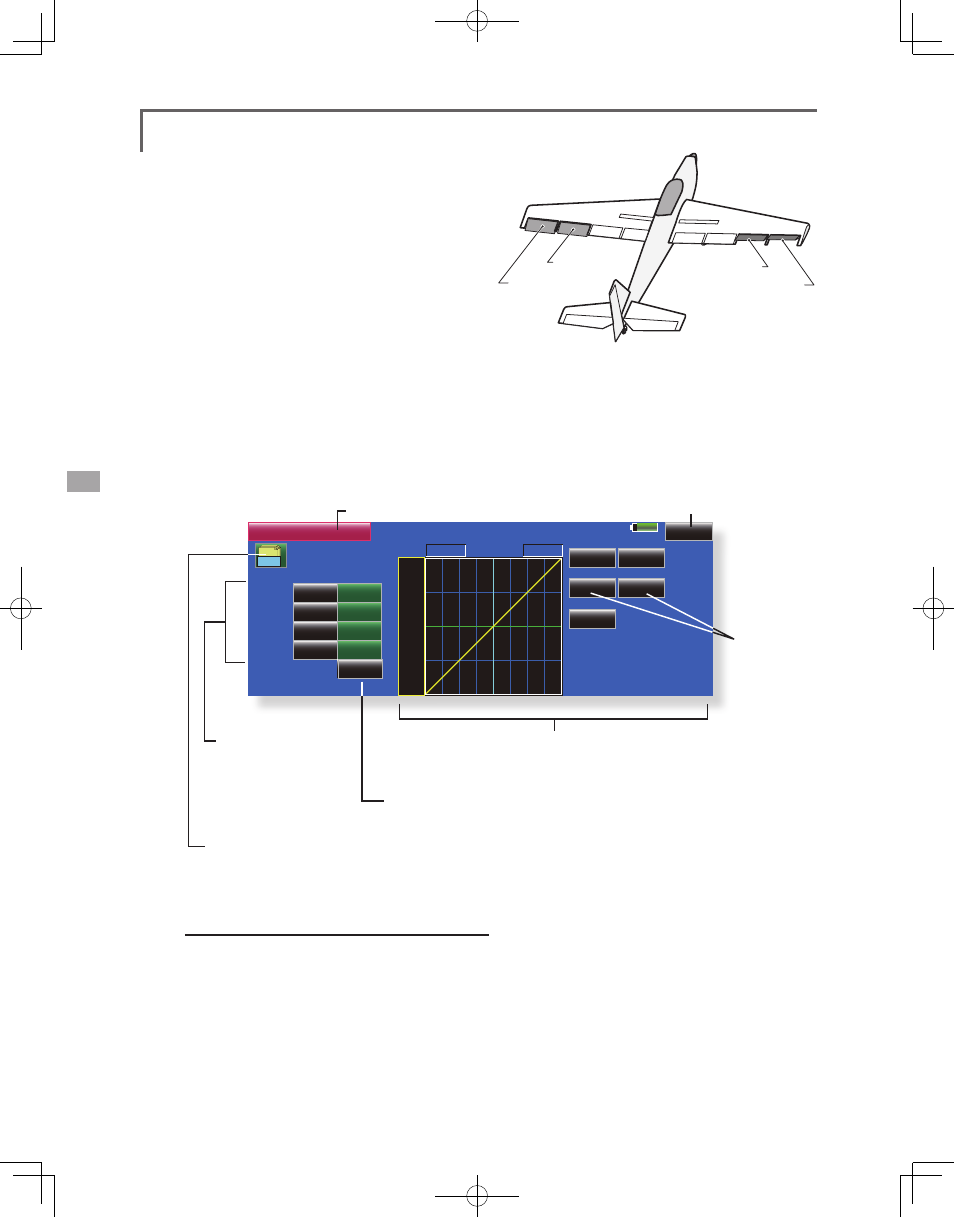

● Touch the [AIL Differential] button in the Model Menu to
call the setup screen shown below.
AIL Differential [Airplane/glider, 2 ailerons or more
The left and right ailerons differential can be
adjusted independently. The differential rate can
also be adjusted according to the flying state by
setting a fine tuning VR.
●A fine tuning curve can be set.
Note: Aileron up/down setting (%) reset is +100%
when reset when setting is +, and -100% when reset
when setting is -. Left and right mixing causes + and
- to change. Before flying, confirm the direction of
operation.
● Calls the AFR screen directly
w h e n a d j u s t i n g a i l e r o n
operation AFR.
● Fine tuning VR setting
*The graph is operated by setting a VR, etc.
● Group/single mode switching (Gr./Sngl)
(For more information, refer to the description at the
back of this manual.)
● Aileron left/right
adjustment
*The display screen is an example. The actual screen depends on the
Model Type.
● Overall
adjustment
by Rate A
and Rate B.
*The display is reversed by
mixing with aileron operation
● Fine tuning curve setting
(For a description of the setting
method, see the description at the
end the manual.)
Setting method
● Touch the aileron (AIL) 1~4 left (or right) button,
and adjust the aileron angles when the stick is
moved to the left (or right) end.
*The aileron AFR screen can be directly called from the AIL
Differential setup screen. ([Master] button)
● When setting the fine tuning VR, touch the "NULL"
button to call the screen, and then
select the fine tuning VR.
● The fine tuning rate can be set by curve.
