151
85%
NULL
ACT
OFF
Switch
Rate1
Model 1 Governor
50.0%
Rate CTRL Rate Group
Mode
+ 0%
%
2000
2000rpm
1500rpm
1000rpm
Normal
( 50.0%) ( + 0.0%)
Rate2
Rate3
Fine Tuning
NULL OFF 50.0% + 0%
( 50.0%) ( + 0.0%)
OFF 50.0% + 0%
( 50.0%) ( + 0.0%)
INH
INH
INH NULL
Gr.
Gr.
Gr.
Set GOV
Governor Mixing
This is used to switch the RPM of the helicopters
head. Up to 3 rates can be set for each condition.
*The governor is used by connecting the governor speed
setting channel to governor function.
*When using an independent governor [ON]/[OFF] switch,
connect the AUX([ON]/[OFF]) connector of the governor to
Governor2 and set the switch to Governor2 at the Function
menu of the Linkage Menu.
● Return to Model Menu

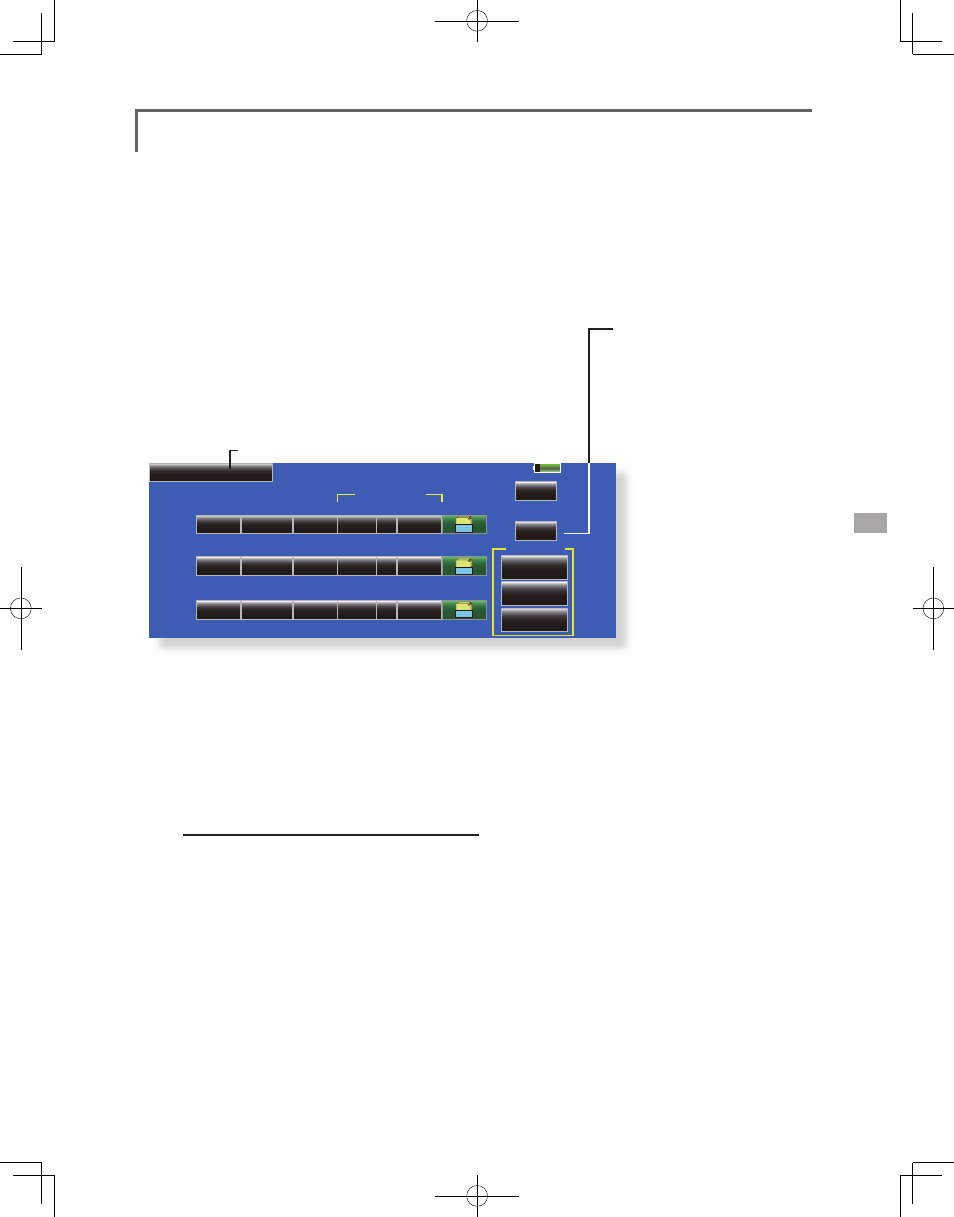

● Touch the [Governor] button of the Model
Menu to call the setup screen shown below.
● When the “Mode” buttonon
t h e G o v e r n o r s c r e e n i s
pressed, the display mode is
switched.
2000: 2000rpm mode
2500: 2500rpm mode.
● The 2500rpm mode and
2000rpm mode are different
when the rate is 50.0%
(=2500rpm) or greater. At
rates below 50.0%, the rpm
displayis the same for both
modes.
● When the 2500rpm mode
is set,100.0%=2500rpm.
T h e m a x i m u m v a l u e i s
110.0%=2700rpm.
● When the 2000rpm mode
i s s e t , 1 0 0 . 0 % = 2 0 0 r p m .
T h e m a x i m u m v a l u e
i s 1 1 0 . 0 % = 2 1 0 0 r p m .
(Conventional specifications)
● There is no change in the
transmitter output even
when the 2500rpm mode
and 2000rpm mode are
s w i t c h e d . C a l i b r a t i o n
must be performed at the
governor side.
Setting method
● Touch the [INH] button of the rate to be used and
display [ON].
● When you want to set the same settings to other
conditions, select the group mode (Gr.). When
you want to add settings to the selected condition
only, select the single mode (Sngl).
● Three speeds (rates) can be set for each condition.
(Rate 1/Rate 2/Rate 3)
● End point initialization
The governor output channel end point(ATV)
“travel” and “limit” are now initialized when the
governor setting “Operate” button was pressed.
● When switched from INH to ON or OFF,“travel” is
initialized to 100 and “limit” is initialized to 155.
● When “Operate” of rates 1, 2 and 3 is switched
to INH under all conditions, “travel” is initialized to
100 and “limit” is initialized to 135.
*When using the Fuel Mixture function, the mixture servo is
controlled from the governor. When transmitting the mixture
curve data from the transmitter to the governor, the governor
AUX (m.trm) connector must be connected to Governor2
function and governor side setting performed. See the
governor instruction manual.
Note: Always set (Act) and (Trim) to [NULL] for
[Governor] and [Governor 2] of the Function menu.
The subtrim of [Governor] is made 0%.
Make the reverse direction normal.
Also, this mixing and the governor side speed
setting must be matched beforehand by the
following method:
● Set so that when the governor side is placed in
the speed setting item state and [2000rpm] of
Set GOV of the screen above is touched, the
governor speed is set to "2000", when the [1500rpm]
button is touched, the governor speed is set to
"1500", and when the [1000rpm] button is touched,
the governor speed is set to "1000".
● When you want to read the speed directly, press
the [%] button and display [rpm].
● The speed can be witched by setting a switch.
Also, when [OFF] is set instead of speed setting,
the governor can be turned [ON]/[OFF] without
setting a separate [ON]/[OFF] switch.
● A speed fine tuning VR can be set.
*VR selection, adjustment width, and adjustment direction
can be set.
