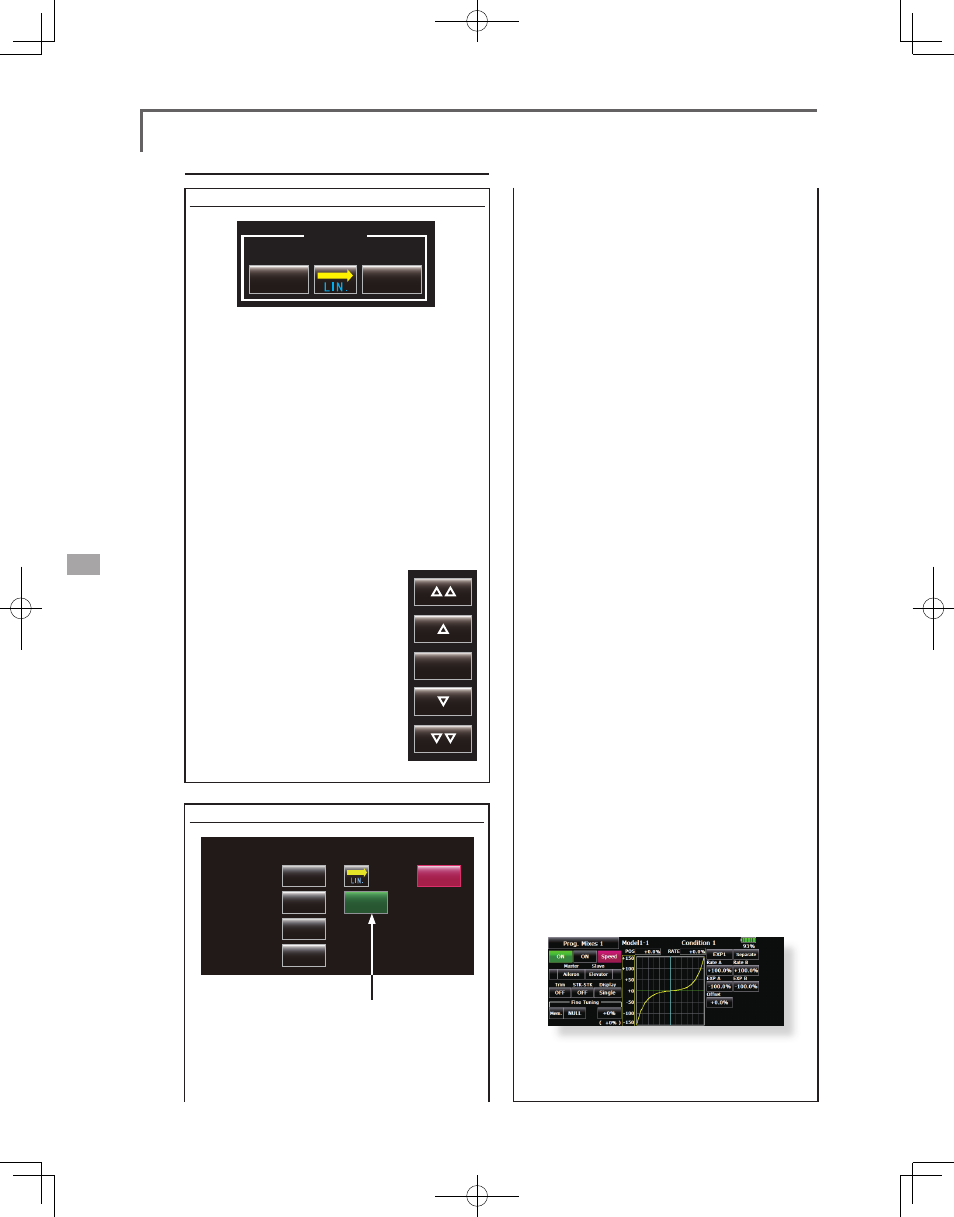

Servo speed setting (1)
IN
0 0
Speed
OUT
The speed during operation (including flight
condition switching) can be adjusted. The
servos operate smoothly at a constant speed
corresponding to the speed set for them. The
operation speed (In Speed) and the return speed
(Out Speed) can be set individually.
Switch the operation mode according to the set
function. When the button is touched, it toggles
between [LIN] and [SYM].
"SYM" mode: Mode used with ailerons and
other self-neutral functions
"LIN" mode: Mode used with functions which
hold the operation position of the throttle
and switch channel, etc.
[Setting method]
1. Select the function ([LIN] or
[SYM]) matched to the master
c h a n n e l . E a c h t i m e t h e
button is touched, it toggles
between [LIN] and [SYM].
2. Touch the In or Out Speed
button and set the servo
speed.
Initial value: 0
Setting range: 0~27
Operations related to servo speed
speed corresponding to the set speed.
Master mode: The servo movement is
traced by the setting curve. The trace
speed is adjusted by in and out speed.
[Setting method]
1. When setting the servo speed, touch the
Speed button. The Servo Speed setup
screen shown above is displayed.
2. Select the function ([LIN] or [SYM]) matched
to the master channel. Each time the
button is touched, it toggles between [LIN]
and [SYM].
"SYM" mode: Mode used with ailerons and
other self-neutral functions.
"LIN" mode: Mode used with functions
which hold the operating position of the
throttle and switch channel, etc.
3. Touch the In Speed button and set the
servo speed.
Initial value: 0
Setting range: 0~27
4. Touch the Out Speed button and set the
servo speed.
Initial setting: 0
Setting range: 0~27
5. Touch the Start Delay button and set the
delay time from switch ON to the start of
function operation.
Initial setting: 0.0 sec
Setting range: 0~4 secs
6. Touch the Stop Delay button and set the
delay time from switch OFF to the start of
function operation.
Initial setting: 0
Setting range: 0~4 secs
At master mode;
1. Set desired in and out speed.
2. Select the master channel to any toggle
switch.
3. The slave channel's servo traces the setting
curve as the master toggle switch is moved.
Below the case, AUX1 servo traces an EXP1
curve as the SW-F is operated.
Reset
Servo speed setting (2) (Prog. Mix only)
Servo Speed
In Speed
Out Speed
Start Delay
Stop Delay
0 Close
0 Slave
0.0ｓ
0.0ｓ
Speed mode: Slave/Master
The speed mode can be selected.
Slave mode: The speed at programmable
mixing switching can be adjusted. The
servos operate smoothly at a constant
