Chapter 4 Installing the Setup Software

Starting the test mode from the Monitor

Follow the procedure below to start the test mode from the Monitor.

1. Click [COM PORT] to match the computer’s communication protocol with the

current BL-700 communication protocol.

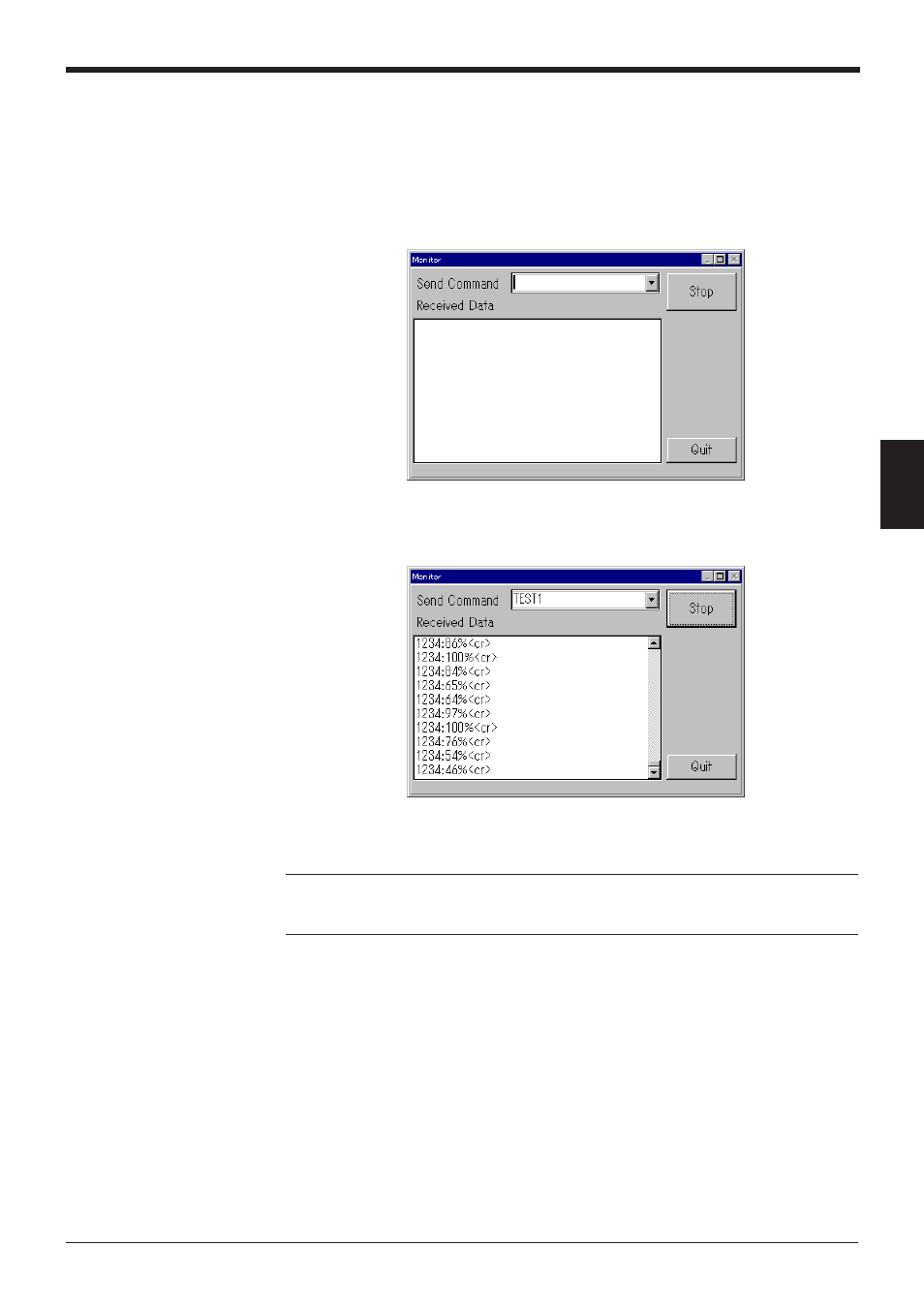

2. Click [Monitor] to display the monitor screen.

3. Enter “TEST1” (uppercase) in the send command column and press the [RE-

TURN] key. Readout rate measurement mode starts and the readout data is
listed sequentially.

4. To quit the test mode, enter “QUIT” in the send command column and press the

[RETURN] key.

Note: When you try to enter the test mode by turning on trigger input, you cannot
use the serial command to enter the test mode.
Commands should be entered in all uppercase characters.
