125
Appendices
Appendices

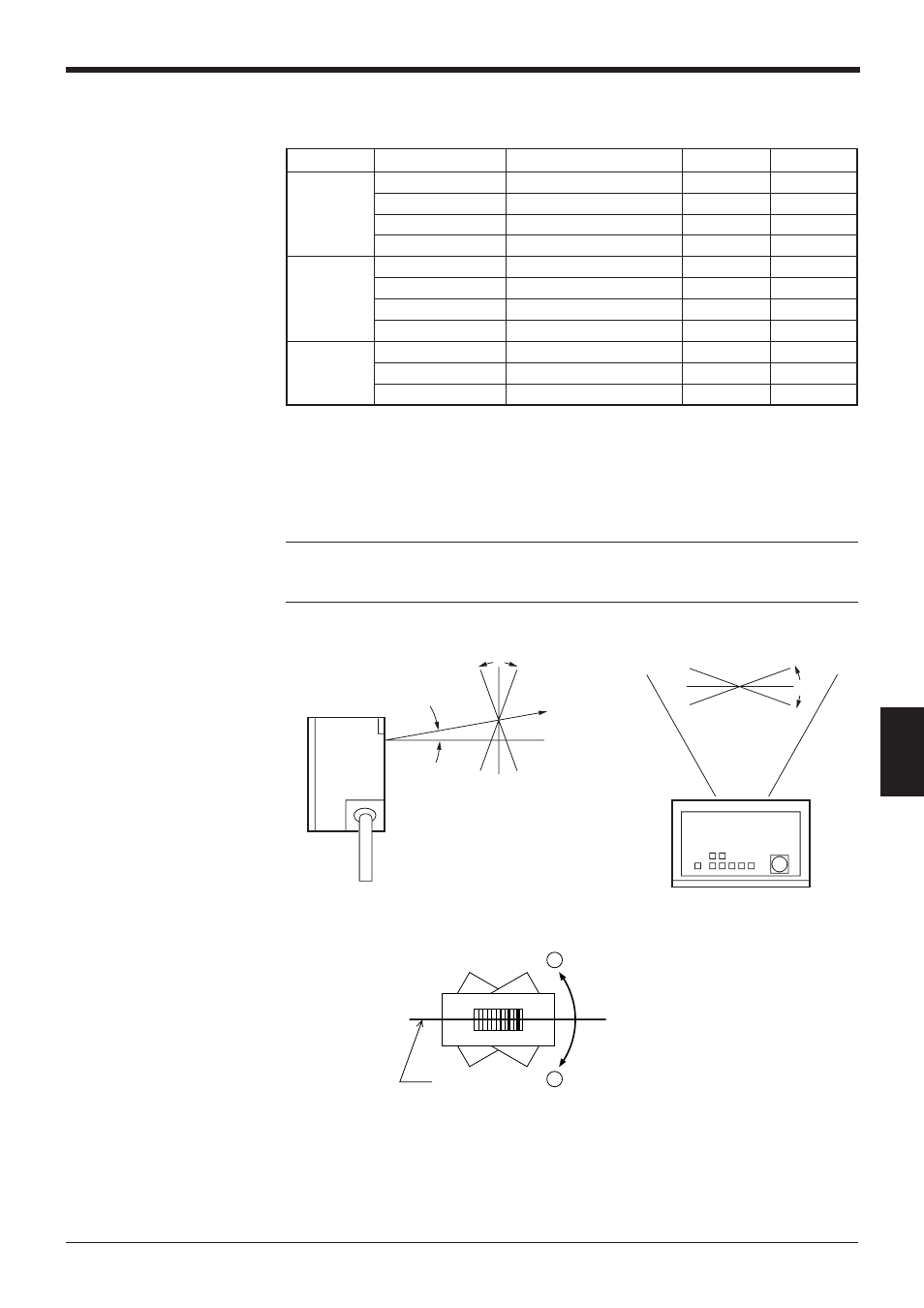

Appendix A.3 Angular Characteristics (Typical)
Model Narrow bar width Skew Pitch Tilt
BL-700/701 0.15 mm -70° to -20°, -5° to +55° ±35° ±50°
0.19 mm -70° to -20°, -5° to +55° ±45° ±50°
0.25 mm -70° to -20°, -5° to +55° ±50° ±50°
0.5 mm -70° to -20°, -5° to +55° ±55° ±50°
BL-740/741 0.25 mm -70° to -20°, -5° to +55° ±35° ±30°
0.32 mm -70° to -20°, -5° to +55° ±45° ±50°
0.5 mm -70° to -20°, -5° to +55° ±55° ±50°
1.0 mm -70° to -20°, -5° to +55° ±55° ±30°
BL-780/781 0.32 mm -60° to -20°, -5° to +45° ±20° ±15°
0.5 mm -70° to -20°, -5° to +50° ±40° ±50°
1.0 mm -70° to -20°, -5° to +50° ±50° ±50°
Measuring conditions
•
Bar code: KEYENCE standard bar code
• Reading distance: 230 mm (BL-700/701)
380 mm (BL-740/741)
500 mm (BL-780/781)
Note: The skew angle of -20° to -5° is the specular reflection range. In this range,
bar codes cannot be read, or reading error may occur. Be sure not to mount the
BL-700 series at the above skew angles.
Skew Pitch
Tilt
10°
0°
– +
0°
–
+
+
–
0°
Laser beam
