Chapter 4 Installing the Setup Software
4
UPC/EAN detail settings

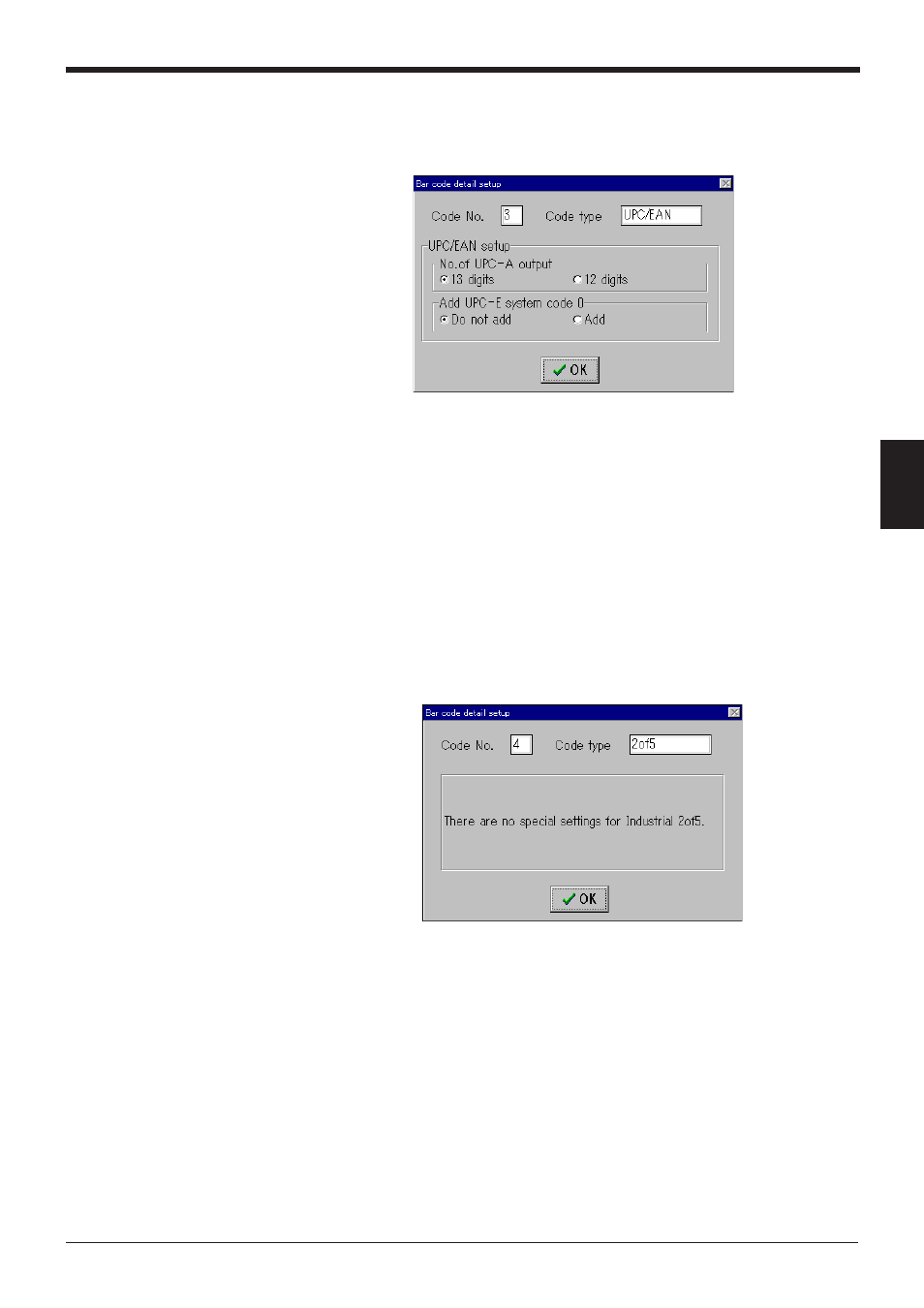

When “UPC/EAN” is set for any of the 4 codes in the bar code setting and then
[Detail] is clicked, the following screen appears.
1. “UPC-A output digits” sets whether the 13-digit or 12-digit output format is used
when reading the UPC-A data.
2. When “Yes” is set in “Add UPC-E system code [0]”, the BL-700 adds 0 to the
beginning of the system code and sends the code. (This parameter appears
only when “UPC-E” is set to enable reading in the bar code setting.)
* The check digit setting is not provided on the screen but the BL-700 calculates it
using the modulus 10/3 weight. (The data is sent.)
(Industrial) 2of5, COOP2of5 and CODE93 detail settings
When “2of5”, “COOP2of5” or “CODE93” is set for any of the 4 codes in the bar
code setting and then [Detail] is clicked, the following screen appears.
For industrial 2of5, COOP2of5, and CODE93, detail setting parameters are not
provided.
