M9038
MOV K100 D1
X0
MOV K1 D4
X0
MOV K0 D4
LD= D100 K3
MOV
END
K2 D100
MOV K2 D100

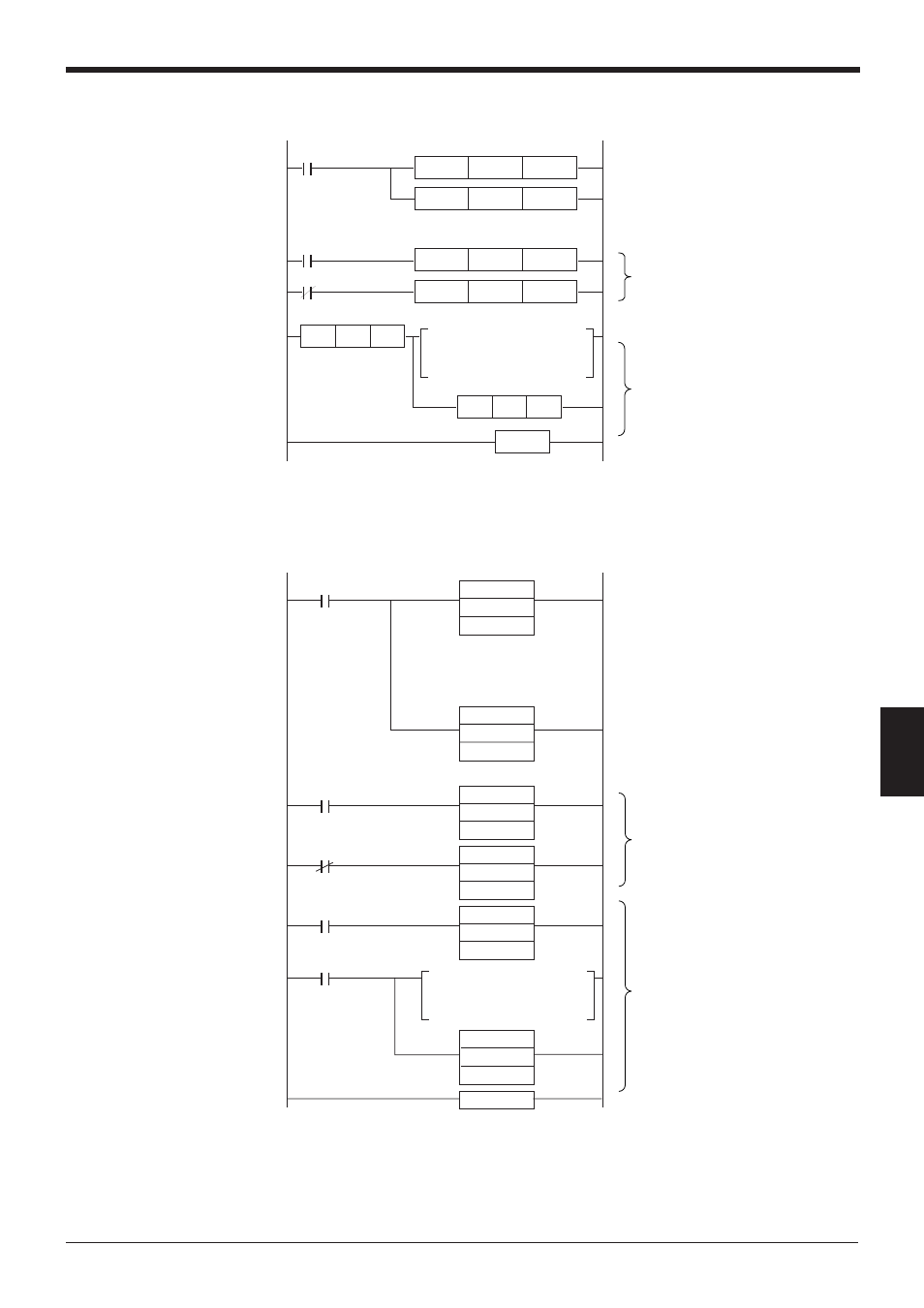

■ Program for the SYSMAC-C
25315 (A50015)
MOV
#0064
DM0000
0000
MOV
#0001
DM0004
0000
MOV
#0000
DM0004
25313 (A50013)
CMP
DM0100
#0003
25506 (A50016)
MOV
#0002
DM0100
END
MOV
#0002
DM0100
Data stored in DM0105
and subsequent areas is
processed.
Data stored in D105
and subsequent areas
is processed.
■ Program for the MELSEC-A Series
Specify the head address of the
data memory area.
(Enter “2” in the data memory flag.
Use sequential processing to
process the flag.)
Enter “X0” for the reading trigger
input.
When D100 becomes “3”, the
specified processing is performed.
After processing is completed,
enter “2” in D100.
Specify the head address of the
data memory area (DM100).
The BL-700 processes data as
binary data. Specify each DM
number in binary format.
(Enter “2” in the data memory
flag. Use sequential processing to
process the flag.)
Enter “0000” for the reading trigger
input. Enter “0000” for the reading trigger
input.
When DM0100 becomes “3”, the
specified processing is performed.
After processing is completed,
enter “2” in DM0100.
( ) Shows the value for CV Series.
