53
Chapter 4 Installing the Setup Software
4

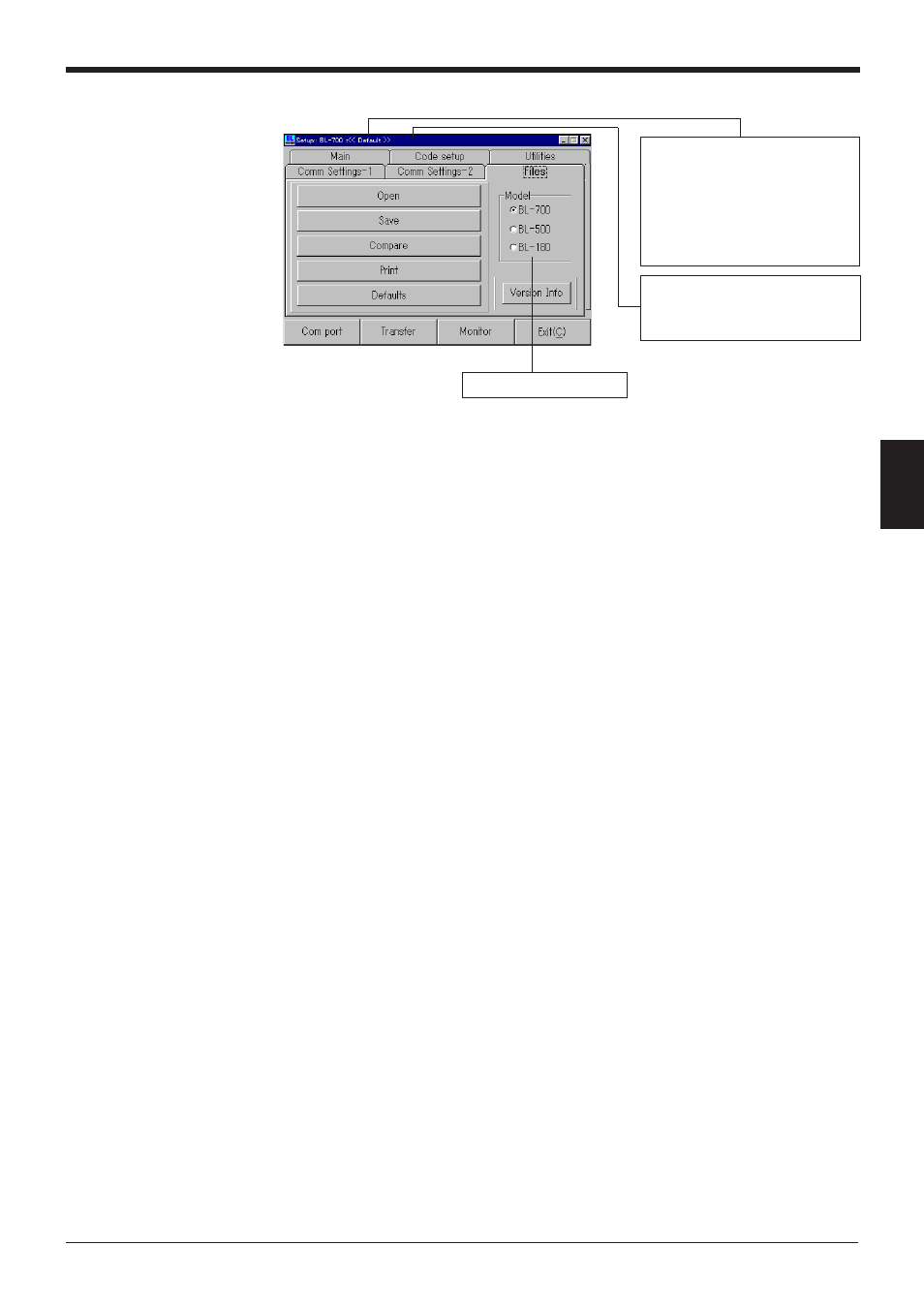

4.2.2 Description on each setup screen
Main (Operation setting:)
•
Read mode and its setup
• Data addition function
• Decoding match count
• Read error code
• Scanning method, trigger ON/OFF command
Comm Settings-1 (Communication parameters 1:)
•
Baud rate, data length, parity, stop bit
• RTS/CTS protocol
• Multi-drop, ID number
Comm Settings-2 (Communication parameters 2:)
•
Communication protocol
• Header and terminator
• PLC link settings
• Delimiter, semi-delimiter
Code setup (Bar code setting:)
•
Type of bar code to be read, number of digits
• Fixed-digit output function, label orientation function
Utilities:
•
OK/NG output ON time
• Preset data registration
Files...:
Saving, readout and printout of settings, selection of model
COM Port:
Sets the communication parameters (baud rate, etc.) of the host computer accord-
ing to the settings of the BL before communication starts between the BL and host
computer.
TRANSFER:
Sends updated settings to the BL, or reads the current settings of the BL.
MONITOR:
Checks if the BL can operate normally.
EXIT:
Quits the BL setup software.
Displays the name of the setup file
currently being edited. If the file has
been read from the setup file, the file
name is specified as “File: ...”. If the
file has been read from the BL, the
file name is marked with “BL”. If the
file name is the initial setting, “default”
is displayed.
If the file name has been changed
from the initial setting (the condition
immediately after it is read from the
file), “changed” is displayed.
Select the model to be set.
