KEYENCE BL-700 Series User Manual
Page 80
Chapter 4 Installing the Setup Software
66
4
CODE128 detail settings

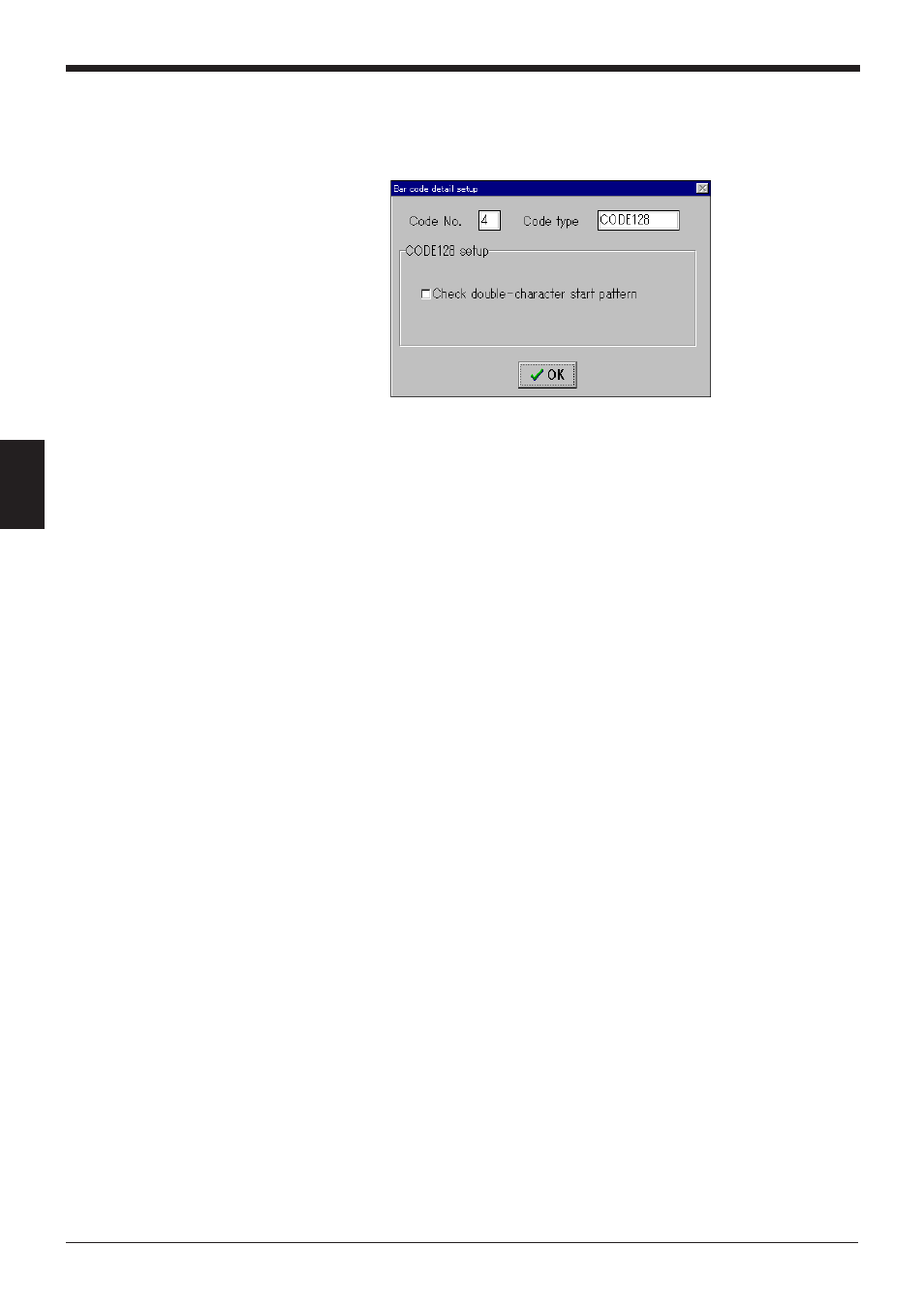

When “CODE128” is set for any of the 4 codes in the bar code setting and then
[Detail] is clicked, the following screen appears.
1. “Double character start pattern” is defined in the UCC/EAN-128 standard. This
is a combination of the start character (CODE-A to CODE-C) and FUN1 (func-
tion code 1). The UPC/EAN-128 bar code must start with the double character
start pattern.
If this is not set, the BL-700 will not be able to read the data.
*
The check digit setting is not provided on the screen but the BL-700 calculates it
using the modulus 103 weight. (The data is not sent.)
