Chapter 3 Functions for Reading Operation
47
3

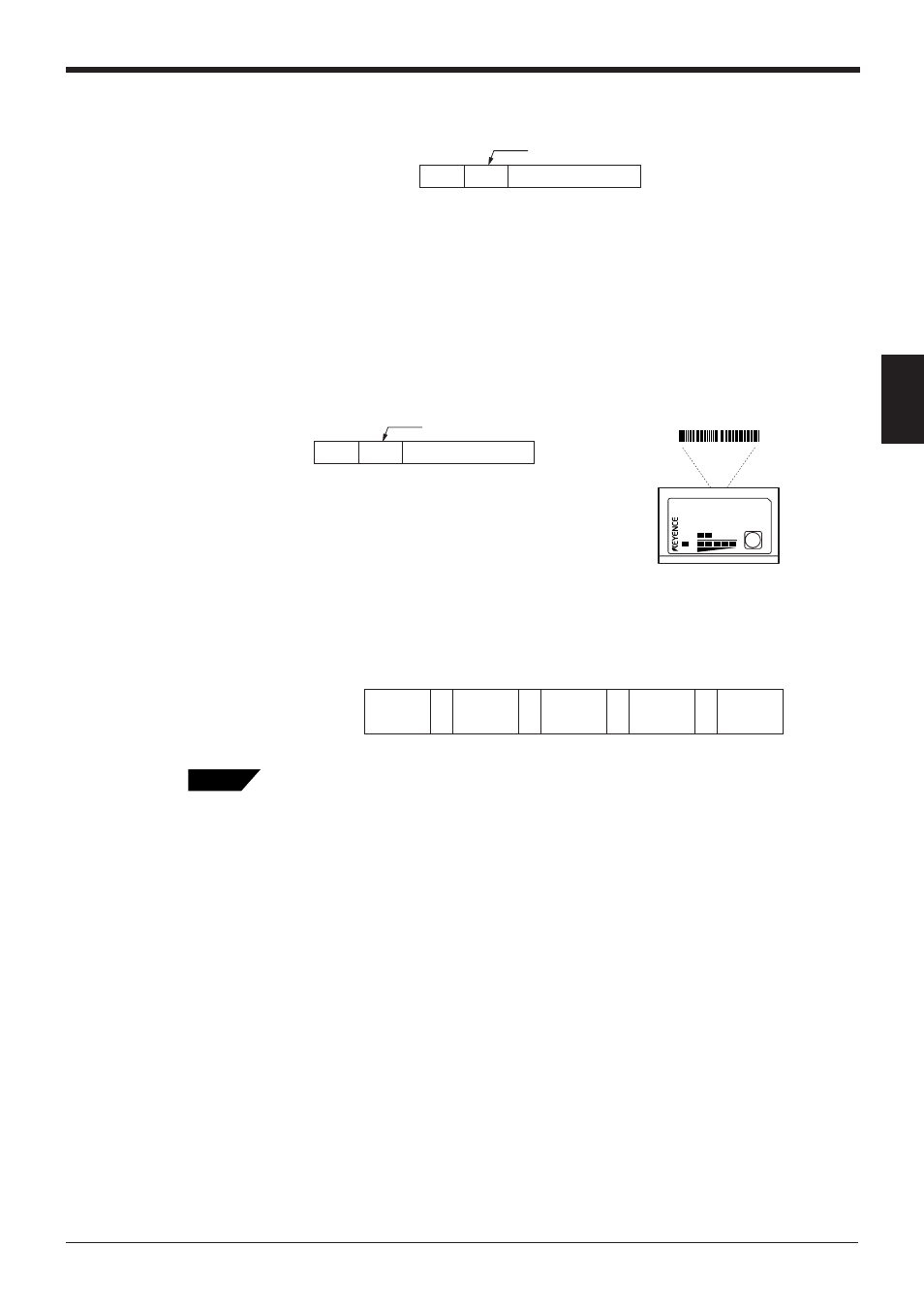

■ Code type add function
Adds the bar code type before the readout data .
■ Label orientation add function
Adds the orientation of bar code travel before the readout data.
* If an read error occurs, this information is not added.
Order of additional information
If you select to include all the additional information functions, they appear in the
following order:
You can change the delimiter as desired (one character), except the delimiter of the scan
count.
Readout data t :
Delimiter
t = 0 : CODE39
1 : ITF
2 : Industrial 2of5
3 : Codabar
4 : EAN/UPC (A•E)
5 : CODE 128
6 : COOP 2 of 5
7 : Read error
8 : CODE93
Readout data r :
Delimiter
4 9 0 0 0 0 0 0
4 90 00 00 0
Reverse
orientation
LASER ON
STB
OK/NG TIMING
TEST
BL-700
Forward
orientation
r = F : Forward
R : Reverse
Code type
Readout
data
Scan
count
Decode
match count
Label
orientation
: : : :
Tips
