E D D Y C U R R E N T B R A K E I N S T A L L A T I O N
Eddy Current Brake Installation
Version 7
In Ground Model 424x/424xLC
2
Automotive Dynamometer Installation Guide
4-7
I
NSTALLING
THE
B
EARING
, S
PLINE
S
HAFT
,
AND
D
RIVELINE
A
SSEMBLY
The eddy current brake can be installed on either side of your dyno, the installation
instructions are the same.
You will need the following parts:
• 22117130
Splined Shaft Assembly
• 32355056
Bearing
• 36801080
Bolt, 1/2-13 x 1.5", Flange-Hex (2)
• 62240130
Driveline Assembly
1
Install the bearing using two 1/2-13 x 1.5-inch flange-hex bolts. Leave the bolts
loose.

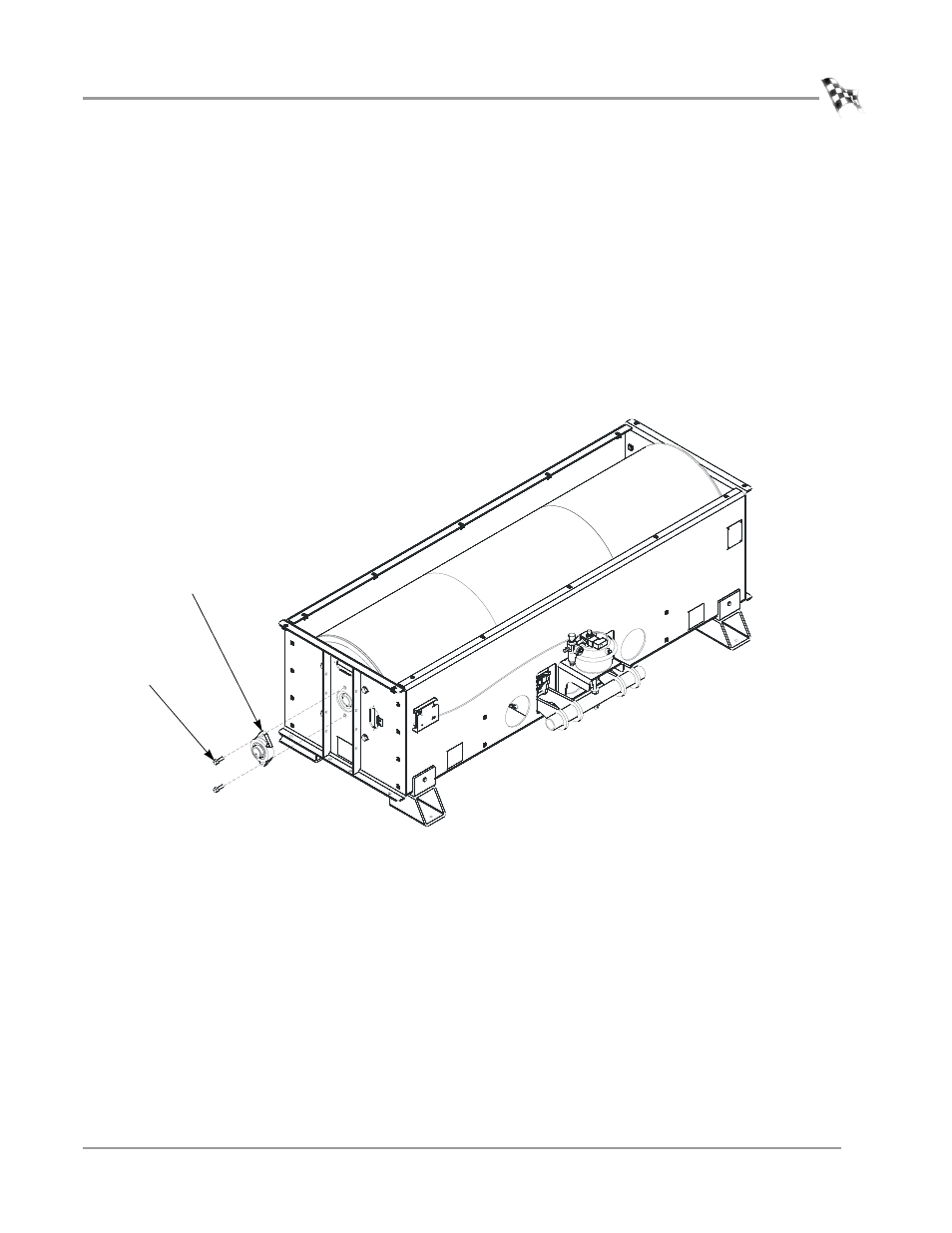

Figure 4-7: Install the Bearing
EB160
bearing
bolt
