B A S I C D Y N O O P E R A T I O N
Preventative Maintenance
Version 7
In Ground Model 424x/424xLC
2
Automotive Dynamometer Installation Guide
5-15
D
YNOS
WITH
4WD A
TTACHMENT
—T
HINGS
TO
C
HECK
• Check the hydraulic motor fluid once every six months, fill as necessary.
• Remove the cap on the hydraulic motor.
• Add additional AW-68 hydraulic fluid as needed.
• Replace the cap.

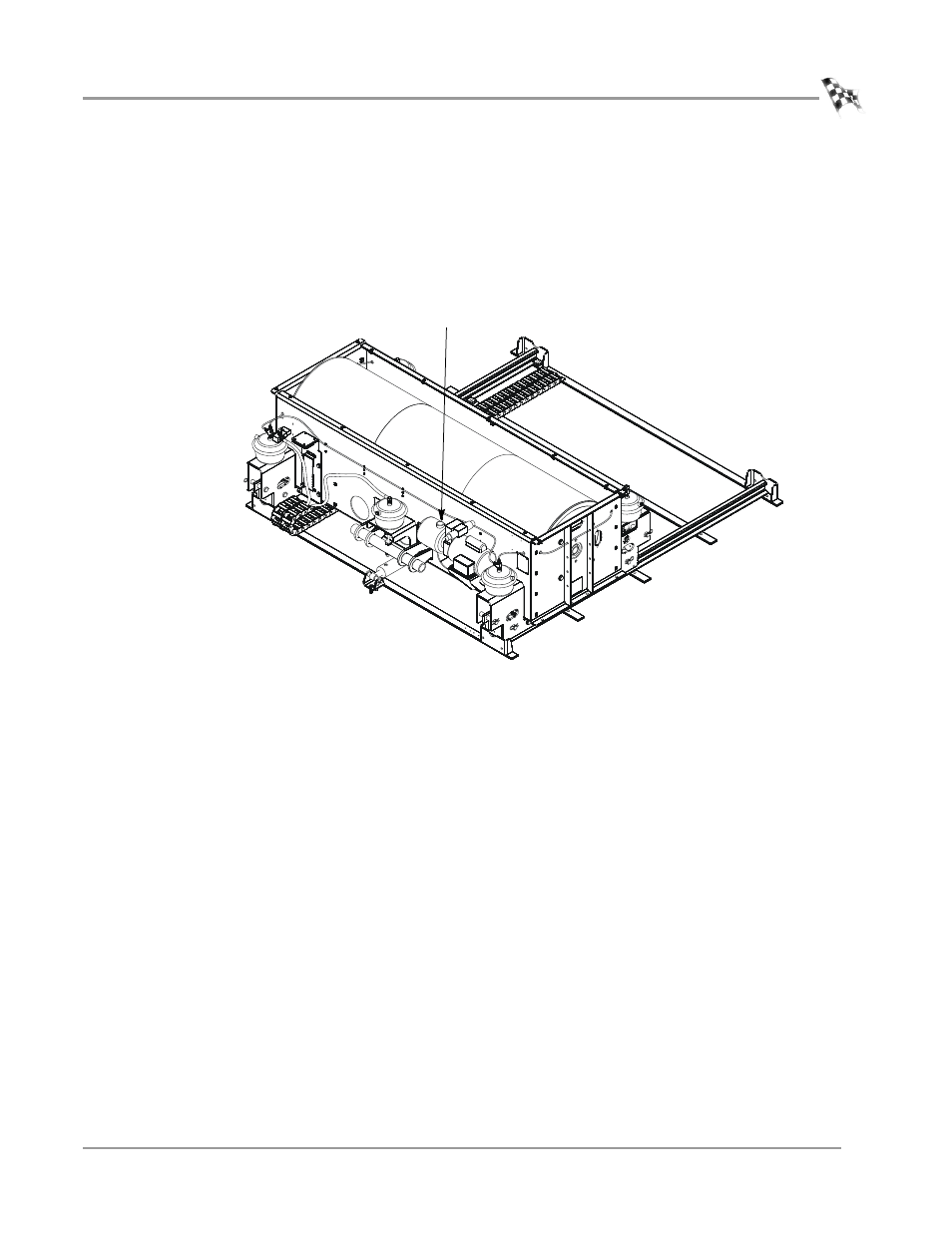

Figure 5-9: Fill the Hydraulic Motor with Oil
• Inspect the hoses connecting the hydraulic motor to the ram. Replace as necessary
(P/N 11100000).
• Inspect the 4WD dyno movement rails for debris once per month. Clear any debris
from the rails.
AD393
remove cap on
hydraulic motor
