In Ground Model 424x/424xLC

2

Automotive Dynamometer Installation Guide

C H A P T E R 1
Dynamometer Specifications and Requirements

1-6

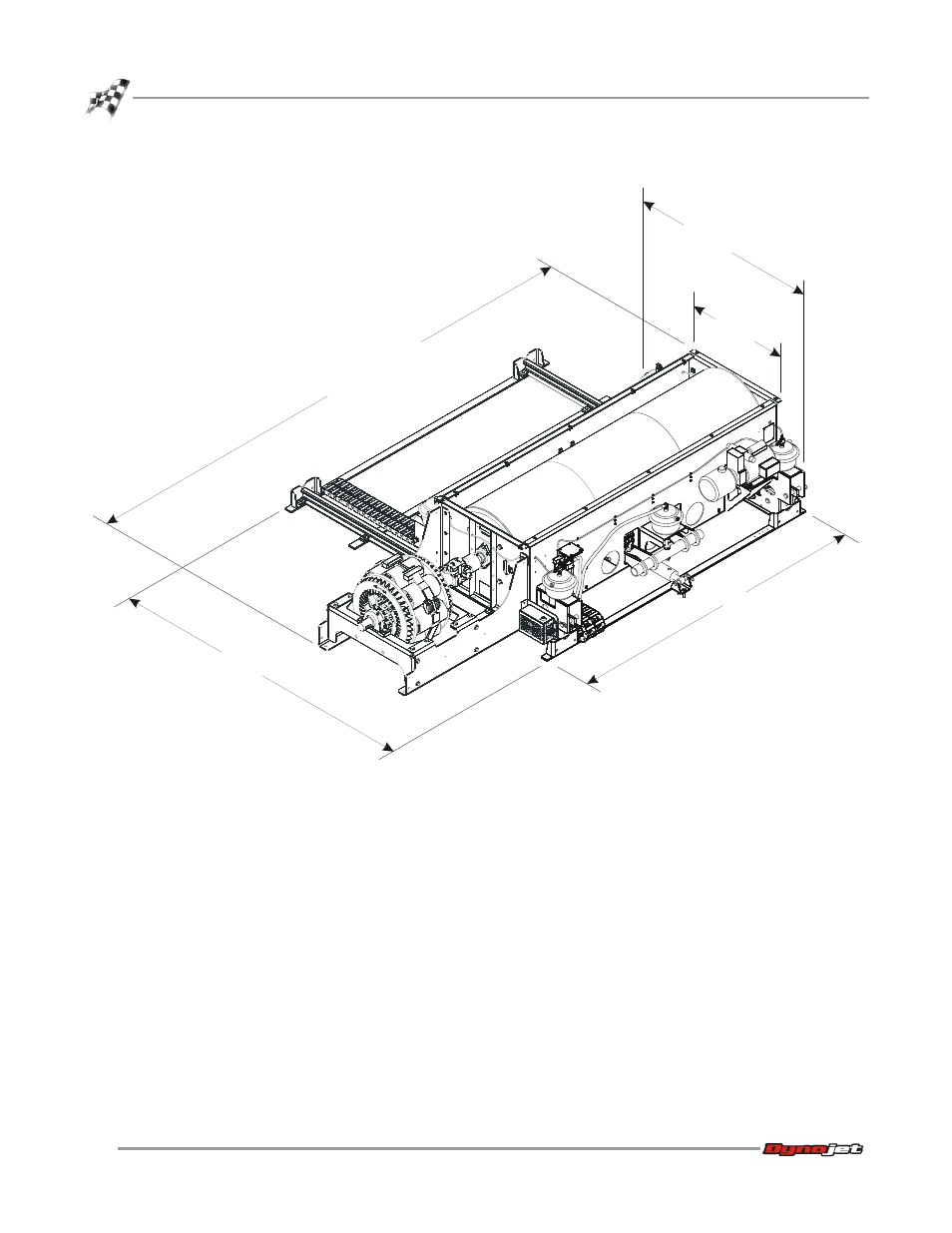

Figure 1-2: Model 424 4WD with Track Assembly Dimensions

AD375

218.44 cm (86.00 in.)

dyno frame only

321.23 cm (123.47 in.)

frame and brake

130.18 cm (51.25 in.)

frame and cradle assembly

73.66 cm

(29.00 in.)

frame

218.44 cm (86.00 in.)

track

234.32 cm (92.25 in.)

track
