4 W D D Y N O I N S T A L L A T I O N

Dyno Installation

Version 7

In Ground Model 424x/424xLC

2

Automotive Dynamometer Installation Guide

3-11

5

Secure the rail clamps to the cradle assembly on the dyno using two 3/8-inch
shoulder bolts and two spacers each.

6

Replace the pins and cotter pins removed earlier from the four cradle assemblies
as shown in Figure 3-6.

7

Move the rail clamps up and down and verify they move freely.

8

Roll the dyno back and forth and verify the rail clamps are not binding and the
track assembly is square.
Note: For clarity, the pit and stationary dyno are not shown.

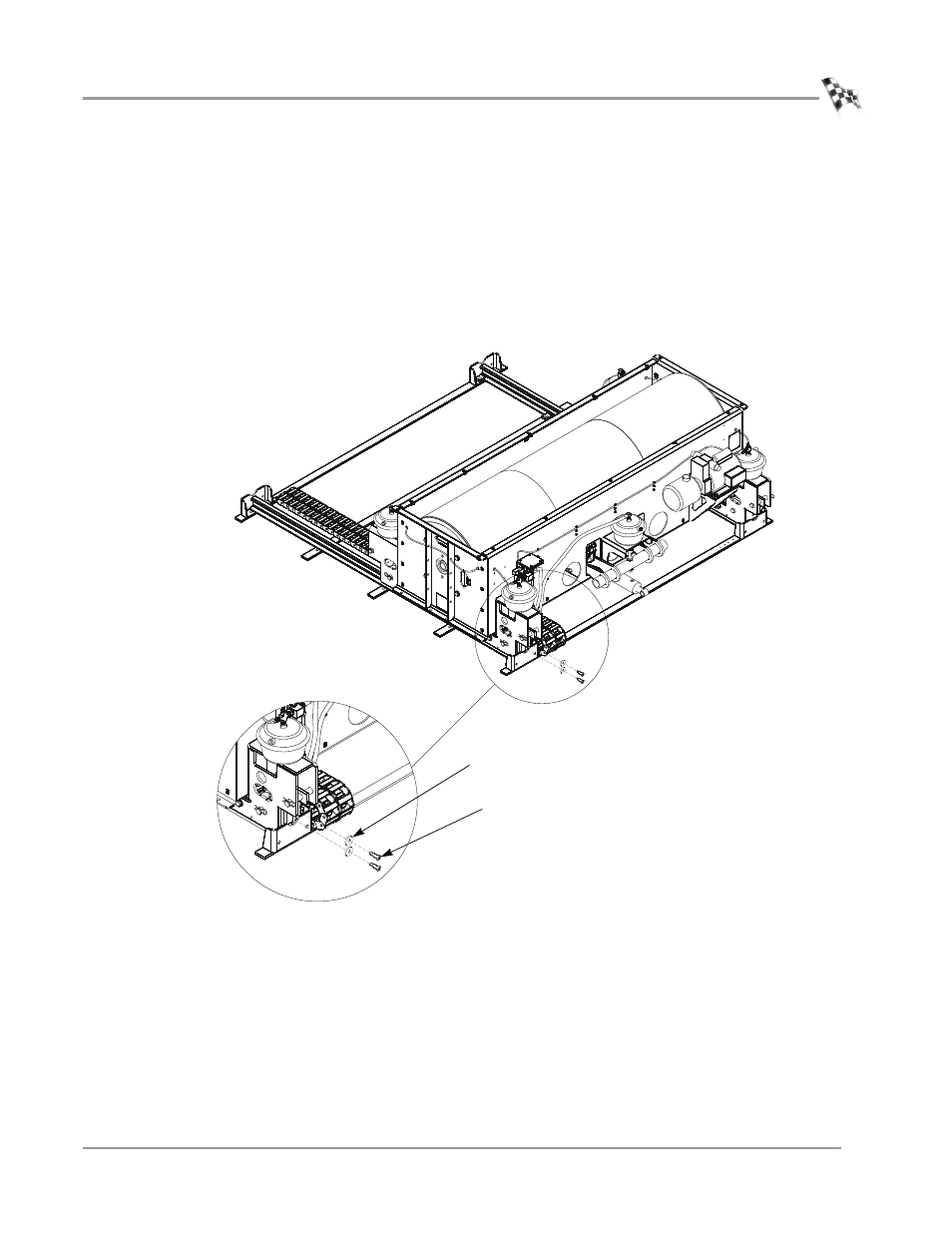

Figure 3-7: Secure Dyno to Rail Clamps

I

NSTALLING

THE

E

DDY

C

URRENT

B

RAKE

Refer to Chapter 4 for eddy current brake installation instructions and install your
eddy current brake at this time.

AD353

spacer

bolt
