S P E C I F I C A T I O N S A N D O P E R A T I N G R E Q U I R E M E N T S
Dynamometer Specifications and Requirements
Version 7 In Ground Model 424x/424xLC 2 Automotive Dynamometer Installation Guide
1-5

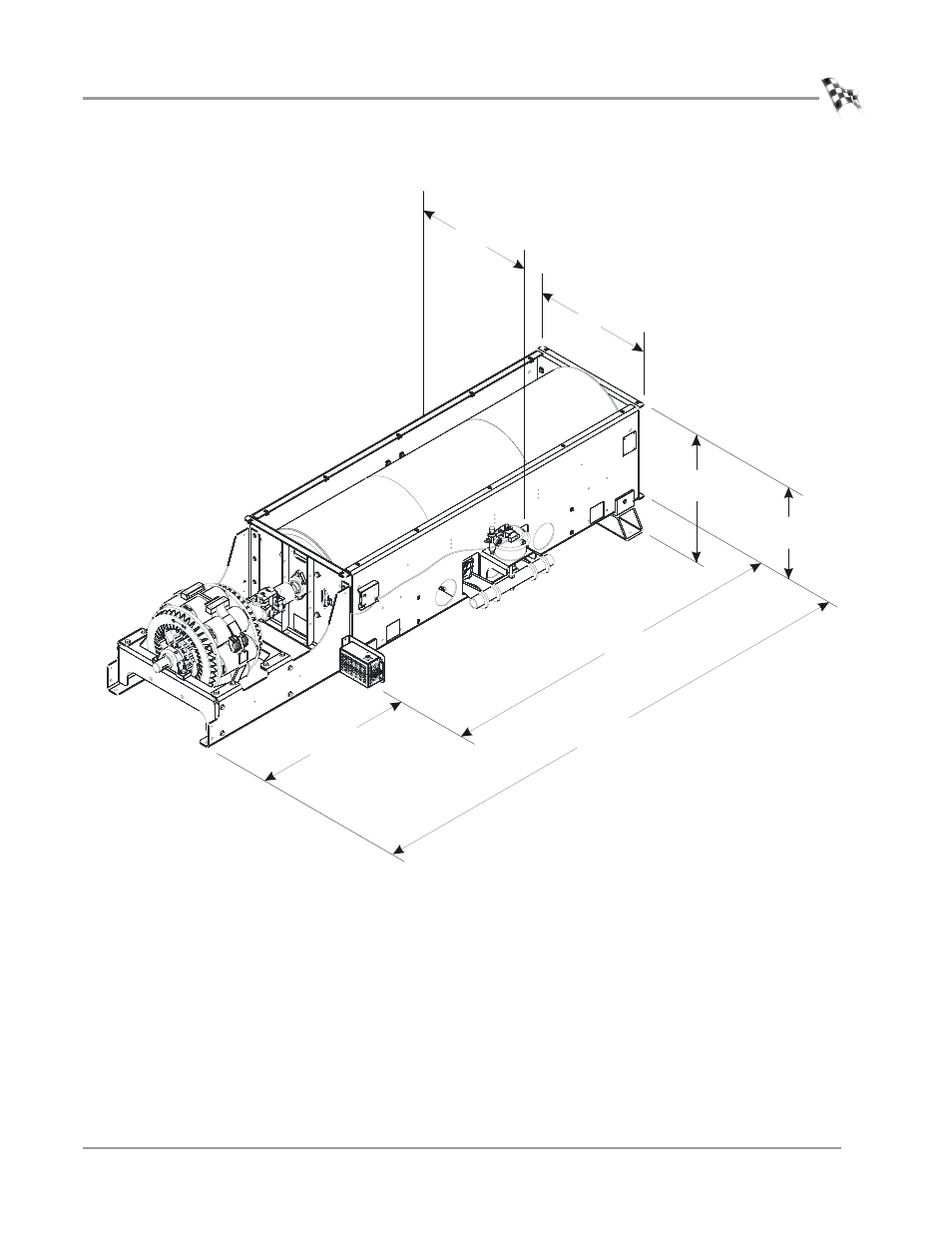

Figure 1-1: Model 424 Stationary Dyno Dimensions
AD129
73.66 cm (29.00 in.)
72.07 cm (28.375 in.)
frame to floor
218.44 cm (86.00 in.)
frame only
321.23 cm (126.47 in.)
frame and eddy current brake
106.93 cm (42.10 in.)
eddy current brake
93.83 cm (36.94 in.)
frame and air brake assembly
58.42 cm (23.00 in.)
frame only
